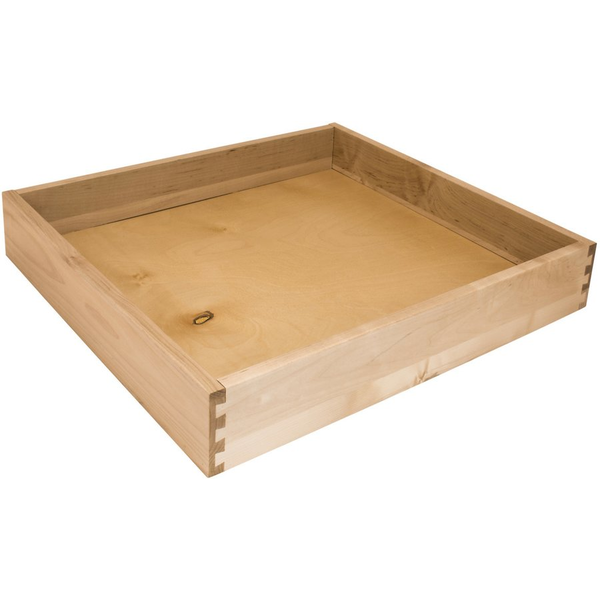

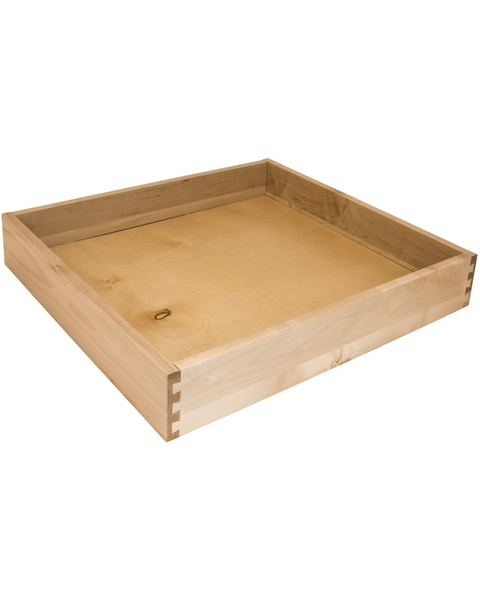

19-5/8 Inch Width x 3-1/2 Inch Height Face Frame Rollout Tray for 24 Inch Cabinet Width, Maple
Product Discontinuation AlertThis item has left our catalog. It's either upgraded to a newer model, didn't meet our high customer satisfaction standards, or the manufacturer said goodbye. But don't worry, CabinetParts is always here with top-notch alternatives.All the product info you could ask for...
-
Size Info
- Ordering Suggestions : Step 1: Pick the correct rollout tray. Tip: The size listed is the outside cabinet width and there is an option for Face Frame or Frameless in each cabinet width. Step 2: Coose your drawer slide. Tip: Order 1 pair of drawer slides and the needed clips for each rollout tray. Step 3: Choose your pilaster system. Tip: Order 1 Pilaster kit for each cabinet.
- For cabinet width : 24 Inch
- Soft Close : 19-5/8 Inch Width x 19-5/8 Inch Width x 3-1/2 Inch Height Face Frame Rollout Tray for 24 Inch Height Cabinet Width - Maple
- Depth : 21-1/8 Inch
- Width : 19-5/8 Inch
- Height : 3-1/2 Inch
- Thickness : 5/8 Inch
-
Manufacturer Info
- Manufacturer : Hafele
- Manufacturer Part # : 557.59.117
-
Other Important Info
- Product Type : Base Cabinet Tray
- Material : Maple
- Finish : Maple
- Key Features : Dovetail construction
- Cabinet Application : Face Frame
- Version : Face Frame
- Includes : (1) Base Cabinet Rollout Tray
Manufacturer Resources
Choose One (Required): Grass Dynapro or Salice Futura 16 Drawer Slides
Dynapro 2-D 21 inch Soft-Close Slide
21 Inch Length Futura 16 Soft and Silent Concealed Undermount Slide Full Extension 533mm Grass Rear Mounting Brackets (Required For Face Frame Installation)
Non-Handed Rear Mounting Bracket-Sold Each Clips For Salice Futura 16 (Required For Installation)
Clips for PUSH Concealed Undermount Slide Plastic, Gray Salice Rear Mounting Brackets (Required For Face Frame Installation)
Mounting Bracket for Undermount Face Frame Cabinets Steel Optional Accessories For Salice
6-Way Adjustable Clips For Undermount Slide Plastic, Black
(2) Clips for Undermount Narrow Drawers Plastic, Black Pilaster Systems For Face Frame (Required For Installation)
Pilaster Quick Tray Supports with 5/16 Inch Standoff for Face Frame Cabinet, White
Pilaster Quick Tray Supports with 5/16 Inch Standoff for Face Frame Cabinet, Cream Pilaster Systems For Frameless (Required For Installation)
Pilaster Quick Tray Supports with 1/4 Inch Standoff for Frameless Cabinet, White
Pilaster Quick Tray Supports with 1/4 Inch Standoff for Frameless Cabinet, Cream Other - Base Cabinet Organizers by Hafele
-
