Lighting for Cabinets and Furniture LED Cabinet Lighting LED Stick Lighting for Under Cabinets FlexSheet-LED Flat Panel Lighting By Hera Lighting
Loading from Primary Photo

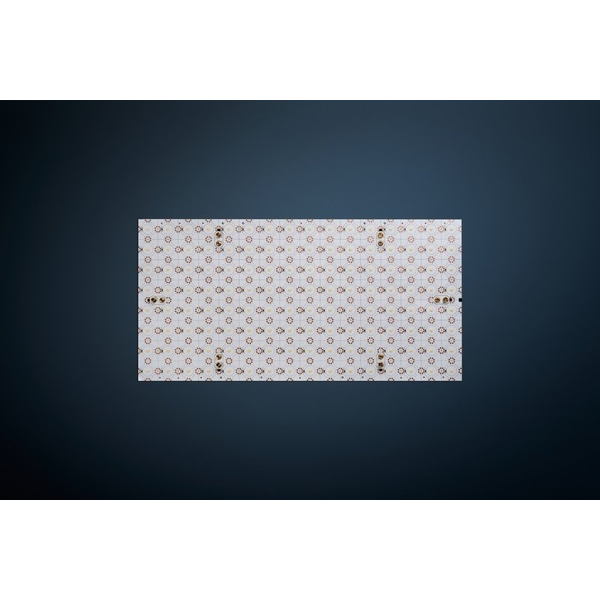

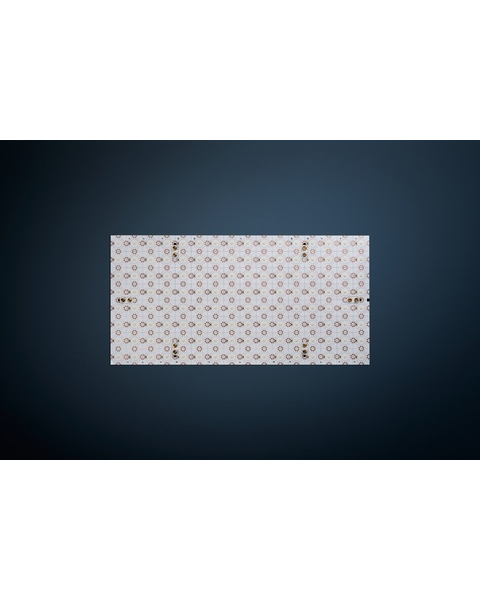

FlexSheet-LED Flat Panel Lighting, Standard 1760 Lumen Light Output, 10 x 20 Inch, 24V, 16W Per Panel, 4000K Cool White

  Rating 4.9 | 15 Reviews in the past 24 months | Our Item Number HRS-FSL-1020-4000-HE

FlexSheet-LED is a flexible LED sheet easily cut along grid marks to create custom sizes and shapes. The flexibility of FlexSheet-LED also allows for easy installation on curved surfaces. It can be tiled together to illuminate large surface areas. FlexSheet-LED is the perfect way to backlight graphics, storefronts, columns, walls, signage, and other applications.

$
105.37 Each
$131.71
SAVE 20%
Ends Jul 18

Color Temperature:

Version:

Need Help? Contact Us Now
Product Info Length: 10 Inch, Width: 20 Inch, Product Finish: White, Power: 16W, Light Output: 1760 Lm, See more product details
Qty:       Each


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Length : 10 Inch
  • Width : 20 Inch
  • Key Features : Flexible LED sheet with integrated 24 Vdc LED diodes
    Available in 16W standard output and 32W high output versions
    LED grid is 1-1/4 Inch x 1-1/4 Inch

  • Manufacturer Info

  • Manufacturer : Hera Lighting
  • Manufacturer Part # : FSL/1020/4000/HE
  • Manufacturer Finish : White

  • Other Important Info

  • Product Type : Flat Panel Lighting
  • Color Temperature : 4000K Cool White
  • Product Finish : White
  • Power : 16W
  • Light Output : 1760 Lm
  • Efficacy : >125 Lm/W
  • Lifespan : 40,000 Hours
  • CRI : >80
  • Output : 16W Standard
  • Use With : 24 Vdc Constant Voltage Driver
  • Model : FlexSheet-LED
  • Optional Accessories : STICKPSDIM/S, DIMCONTROL/EURO, STICKDIM/YCABLE, RCPSDIM/V2, PS24V/SWITCH/RS/H, PS24V/SWITCH/RS/DC1224/H, PS24V/SW/OC, IRSWITCH/H, IRSWITCH/H/D
  • Version : Standard

  • Manufacturer Resources
