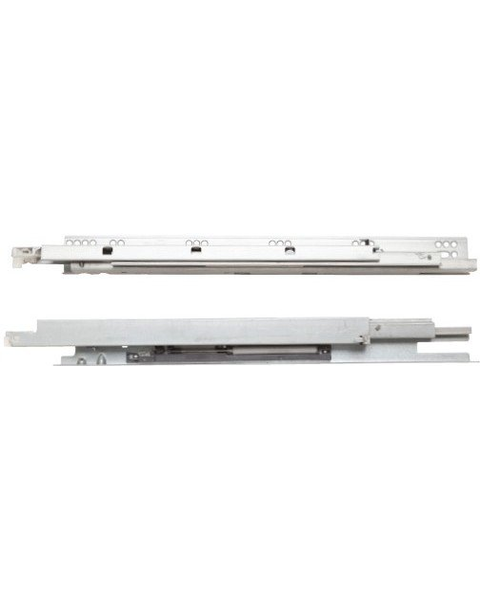

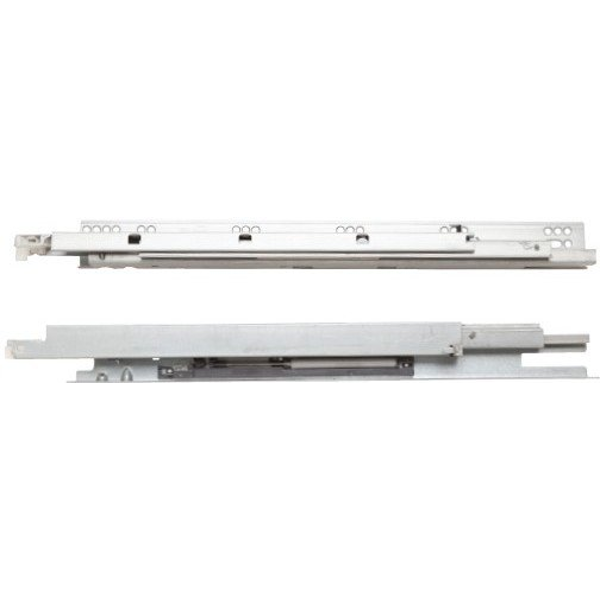

12 Inch GS2070 Soft-Closing Undermount Drawer Slides

Product Discontinuation AlertThis item has left our catalog. It's either upgraded to a newer model, didn't meet our high customer satisfaction standards, or the manufacturer said goodbye. But don't worry, CabinetParts is always here with top-notch alternatives.


All the product info you could ask for...

  • Size Info

  • Slide Length : 12 Inch
  • Drawer Material Thickness : 1/2 to 5/8 Inch
  • Hole Pattern : 32 mm
  • Product Height : 1-13/16 Inch (45.6 mm)
  • Key Features : Three dimensional front release lever adjustment. In-Out, Side-to-Side and Height Adjustments
  • Application : Wood residential and commercial futniture, drawers requiring concealed slides or soft-close feature

  • Manufacturer Info

  • Manufacturer Series Name : GS2070
  • Manufacturer : CP-Exclusive Knape and Vogt
  • Manufacturer Part # : KVGS-2070AB 12

  • Other Important Info

  • Product Type : Drawer Slide
  • Close Type : Soft Closing
  • Mount Type : Undermount
  • Disconnect : Lever Release
  • Face-Frame Mounting : Yes
  • Sliding Type : Roller Bearing
  • Travel : Full Extension
  • Product Finish : Zinc
  • Max Load : 75 lbs
  • Warranty : Limited Lifetime Warranty

  • Manufacturer Resources

Back to Top
back to top

Our customers say Knape and Vogt products...

  4.1 out of 5
based on 29 ratings

"These reviews are from our customers who have purchased Knape and Vogt products."
  • 5 of 5 Exactly what I was looking for June 3rd, 2026
    by Peter from New York, NY

    (no comment given)

    This review is about similar Knape and Vogt Drawer Slides. (KV-MUVB21)

    Was this review helpful? yes no

  • 5 of 5 Smooth Operator July 29th, 2025
    by Jamie from Eden Prairie, MN

    The price was right, and the product was delivered on time in bombproof packaging. As someone who believes that shipped items need to be in completely weatherproof packaging, cabinetparts.com more than delivered. I did cut myself while getting the package open, but that’s a me problem, not a you problem. I should have used my good knife. Serious packaging demands serious extraction tools. I would say lesson learned, but that hand has a number of scars from previous misjudgements. But I digress... Thank you. My underwear drawer is gliding smoothly once again.

    This review is about similar Knape and Vogt Drawer Slides. (KV-1175P-ZC-22-58)

    Was this review helpful? yes no

  • 16 of 17 people found the following review helpful
    4 of 5 KV MU:V+ undermount soft-close slides November 12th, 2017
    by Terry from Richland, WA

    The slides are great, smooth and excellent operation 5 star. The instructions for installation however were lacking and the graphics were overly busy (2 star). No where in the instructions could I find where it was necessary to mount the rear brackets 7/16 off-set from the opening line. And nowhere in the instructions did it mention that there was a left/right rear adjustment capability. For a first time installer, having to use the hit and miss, try it again method added to the angst that was already present, you know, for a first time installer.

    This review is about similar Knape and Vogt Drawer Slides. (KV-MUV34B20)

    Was this review helpful? yes no

  • 14 of 16 people found the following review helpful
    4 of 5 Great product May 18th, 2016
    by Michael from Mantua, NJ

    Glides work as advertised, very well built. 4 stars instead of 5 due to the fact of lack of installation instructions (easily found online), also the need to purchase seperartly rear mounting brackets, they are inexpensive but in my opinion should be proceed. There are also no mounting screws provided.

    This review is about similar Knape and Vogt Drawer Slides. (KV-MUVB21)

    Was this review helpful? yes no

  • 9 of 10 people found the following review helpful
    4 of 5 Nice but poor installation instructions May 5th, 2015
    by Eric from Snohomish, WA

    I like everything about these slides except for the fact that there are no installation instructions. I went to KV's website and downloaded what they have however they are far from complete.

    This review is about similar Knape and Vogt Drawer Slides. (KV-MUVB16)

    Was this review helpful? yes no
