Drawer Slides (glides) Undermount Drawer Slides MuV+ Soft-Close Undermount Drawer Slides by Knape and Vogt
Loading from Primary Photo

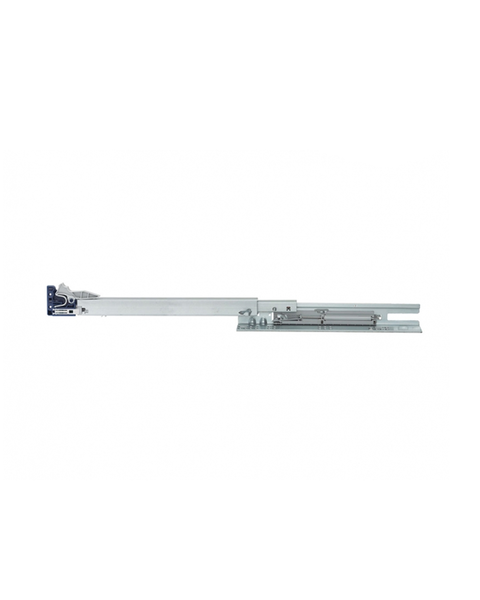

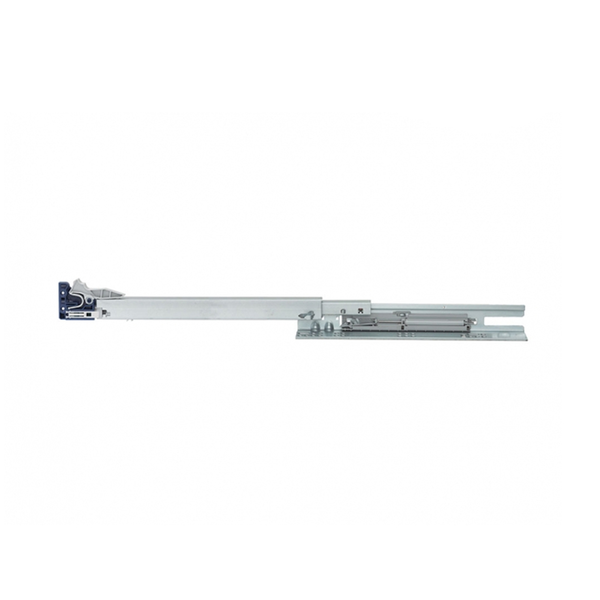

18 Inch MuV+ Soft-Close Undermount Drawer Slide for 5/8 Inch to 3/4 Inch Drawer Material Thickness

  Rating 4.2 | 28 Reviews in the past 24 months | Our Item Number KV-MUV34B18

$
23.11 Pair
$22.42/ea for 3 $21.95/ea for 6 $20.80/ea for 12
$33.01
SAVE 30%
Ends Jun 30

Slide Length:

Drawer Material Thickness:

Max Load:

Need Help? Contact Us Now
Product Info Hole Pattern: 32mm, Slide Length: 18 Inch, Mount Type: Undermount, Disconnect: Lever Release, Face-Frame Mounting: Yes, See more product details
Qty:       Pair


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Hole Pattern : 32mm
  • Product Height : 1-7/8 inch (47.6mm)
  • Slide Length : 18 Inch
  • Drawer Material Thickness : 5/8 Inch to 3/4 Inch

  • Manufacturer Info

  • Manufacturer Series Name : MuV+34
  • Manufacturer : CP-Exclusive Knape and Vogt
  • Manufacturer Part # : MUV34AB 18

  • Other Important Info

  • Mount Type : Undermount
  • Disconnect : Lever Release
  • Face-Frame Mounting : Yes
  • Sliding Type : Roller Bearing
  • Travel : Full Extention
  • Product Finish : Zinc
  • Max Load : 75 Lbs
  • Warranty : Limited Lifetime Warranty
  • Key Attributes : As with all Knape & Vogt drawer slides, the MuV+ and MuV+34 are designed to meet or exceed ANSI performance standards as established by BIFMA, BHMA and KCMA.
  • Product Type : Drawer Slide
  • Close Type : Soft Closing

  • Manufacturer Resources

Back to Top
back to top

Our customers say Knape and Vogt products...

  4.2 out of 5
based on 28 ratings

"These reviews are from our customers who have purchased Knape and Vogt products."
  • 5 of 5 Exactly what I was looking for June 3rd, 2026
    by Peter from New York, NY

    (no comment given)

    This review is about a different size/color of this item. (KV-MUVB21)

    Was this review helpful? yes no

  • 16 of 17 people found the following review helpful
    4 of 5 KV MU:V+ undermount soft-close slides November 12th, 2017
    by Terry from Richland, WA

    The slides are great, smooth and excellent operation 5 star. The instructions for installation however were lacking and the graphics were overly busy (2 star). No where in the instructions could I find where it was necessary to mount the rear brackets 7/16 off-set from the opening line. And nowhere in the instructions did it mention that there was a left/right rear adjustment capability. For a first time installer, having to use the hit and miss, try it again method added to the angst that was already present, you know, for a first time installer.

    This review is about a different size/color of this item. (KV-MUV34B20)

    Was this review helpful? yes no

  • 14 of 16 people found the following review helpful
    4 of 5 Great product May 18th, 2016
    by Michael from Mantua, NJ

    Glides work as advertised, very well built. 4 stars instead of 5 due to the fact of lack of installation instructions (easily found online), also the need to purchase seperartly rear mounting brackets, they are inexpensive but in my opinion should be proceed. There are also no mounting screws provided.

    This review is about a different size/color of this item. (KV-MUVB21)

    Was this review helpful? yes no

  • 9 of 10 people found the following review helpful
    4 of 5 Nice but poor installation instructions May 5th, 2015
    by Eric from Snohomish, WA

    I like everything about these slides except for the fact that there are no installation instructions. I went to KV's website and downloaded what they have however they are far from complete.

    This review is about a different size/color of this item. (KV-MUVB16)

    Was this review helpful? yes no

  • 5 of 6 people found the following review helpful
    5 of 5 NO INSTRUCTIONS July 8th, 2014
    by Roger from Winnetka, CA

    It's a good thing this was a replacement. Without an old one being installed I never would have figured out how to install it. Product itself is great and works fine.

    This review is about a different size/color of this item. (KV-MUVB21)

    Was this review helpful? yes no
