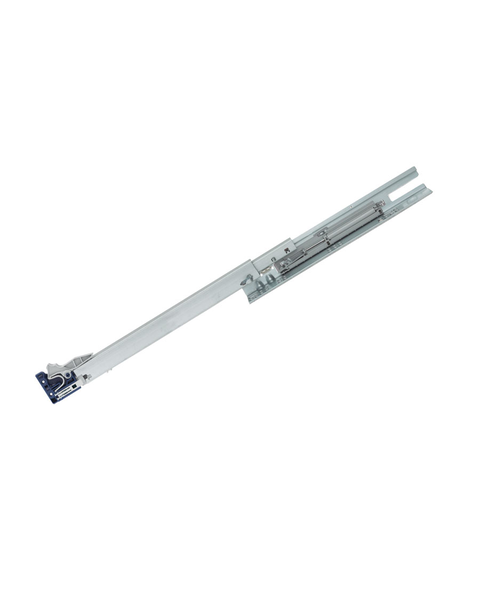

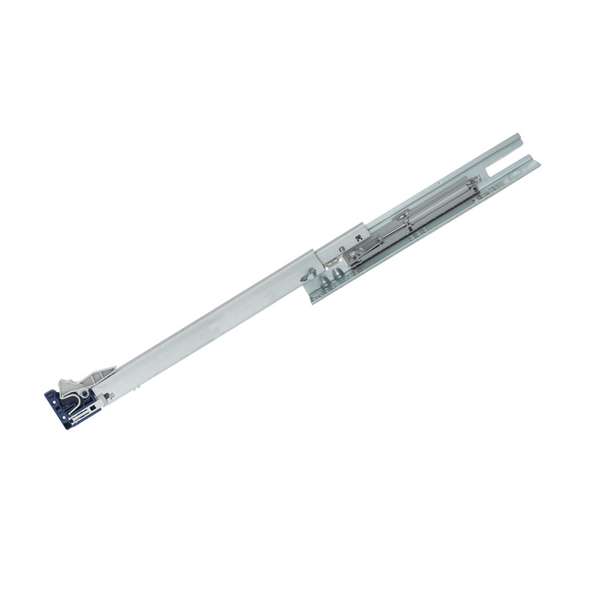

16 Inch MuV+ Soft-Close Undermount Drawer Slide for 1/2 Inch to 5/8 Inch Drawer Material Thickness
Ends Jun 30
Slide Length:
Drawer Material Thickness:
Max Load:
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Product Height : 1-7/8 inch (47.6mm)
- Slide Length : 16 Inch
- Drawer Material Thickness : 1/2 Inch to 5/8 Inch
- Hole Pattern : 32mm
-
Manufacturer Info
- Manufacturer : CP-Exclusive Knape and Vogt
- Manufacturer Part # : MUVAB 16
- Manufacturer Series Name : MuV+
-
Other Important Info
- Product Finish : Zinc
- Max Load : 75 Lbs
- Warranty : Limited Lifetime Warranty
- Key Attributes : As with all Knape & Vogt drawer slides, the MuV+ and MuV+34 are designed to meet or exceed ANSI performance standards as established by BIFMA, BHMA and KCMA.
- Product Type : Drawer Slide
- Close Type : Soft Closing
- Mount Type : Undermount
- Disconnect : Lever Release
- Face-Frame Mounting : Yes
- Sliding Type : Roller Bearing
- Travel : Full Extention
Manufacturer Resources
Release Levers
Accessories
Other - MuV+ Soft-Close Undermount Drawer Slides by Knape and Vogt
Our customers say Knape and Vogt products...
based on 28 ratings
- 9 of 10 people found the following review helpful
4 of 5 Nice but poor installation instructions May 5th, 2015
by Eric from Snohomish, WAI like everything about these slides except for the fact that there are no installation instructions. I went to KV's website and downloaded what they have however they are far from complete.
- 1 of 1 people found the following review helpful
4 of 5 That's good stuff July 1st, 2019
by Steve from SEATTLE, WAAs others have noted - lack of instructions prevented a five star rating. However, the slides work well, and virtually rival the Blum undermount units - still the best from my experience - and are smoother than the Accuride undermount slides. But... as KV offers a greater selection of drawer box depths than either Grass or Blum, here I am; and was not disappointed.
- 4 of 5 Worked Great February 2nd, 2019
by michael from whitehall, paIt wasn't a one for one swap out compared to what I was replacing but fit in great with a little massaging. Solid high quality slide. Thanks!
- 5 of 5 Exactly what I was looking for June 3rd, 2026
by Peter from New York, NY(no comment given)
This review is about a different size/color of this item. (KV-MUVB21)
- 16 of 17 people found the following review helpful
4 of 5 KV MU:V+ undermount soft-close slides November 12th, 2017
by Terry from Richland, WAThe slides are great, smooth and excellent operation 5 star. The instructions for installation however were lacking and the graphics were overly busy (2 star). No where in the instructions could I find where it was necessary to mount the rear brackets 7/16 off-set from the opening line. And nowhere in the instructions did it mention that there was a left/right rear adjustment capability. For a first time installer, having to use the hit and miss, try it again method added to the angst that was already present, you know, for a first time installer.
