Organizers Kitchen Organizers Pull Out Trash Cans Double Pull-Out Trash Containers 5149 Series Double Pullout Waste Containers by Rev-A-Shelf
Loading from Primary Photo

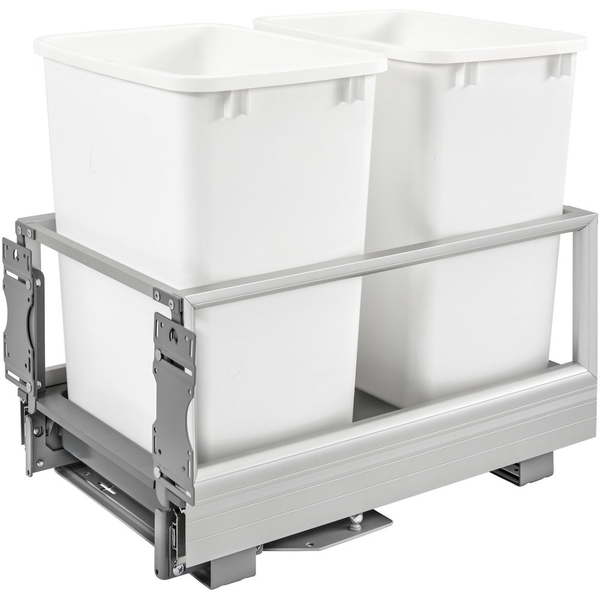

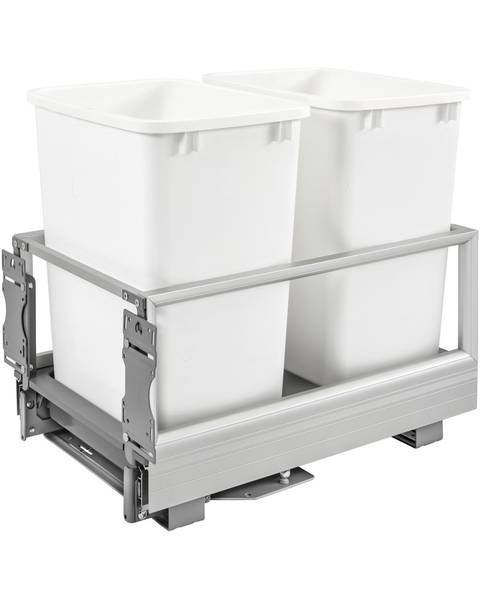

35 Quart Bottom Mount Double Trash Pull-Out Waste Container with Rev-A-Motion Slides, Min. Cabinet Opening: 14-1/2" Wide, White

  Rating 4.7 | 401 Reviews in the past 24 months | Our Item Number RV-5149-18DM-211

Rev-A-Shelf's 5149 series adds a pinch of luxury to your trash. The sleek anodized aluminum frame glides in and out on the patented soft-close slide system. Door mount brackets included and can adjust to almost any door style.

$
347.99
$444.99
SAVE 22%
Ends Oct 07
Free Shipping on Rev-A-Shelf - Orders $99+
Use Code REVASHELF2610 Expires 10/31/2026

Color:

Bin Capacity:

Need Help? Contact Us Now
Product Info Width: 14.19 Inch, Depth: 22 Inch, Height: 19.5 Inch, Bin Capacity: 35 Quart, Number of Containers: 2, See more product details
Qty:


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Minimum Opening for a Face Frame Cabinet : 14-1/2" Width x 22" Depth x 20" Height
  • Minimum Opening for a Frameless Cabinet : 14-5/16" Width x 22-1/4" Depth x 19-5/8" Height
  • Full Product Dimensions (Millimeters) : 360.426 mm W x 558.8 mm D x 495.3 mm H
  • Minimum Opening for a Frameless Inset Cabinet : Add 3/4 inch to depth of the "Minimum Opening for a Frameless Cabinet"
  • Width : 14.19 Inch
  • Depth : 22 Inch
  • Height : 19.5 Inch

  • Manufacturer Info

  • Manufacturer : Rev-A-Shelf
  • Manufacturer Part # : 5149-18DM-211

  • Other Important Info

  • Feature 1 : Rev-A-Motion provides a soft-open/soft-close feature
  • Fits or Designed for : Designed for a 15" cabinet with a 11.5" opening
  • Included optional Door Mount / Door Extender : Includes patented door mount kit included to fit almost any door style (US Patent # 8,939,526)
  • Bin Capacity : 35 Quart
  • Optional Accessories : Optional Rev-A-Shelf lids available, sold separately
  • Construction / Finish : Durable and easy to clean Polymer base
  • Installation : Assembled in the USA
  • Warranty : Limited Lifetime Warranty
  • Number of Containers : 2
  • Slides : Yes
  • Soft Close : Yes
  • Gas Assist : Yes
  • Category Groupings : Aluminum 15" BM Waste Container
  • Sub-Class : Base Cabinet
  • Ship Type : Small Parcel
  • Keywords : Kitchen, Cabinet Organization, Trash, Waste Containers,
  • All Features : Included: (2) White 35 quart waste containers with Brushed Aluminum frame and mounting hardware
    Slide Type: 150lb Full-Extension Ball-Bearing Slides w/Soft-Close
    Rev-A-Motion provides a soft-open/soft-close feature
    Designed for a 18" cabinet with a 14.5" opening
    Door mount brackets: Adjustable door mount brackets are included and required for operation
    Optional Rev-A-Shelf lids available, sold separately
    Construction: Heavy-duty Alumninum construction
    Assembled in the USA
    Limited Lifetime Warranty
  • Actual Product Width (Inches) : 14.19
  • Actual Product Depth (Inches) : 22
  • Actual Product Height (Inches) : 19.5
  • Actual Product Weight (lbs) : 21.1
  • Minimum Cabinet Frameless Opening (Inches) : 14.3
  • Actual Product Width (Millimeters) : 360.426
  • Actual Product Depth (Millimeters) : 558.8
  • Actual Product Height (Millimeters) : 495.3
  • Actual Product Weight (Kilograms) : 9.495
  • Minimum Cabinet Faceframe Opening (Millimeters) : 368.3
  • Minimum Cabinet Frameless Opening (Millimeter) : 363.22
  • Primary Color : White
  • Material Bre : Aluminum; Steel; Plastic
  • Product Type : Waste Containers
  • Weight : 21.093 lbs
  • Full Product Dimensions : 14.19"W x 22"D x 19.5"H
  • Product Series : W1 - 5149 Series
  • Color : White
  • Material : Aluminum
  • Country of Origin : Italy
  • Contains Wood : No
  • Material Breakdown : Aluminum; Steel; Plastic
  • Material Breakdown % : 65;10;25
  • Includes : (2) White 35 quart waste containers with Brushed Aluminum frame and mounting hardware
  • Slide Type : 150lb Full-Extension with Rev-A-Motion Soft-Close slide system (US Patent #8,091,971)

  • Manufacturer Resources

Back to Top
back to top

Our customers say Rev-A-Shelf products...

  4.7 out of 5
based on 401 ratings

"These reviews are from our customers who have purchased Rev-A-Shelf products."
  • 5 of 5 Terrific product. September 10th, 2026
    by Scott from Washington, DC

    The provided template made the install a breeze. I'm very happy with this product.

    This review is about a different size/color of this item. (RV514918DM217)

    Was this review helpful? yes no

  • 3 of 5 Better than other two container options? June 16th, 2026
    by Steve from Springboro, OH

    Bought this to replace a prior version/model that doesn't have the more solid base. Installing the door is always an exercise in getting lucky for measurements (pro tip: have your own roll of double sided tape to beef up the integrity of the placement before screwing it in/on). The one very noticeable negative is the force required to open the door, as the lever arm/piston is quite stiff. Product recommendation: make the strength of that adjustable. Currently worried about how much pull force it takes to open the door and having that rip off, but did reinforce its connection by re-using some fastener screws from the prior model (which happened to be the same size). For $347, I would have gladly paid a bit extra at that point to have an adjustable strength piston. Considering disconnecting the piston to reduce the torque the door has when pulling it open.

    This review is about a different size/color of this item. (RV51491527DM217)

    Was this review helpful? yes no

  • 5 of 5 Trash recepticle April 23rd, 2026
    by William from Sebring, FL

    Great product not the easiest in install, but a do it yourselfer shouldn’t have a problem

    This review is about a different size/color of this item. (RV514918DM217)

    Was this review helpful? yes no

  • 5 of 5 Perfect September 18th, 2025
    by Lee from Houston, TX

    I was extremely pleased with the prompt and efficient service from Cabinet Parts. The website was well organized and the buying process was simple. My Item arrived quickly and without any damage.

    This review is about a different size/color of this item. (RV514918DM217)

    Was this review helpful? yes no

  • 5 of 5 Trash cabinet insert September 2nd, 2025
    by Phyllis from Downers Grove, IL

    A great product! Good quality, sturdy and makes great use of an existing base cabinet remodel. Brings the kitchen up to date with having a space for garbage can and recycling hidden . Handyman who put it in was very impressed with the product. Glad I made this choice in choosing your company and product.

    This review is about a different size/color of this item. (RV514918DM217)

    Was this review helpful? yes no
