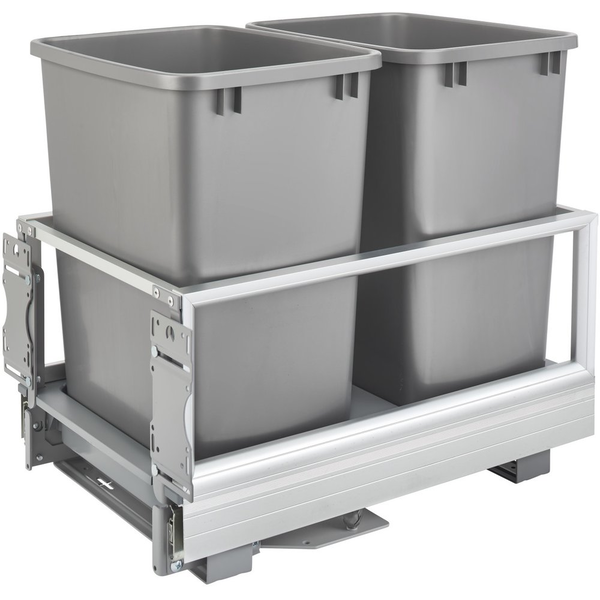

35 Quart Bottom Mount Double Trash Pull-Out Waste Container with Rev-A-Motion Slides, Min. Cabinet Opening: 14-1/2" Wide, Silver
Rating 4.7 | 398 Reviews | Our Item Number RV514918DM217
Rev-A-Shelf's 5149 series adds a pinch of luxury to your trash. The sleek anodized aluminum frame glides in and out on the patented soft-close slide system. Door mount brackets included and can adjust to almost any door style.
$
346.99 Set
$443.99
SAVE 22%
Ends Sep 01
Ends Sep 01
Free Shipping on Rev-A-Shelf - Orders $99+
Use Code REVASHELF2608 Expires 8/31/2026
Use Code REVASHELF2608 Expires 8/31/2026
Color:
Bin Capacity:
Need Help? Contact Us Now
Product Info Width: 14.19 Inch, Depth: 22 Inch, Height: 19.5 Inch, Bin Color: Silver, Bin Material: Polymer, See more product details
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Width : 14.19 Inch
- Depth : 22 Inch
- Height : 19.5 Inch
- Minimum Opening for a Face Frame Cabinet : 14-1/2" Width x 22" Depth x 20" Height
- Minimum Opening for a Frameless Cabinet : 14-5/16" Width x 22-1/4" Depth x 19-5/8" Height
- Minimum Opening for a Frameless Inset Cabinet : Add 3/4 inch to depth of the "Minimum Opening for a Frameless Cabinet"
- Full Product Dimensions (Millimeters) : 360.68 mm W x 558.8 mm D x 495.3 mm H
-
Manufacturer Info
- Manufacturer : Rev-A-Shelf
- Manufacturer Part # : 5149-18DM-217
-
Other Important Info
- Product Type : Waste Containers
- Waste Container Capacity : 35 Quart
- Bin Color : Silver
- Bin Material : Polymer
- Part Number : RV514918DM217
- Number of Bins : 2
- Slide Type : 150lb Full-Extension with Rev-A-Motion Soft-Close slide system (US Patent #8,091,971)
- Bin Lid Included : No
- Door Mount Hardware Included : Yes
- Weight Capacity : 150 lbs
- Sold : Includes waste containers, over-travel slides & built-in door mount brackets
- Weight : 21.805 lbs
- Full Product Dimensions : 14.2"W x 22"D x 19.5"H
- Product Series : W1 - 5149 Series
- Color : Silver
- Material : Aluminum
- Country of Origin : Italy
- Contains Wood : No
- Material Breakdown : Aluminum; Steel; Plastic
- Material Breakdown % : 65;10;25
- Includes : (2) Silver 35 quart waste containers with Brushed Aluminum frame and mounting hardware
- Feature 1 : Rev-A-Motion provides a soft-open/soft-close feature
- Fits or Designed for : Designed for a 18" cabinet with a 14.5" opening
- Included optional Door Mount / Door Extender : Includes patented door mount kit included to fit almost any door style (US Patent # 8,939,526)
- Optional Accessories : Optional Rev-A-Shelf lids available, sold separately
- Construction / Finish : Durable and easy to clean Polymer base
- Installation : Assembled in the USA
- Warranty : Limited Lifetime Warranty
- Number of Containers : 2
- Slides : Yes
- Category Groupings : Aluminum 15" BM Waste Container
- Sub-Class : Base Cabinet
- Ship Type : Small Parcel
- Keywords : Kitchen, Cabinet Organization, Trash, Waste Containers,
- Bin Capacity : 35 Quart
- All Features : Included: (2) Silver 35 quart waste containers with Brushed Aluminum frame and mounting hardware
Slide Type: 150lb Full-Extension Ball-Bearing Slides w/Soft-Close
Rev-A-Motion provides a soft-open/soft-close feature
Designed for a 18" cabinet with a 14.5" opening
Door mount brackets: Adjustable door mount brackets are included and required for operation
Optional Rev-A-Shelf lids available, sold separately
Construction: Heavy-duty Alumninum construction
Assembled in the USA
Limited Lifetime Warranty - Actual Product Width (Inches) : 14.2
- Actual Product Depth (Inches) : 22
- Actual Product Height (Inches) : 19.5
- Actual Product Weight (lbs) : 21.8
- Minimum Cabinet Frameless Opening (Inches) : 14.25
- Actual Product Width (Millimeters) : 360.68
- Actual Product Depth (Millimeters) : 558.8
- Actual Product Height (Millimeters) : 495.3
- Actual Product Weight (Kilograms) : 9.81
- Minimum Cabinet Faceframe Opening (Millimeters) : 368.3
- Minimum Cabinet Frameless Opening (Millimeter) : 361.95
- Primary Color : Silver
- Soft Close : Yes
- Gas Assist : Yes
- Material Bre : Aluminum; Steel; Plastic
Manufacturer Resources
About this item
-
Waste containers need not be an eyesore. Update your space with the 5149 Single or Double Door Mount Waste Containers-featuring a sleek anodized aluminum frame that glides effortlessly on soft-close slides.The coordintaing silver polymer base and bins come in a variety of sizes depending on your disposal needs. For trouble-free installation, the included door mount brackets allow of to 5" of flexibility to fit any door style.
