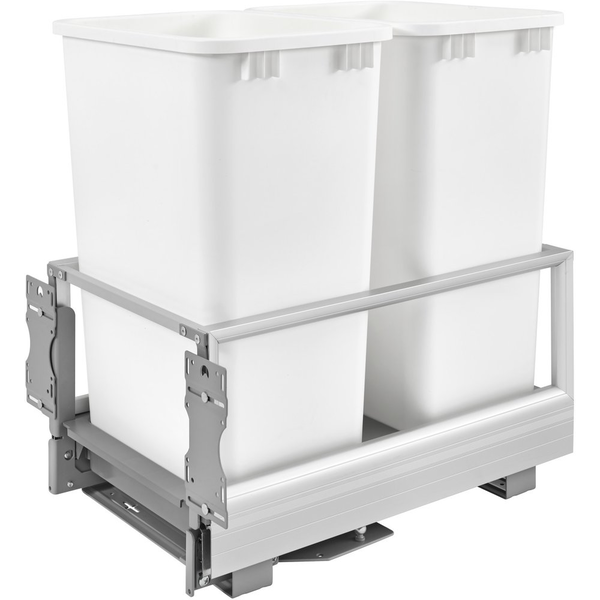

50 Quart Bottom Mount Double Trash Pull-Out Waste Container with Rev-A-Motion Slides, Min. Cabinet Opening: 15-3/4" Wide, White

  Rating 4.7 | 15 Reviews in the past 24 months | Our Item Number RV-5149-2150DM-211

Rev-A-Shelf's 5149 series adds a pinch of luxury to your trash. The sleek anodized aluminum frame glides in and out on the patented soft-close slide system. Door mount brackets included and can adjust to almost any door style.

$
362.99
$463.99
SAVE 22%
Ends Nov 21
Free Shipping on Rev-A-Shelf - Orders $99+
Use Code REVASHELF2611 Expires 11/30/2026

Color:

Bin Capacity:

Need Help? Contact Us Now
Product Info Width: 15.62 Inch, Depth: 22 Inch, Height: 23.5 Inch, Sub-Class: Base Cabinet, Ship Type: Small Parcel, See more product details
Qty:


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • All Features : Included: (2) White 50 quart waste containers with Brushed Aluminum frame and mounting hardware
    Slide Type: 150lb Full-Extension Ball-Bearing Slides w/Soft-Close
    Rev-A-Motion provides a soft-open/soft-close feature
    Full-height base cabinet required
    Designed for a 21" cabinet with a 15.75" opening
    Door mount brackets: Adjustable door mount brackets are included and required for operation
    Optional Rev-A-Shelf lids available, sold separately
    Construction: Heavy-duty Alumninum construction
    Assembled in the USA
    Limited Lifetime Warranty
  • Full Product Dimensions (Millimeters) : 397.002 mm W x 558.8 mm D x 596.9 mm H
  • Width : 15.62 Inch
  • Depth : 22 Inch
  • Height : 23.5 Inch
  • Feature 2 : Full-height base cabinet required
  • Minimum Opening for a Face Frame Cabinet : 15-3/4" Width x 22" Depth x 24" Height
  • Minimum Opening for a Frameless Cabinet : 15-3/4" Width x 22-1/4" Depth x 23-5/8" Height
  • Minimum Opening for a Frameless Inset Cabinet : Add 3/4 inch to depth of the "Minimum Opening for a Frameless Cabinet"

  • Manufacturer Info

  • Manufacturer : Rev-A-Shelf
  • Manufacturer Part # : 5149-2150DM-211

  • Other Important Info

  • Category Groupings : Aluminum 16" BM Waste Container
  • Sub-Class : Base Cabinet
  • Ship Type : Small Parcel
  • Bin Capacity : 50 Quart
  • Keywords : Kitchen, Cabinet Organization, Trash, Waste Containers,
  • Actual Product Width (Inches) : 15.63
  • Actual Product Depth (Inches) : 22
  • Actual Product Height (Inches) : 23.5
  • Actual Product Weight (lbs) : 23.9
  • Minimum Cabinet Frameless Opening (Inches) : 15.75
  • Actual Product Width (Millimeters) : 397.002
  • Actual Product Depth (Millimeters) : 558.8
  • Actual Product Height (Millimeters) : 596.9
  • Product Type : Waste Containers
  • Actual Product Weight (Kilograms) : 10.755
  • Minimum Cabinet Faceframe Opening (Millimeters) : 400.05
  • Minimum Cabinet Frameless Opening (Millimeter) : 400.05
  • Primary Color : White
  • Weight : 23.897 lbs
  • Material Bre : Aluminum; Steel; Plastic
  • Full Product Dimensions : 15.63"W x 22"D x 23.5"H
  • Product Series : W1 - 5149 Series
  • Color : White
  • Material : Aluminum
  • Country of Origin : Italy
  • Contains Wood : No
  • Material Breakdown : Aluminum; Steel; Plastic
  • Material Breakdown % : 65;10;25
  • Includes : (2) White 50 quart waste containers with Brushed Aluminum frame and mounting hardware
  • Slide Type : 150lb Full-Extension with Rev-A-Motion Soft-Close slide system (US Patent #8,091,971)
  • Feature 1 : Rev-A-Motion provides a soft-open/soft-close feature
  • Fits or Designed for : Designed for a 21" cabinet with a 15.75" opening
  • Included optional Door Mount / Door Extender : Includes patented door mount kit included to fit almost any door style (US Patent # 8,939,526)
  • Optional Accessories : Optional Rev-A-Shelf lids available, sold separately
  • Construction / Finish : Durable and easy to clean Polymer base
  • Installation : Assembled in the USA
  • Warranty : Limited Lifetime Warranty
  • Number of Containers : 2
  • Slides : Yes
  • Soft Close : Yes
  • Gas Assist : Yes

  • Manufacturer Resources
