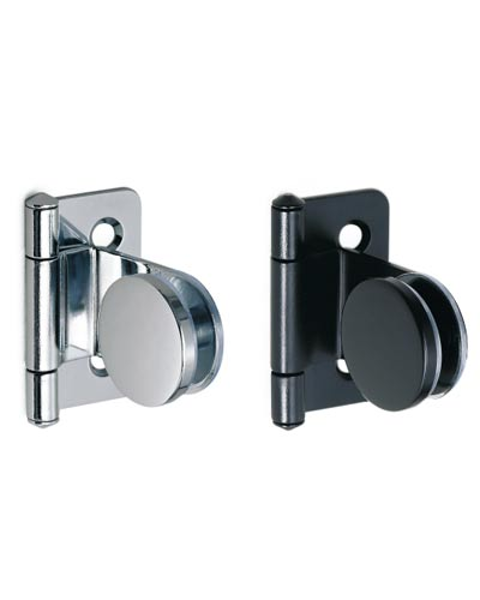

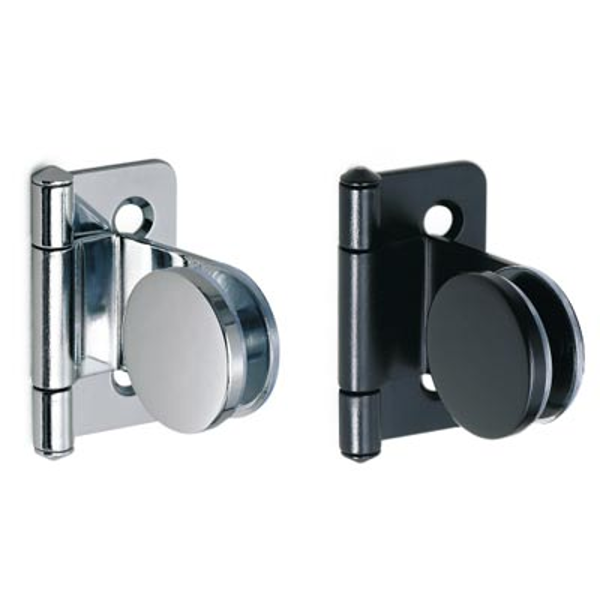

Inset Glass Door Hinge, 3/16 to 1/4” Glass Thickness, including Mounting Plate and Cover Cap, Chrome
Our Item Number SUG-GH-34-0-CR-P-RT
Since 1930, Sugatsune has been a trusted source worldwide for developing precision-engineered unique hardware solutions. They carry products to support commercial, marine, and residential applications, including door and industrial cabinet hardware and hinge hardware products.
$
10.29 Each
$12.10
SAVE 15%
Ends Aug 23
Ends Aug 23
Finish: Chrome
Overlay:
Product Info Weight: 0.05 lbs, Product Finish: Chrome, Overlay: Inset, See more product details
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Maximum Door Width : 17-3/4 Inch (450 mm(
- Maximum Door Thickness : 4-6 mm
- Maximum Door Height : 27-9/16 Inch (700 mm)
- Width : 1-17/64 Inch (32 mm)
- Height : 1-1/2 Inch (35.8 mm)
- Installation Note : Set back mounting plate screw-on position by door thickness +1.5 mm.
-
Manufacturer Info
- Manufacturer : Sugatsune
- Manufacturer Part # : GH-34/0/CR-P
- Manufacturer Finish : Chrome
-
Other Important Info
- Product Type : Glass Door Hinge
- Weight : 0.05 lbs
- Material : Steel and Zinc Alloy
- Product Finish : Chrome
- Overlay : Inset
- Use with : Glass/acrylic doors
- Maximum Door Weight : 8.8 lbs/pair (4kg/pair)
