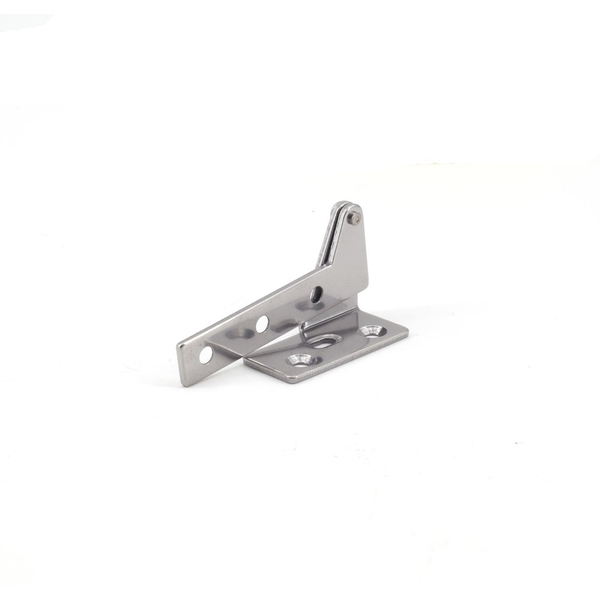

Overlay Door Pivot Hinges, Set of Left and Right, Max Door Weight 8.8 lbs/pair
Product Discontinuation AlertThis item has left our catalog. It's either upgraded to a newer model, didn't meet our high customer satisfaction standards, or the manufacturer said goodbye. But don't worry, CabinetParts is always here with top-notch alternatives.All the product info you could ask for...
-
Size Info
- Maximum Door Width : 17-3/4 Inch (450 mm)
- Maximum Door Thickness : 7/8 Inch (22 mm)
- Maximum Door Height : 27-9/16 Inch (700 mm)
-
Manufacturer Info
- Manufacturer : Sugatsune
- Manufacturer Part # : PL-60
- Manufacturer Finish : Stainless Steel
-
Other Important Info
- Product Type : Pivot Hinge
- Weight : 0.12 lbs
- Material : 304 Stainless Steel
- Product Finish : Stainless Steel
- Maximum Door Weight : 8.8 lbs (4 kg)/pair
