Hinges Semi Concealed Cabinet Hinges Semi Concealed Cabinet Hinges by Sugatsune
Loading from Primary Photo

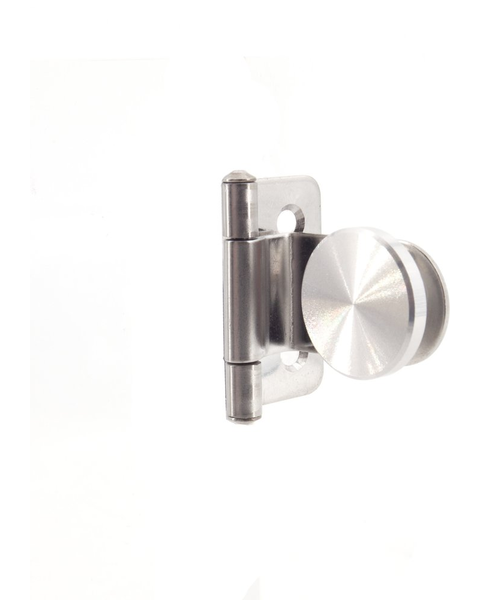

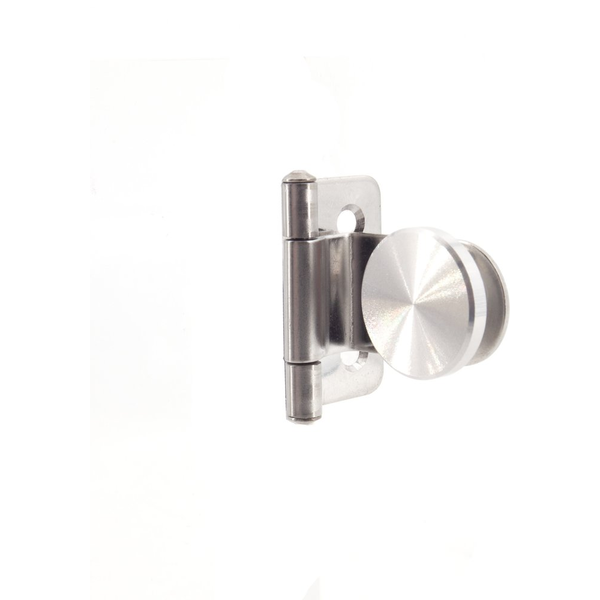

Inset Glass Door Hinge, 3/16 to 1/4” Glass Thickness, including Mounting Plate and Cover Cap, Stainless Steel

  Rating 5.0 | 1 Reviews in the past 24 months | Our Item Number SUG-GH-34-0-S-P-RT

Since 1930, Sugatsune has been a trusted source worldwide for developing precision-engineered unique hardware solutions. They carry products to support commercial, marine, and residential applications, including door and industrial cabinet hardware and hinge hardware products.

$
9.86 Each
$11.60
SAVE 15%
Ends Oct 07

Finish: Stainless Steel
Black Chrome Stainless Steel

Overlay:

Product Info Width: 13/16 Inch, Height: 1-11/32 Inch, Weight: 0.03 lbs, Overlay: Inset, See more product details
Qty:       Each


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Maximum Door Width : 17-3/4 Inch (450 mm(
  • Maximum Door Thickness : 4-6 mm
  • Maximum Door Height : 27-9/16 Inch (700 mm)
  • Width : 13/16 Inch
  • Height : 1-11/32 Inch
  • Installation Note : Set back mounting plate screw-on position by door thickness +1.5 mm.

  • Manufacturer Info

  • Manufacturer Finish : Stainless Steel
  • Manufacturer : Sugatsune
  • Manufacturer Part # : GH-34/0/S-P

  • Other Important Info

  • Product Type : Glass Door Hinge
  • Weight : 0.03 lbs
  • Material : 304 Stainless Steel
  • Product Finish : Stainless Steel
  • Overlay : Inset
  • Use with : Glass/acrylic doors
  • Maximum Door Weight : 8.8 lbs/pair (4kg/pair)

  • Manufacturer Resources

Back to Top
back to top

Our customers say Sugatsune products...

  5.0 out of 5
based on 1 ratings

"These reviews are from our customers who have purchased Sugatsune products."
  • 5 of 5 Perfect hinge for acrylic cabinet door September 23rd, 2026
    by Beverly from Center Point, IA

    The hinges are light enough for the acrylic/plexiglass doors in my camper. With the smoked doors, the hinges virtually disappear. They are sturdy also.,

    This review is about a different size/color of this item. (SUG-GH-34-0-BL-P-RT)

    Was this review helpful? yes no
