Plastic Jig Template for HES3D-E190 3-Way Adjustable Concealed Hinge
Our Item Number SUG-HES3D-E190-TMP

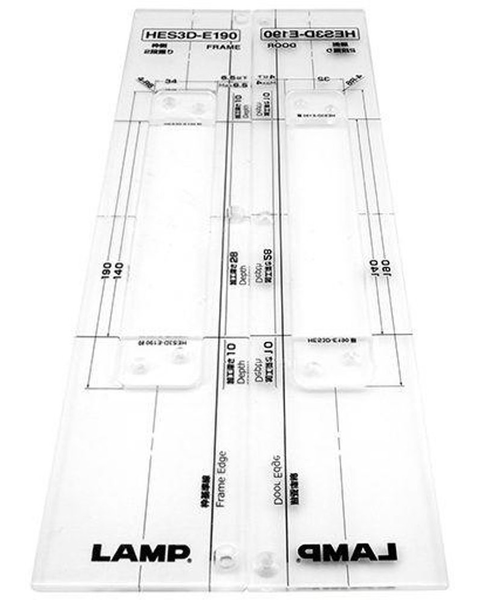

Upgrade your hinge installation process with the Plastic Jig Template. Engineered for precision and efficiency, this high-quality template is specifically designed to simplify the installation of the HES3D-E190 concealed hinges. Constructed from durable, lightweight plastic, it ensures consistent alignment, reducing errors and saving valuable time on every project.
$
78.54 Set
$92.40
SAVE 15%
Ends Jun 21
Ends Jun 21
Product Info Height: 7-1/2 Inch, Width: 1-1/16 Inch, Material: Plastic, Weight: 0.5 Lbs, ROHS Compliant: ROHS 2, See more product details
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Height : 7-1/2 Inch
- Width : 1-1/16 Inch
- Special Features : A top bearing template router bit can be used with this jig. It would require 2 passes with a 1 Inch template bit, and 2 passes with a 1/4 Inch template bit.
-
Manufacturer Info
- Manufacturer : Sugatsune
- Manufacturer Part # : HES3D-E190-TMP
- Manufacturer Finish : Clear
-
Other Important Info
- Product Type : Hinge Jig
- Material : Plastic
- Weight : 0.5 Lbs
- ROHS Compliant : ROHS 2
