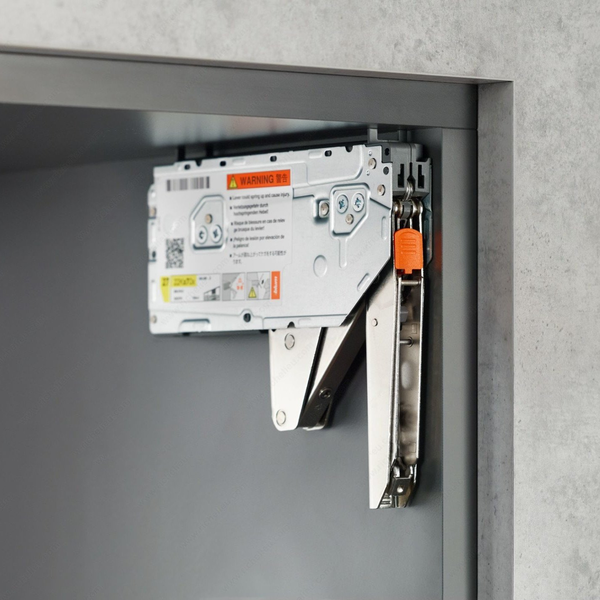

Aventos HK 36 to 139 Power Factor Top Hinged Lift, for 8-1/16 to 25-5/8 Inch Height Doors, Adjustable up to 107-Degrees with Cabinet Face, Requires Hardware Set and Covers

  Rating 4.4 | 147 Reviews in the past 24 months | Our Item Number BA22K2300

AVENTOS HK top blends discreetly into top wall cabinets, thus placing even greater focus on the design of the furniture. The size of AVENTOS HK top makes it ideal for small cabinets. This compact yet powerful fitting is even suitable for large wall cabinets. The opening angle stop is already integrated with AVENTOS HK top. The opening distance of the front is infinitely variable and can therefore be set exactly as required.

$
79.02
$112.89
SAVE 30%
Ends Aug 05

Power Factor Range:

Product Info Door Length: 70-7/8 Inch, Material: Steel, Side: Both, Includes Tip-On: No, See more product details

Need help buying the perfect lift system? Visit our Aventos Lift System - Automated Parts Builder for a complete and easy guide to creating your own Lift System.
Qty:


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Minimum Door Height : 8-1/16 Inch
  • Maximum Door Height : 23-5/8 Inch
  • Door Length : 70-7/8 Inch
  • Maximum Door Thickness : 1-3/16 Inch (30 mm)
  • Power Factor Computation : Power Factor=Cabinet Door Weight (lbs)×Cabinet Door Height (inches) Example: 20 inch Door Height×8 lbs Door Weight=160 Power Factor

  • Manufacturer Info

  • Manufacturer : Blum
  • Manufacturer Part # : 22K2300

  • Other Important Info

  • Maximum Door Weight : 39 Lbs
  • Material : Steel
  • Product Type : Arm
  • Mechanism Strength : Heavy Weight
  • Side : Both
  • Opening Angle (infiitely adjustable) : 107 Degrees
  • Includes : (2) Top Mechanisms
  • Power Factor Range : 36 - 139
  • Includes Tip-On : No

  • Manufacturer Resources

Back to Top
back to top

Our customers say Blum products...

  4.4 out of 5
based on 147 ratings

"These reviews are from our customers who have purchased Blum products."
  • 1 of 1 people found the following review helpful
    5 of 5 Smooth September 19th, 2024
    by Daniel from Crested Butte, CO

    Smooth operation, easy installation.

    Was this review helpful? yes no

  • 2 of 4 people found the following review helpful
    5 of 5 All-in-one hinge and lift for overhead doors September 18th, 2020
    by Will from Cape Canaveral, FL

    No need to mount any hinges. Easy to mount and worked perfectly after adjusting. For me, the best part was controlling the opening angle. Also to fine tune the lift force and to adjust the door in all three dimensions. A very well engineered cabinet mechanism.

    Was this review helpful? yes no

  • 1 of 1 people found the following review helpful
    4 of 5 Easy Install and Adjust March 18th, 2026
    by Brian from Crested Butte, CO

    Way easier to install and adjust than a horizontal hinge. Probably a wash on price.

    This review is about a different size/color of this item. (BA22K2300T)

    Was this review helpful? yes no

  • 3 of 3 people found the following review helpful
    5 of 5 Love these door lifts August 6th, 2025
    by Mary from MIDLOTHIAN, VA

    These cabinet door lifts are extremely easy to install and have adjustment screws to fine tune their location. Soft close is a nice added feature. I love these for cabinets located above appliances.

    This review is about a different size/color of this item. (BA22K2900)

    Was this review helpful? yes no

  • 0 of 1 people found the following review helpful
    1 of 5 Missing clips to mount on November 1st, 2025
    by efren from Corsicana, TX

    (no comment given)

    This review is about a different size/color of this item. (BA22K2900T)

    Was this review helpful? yes no
