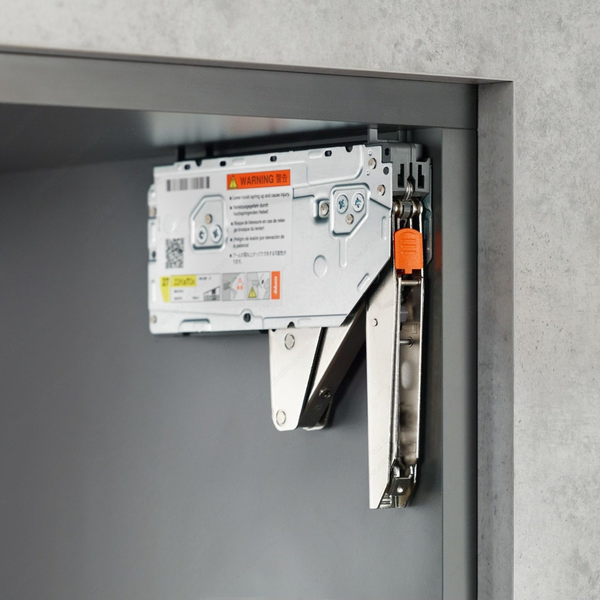

Aventos HK Tip-On Top Hinged Lift Mechanism, Power Factor 150-450, for Cabinet Heights 8-1/16" to 25-5/8", Adjustable up to 107 Degrees with Cabinet Face, Requires Hardware Set and Covers

  Rating 4.4 | 147 Reviews in the past 24 months | Our Item Number BA22K2700T

AVENTOS HK top is a compact, side-mounted lift system designed for small to medium-sized upper cabinets. It offers smooth, reliable motion with an adjustable opening angle, allowing the door to stay in any desired position. Known for their quality and longevity, Blum AVENTOS lift systems provide effortless operation and are ideal for modern, handle-less designs. For face frame cabinets, the BA22K6001 Face Frame Mounting Bracket is required, or the cabinet sides must be blocked out flush with the face frame edge. To find the correct power factor and all necessary components, click the “Need help buying the perfect lift system?” link below to use our automated parts builder.

$
98.34
$140.49
SAVE 30%
Ends Nov 12

Power Factor Range:

Product Info Door Length: 70-7/8 Inch, Side: Both, Tip-On: Yes, Material: Steel, See more product details

Need help buying the perfect lift system? Visit our Aventos Lift System - Automated Parts Builder for a complete and easy guide to creating your own Lift System.
Qty:


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Door Length : 70-7/8 Inch
  • Maximum Door Thickness : 1-3/16 Inch (30 mm)
  • Power Factor Computation : Example: 20 inch Door Height × 8 lbs Door Weight=160 Power Factor
  • Power Factor Computation : Power Factor = Cabinet Door Weight (lbs)× Height (In)
  • Minimum Door Height : 8-1/16 Inch
  • Maximum Door Height : 23-5/8 Inch

  • Manufacturer Info

  • Manufacturer : Blum
  • Manufacturer Part # : 22K2700T

  • Other Important Info

  • Product Type : Arm
  • Mechanism Strength : Heavy Weight
  • Side : Both
  • Opening Angle (infiitely adjustable) : 107 Degrees
  • Includes : (2) Top Mechanisms and (8) Screws
  • Power Factor Range : 150 - 450
  • Tip-On : Yes
  • Maximum Door Weight : 39 Lbs
  • Material : Steel

  • Manufacturer Resources
