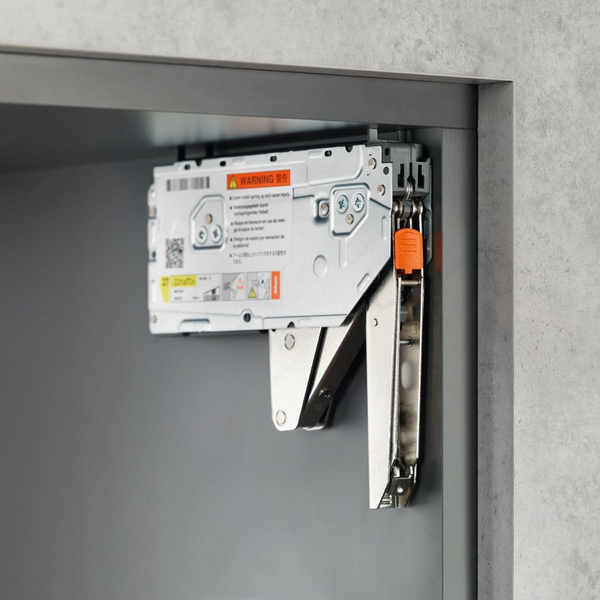

Aventos HK Tip-On Top Hinged Lift Mechanism, Power Factor 36-139, for Cabinet Heights 8-1/16" to 25-5/8", Adjustable up to 107 Degrees with Cabinet Face, Requires Hardware Set and Covers

  Rating 4.4 | 147 Reviews in the past 24 months | Our Item Number BA22K2300T

AVENTOS HK top is a compact, side-mounted lift system designed for small to medium-sized upper cabinets. It offers smooth, reliable motion with an adjustable opening angle, allowing the door to stay in any desired position. Known for their quality and longevity, Blum AVENTOS lift systems provide effortless operation and are ideal for modern, handle-less designs. For face frame cabinets, the BA22K6001 Face Frame Mounting Bracket is required, or the cabinet sides must be blocked out flush with the face frame edge. To find the correct power factor and all necessary components, click the “Need help buying the perfect lift system?” link below to use our automated parts builder.

$
92.51
$132.16
SAVE 30%
Ends Nov 03

Power Factor Range:

Product Info Door Length: 70-7/8 Inch, Material: Steel, Side: Both, Tip-On: Yes, See more product details

Need help buying the perfect lift system? Visit our Aventos Lift System - Automated Parts Builder for a complete and easy guide to creating your own Lift System.
Qty:


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Minimum Door Height : 8-1/16 Inch
  • Maximum Door Height : 23-5/8 Inch
  • Door Length : 70-7/8 Inch
  • Maximum Door Thickness : 1-3/16 Inch (30 mm)
  • Power Factor Computation : Power Factor= Cabinet Door Weight (lbs)× Height (inches
  • Power Factor Example : 20 inch Door Height x 8 lb Weight = 160 Power Factor

  • Manufacturer Info

  • Manufacturer : Blum
  • Manufacturer Part # : 22K2300T

  • Other Important Info

  • Maximum Door Weight : 39 Lbs
  • Material : Steel
  • Product Type : Arm
  • Mechanism Strength : Heavy Weight
  • Side : Both
  • Opening Angle (infiitely adjustable) : 107 Degrees
  • Includes : (2) Top Mechanisms and (8) Screws
  • Power Factor Range : 36 - 139
  • Tip-On : Yes

  • Manufacturer Resources

Back to Top
back to top

Our customers say Blum products...

  4.4 out of 5
based on 147 ratings

"These reviews are from our customers who have purchased Blum products."
  • 1 of 1 people found the following review helpful
    4 of 5 Easy Install and Adjust March 18th, 2026
    by Brian from Crested Butte, CO

    Way easier to install and adjust than a horizontal hinge. Probably a wash on price.

    Was this review helpful? yes no

  • 0 of 1 people found the following review helpful
    1 of 5 Missing clips to mount on November 1st, 2025
    by efren from Corsicana, TX

    (no comment given)

    This review is about a different size/color of this item. (BA22K2900T)

    Was this review helpful? yes no

  • 3 of 3 people found the following review helpful
    5 of 5 Love these door lifts August 6th, 2025
    by Mary from MIDLOTHIAN, VA

    These cabinet door lifts are extremely easy to install and have adjustment screws to fine tune their location. Soft close is a nice added feature. I love these for cabinets located above appliances.

    This review is about a different size/color of this item. (BA22K2900)

    Was this review helpful? yes no

  • 3 of 6 people found the following review helpful
    1 of 5 Not Good July 8th, 2025
    by Frank from Indian Trail, NC

    The hinges don"t come with the door mounting clips..they are worthless at this point... Can you help me out?

    This review is about a different size/color of this item. (BA22K2500)

    Was this review helpful? yes no

  • 5 of 5 efficient February 18th, 2025
    by Charlotte from Los Angeles, CA

    cabinet parts has the parts / items i need and always efficient overall handling. have been using cabinet parts for prior few years and will continue.

    This review is about a different size/color of this item. (BA22K2700T)

    Was this review helpful? yes no

See More Reviews

Reviews about us...

  • 4 of 5 | October 21st, 2026

    The actual product is a 5. However, The center point for the drill location is not the standard 22.5 mm. The hinge is actually designed to function with several mm more. This would have given the desired full overlay when installed. One little slip of pap

  • 5 of 5 | October 20th, 2026

    Excellent no hassles was just exactly what I wanted

  • 4 of 5 | October 20th, 2026

    came sooner than expected

  • 4 of 5 | October 19th, 2026

    glad to receive the parts in a better time frame than most cabinet suppliers

  • 4 of 5 | October 19th, 2026

    It would be great to have instructional information on website for the products you sell.
