Hinges Lid and Flap Stays AVENTOS HK Top Lift System & Tip On by Blum

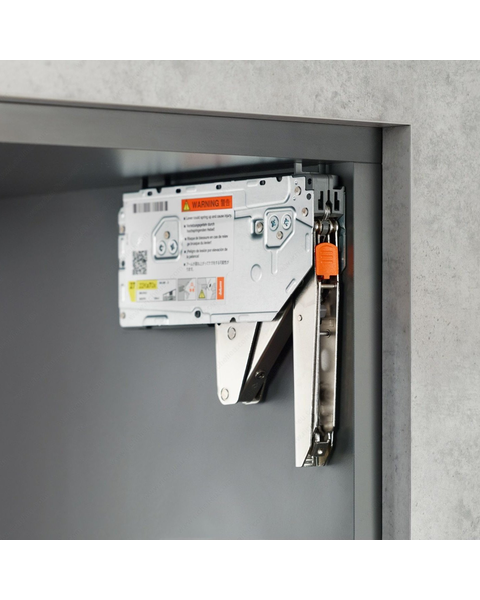

Loading from Primary Photo

Aventos HK 270 to 781 Power Factor Top Hinged Lift, for 8-1/16 to 25-58 Inch Height Doors, Adjustable up to 107-Degrees with Cabinet Face, Requires Hardware Set and Covers

  Rating 4.4 | 144 Reviews in the past 24 months | Our Item Number BA22K2900

AVENTOS HK top is a compact, side-mounted lift system designed for small to medium-sized upper cabinets. It offers smooth, reliable motion with an adjustable opening angle, allowing the door to stay in any desired position. Known for their quality and longevity, Blum AVENTOS lift systems provide effortless operation and are ideal for modern, handle-less designs. For face frame cabinets, the BA22K6001 Face Frame Mounting Bracket is required, or the cabinet sides must be blocked out flush with the face frame edge. To find the correct power factor and all necessary components, click the “Need help buying the perfect lift system?” link below to use our automated parts builder.

$
92.75
$132.50
SAVE 30%
Ends Jun 21

Power Factor Range:

Product Info Door Length: 70-7/8 Inch, Material: Steel, Side: Both, Includes Tip-On: No, See more product details

Need help buying the perfect lift system? Visit our Aventos Lift System - Automated Parts Builder for a complete and easy guide to creating your own Lift System.
Qty:


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Minimum Door Height : 8-1/16 Inch
  • Maximum Door Height : 23-5/8 Inch
  • Door Length : 70-7/8 Inch
  • Maximum Door Thickness : 1-3/16 Inch (30 mm)
  • Power Factor Computation : Power Factor = Cabinet Door Weight (lbs)× Height (inches
  • Power Factor Example : 20 inch Door Height x 8 lb Weight =160 Power Factor

  • Manufacturer Info

  • Manufacturer : Blum
  • Manufacturer Part # : 22K2900

  • Other Important Info

  • Maximum Door Weight : 39 Lbs
  • Material : Steel
  • Product Type : Arm
  • Mechanism Strength : Heavy Weight
  • Side : Both
  • Opening Angle (infiitely adjustable) : 107 Degrees
  • Includes : (2) Top Mechanisms
  • Power Factor Range : 270 - 781
  • Includes Tip-On : No

  • Manufacturer Resources
