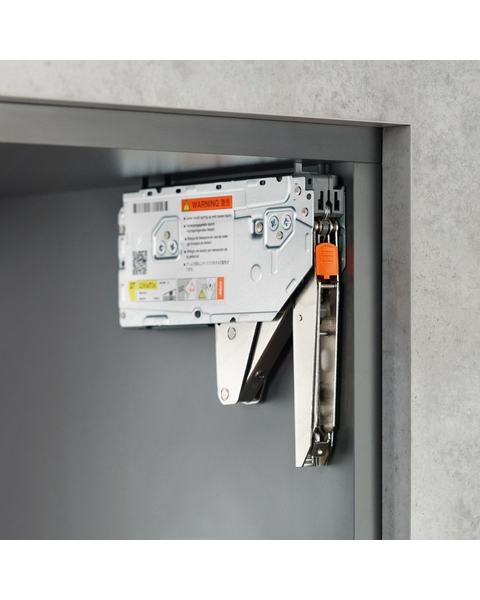

Aventos HK 36 to 139 Power Factor Top Hinged Lift, for 8-1/16 to 25-5/8 Inch Height Doors, Adjustable up to 107-Degrees with Cabinet Face, Requires Hardware Set and Covers

  Rating 4.4 | 144 Reviews in the past 24 months | Our Item Number BA22K2300

AVENTOS HK top blends discreetly into top wall cabinets, thus placing even greater focus on the design of the furniture. The size of AVENTOS HK top makes it ideal for small cabinets. This compact yet powerful fitting is even suitable for large wall cabinets. The opening angle stop is already integrated with AVENTOS HK top. The opening distance of the front is infinitely variable and can therefore be set exactly as required.

$
79.02
$112.89
SAVE 30%
Ends Jun 21

Power Factor Range:

Product Info Door Length: 70-7/8 Inch, Material: Steel, Side: Both, Includes Tip-On: No, See more product details

Need help buying the perfect lift system? Visit our Aventos Lift System - Automated Parts Builder for a complete and easy guide to creating your own Lift System.
Qty:


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Minimum Door Height : 8-1/16 Inch
  • Maximum Door Height : 23-5/8 Inch
  • Door Length : 70-7/8 Inch
  • Maximum Door Thickness : 1-3/16 Inch (30 mm)
  • Power Factor Computation : Power Factor=Cabinet Door Weight (lbs)×Cabinet Door Height (inches) Example: 20 inch Door Height×8 lbs Door Weight=160 Power Factor

  • Manufacturer Info

  • Manufacturer : Blum
  • Manufacturer Part # : 22K2300

  • Other Important Info

  • Maximum Door Weight : 39 Lbs
  • Material : Steel
  • Product Type : Arm
  • Mechanism Strength : Heavy Weight
  • Side : Both
  • Opening Angle (infiitely adjustable) : 107 Degrees
  • Includes : (2) Top Mechanisms
  • Power Factor Range : 36 - 139
  • Includes Tip-On : No

  • Manufacturer Resources
