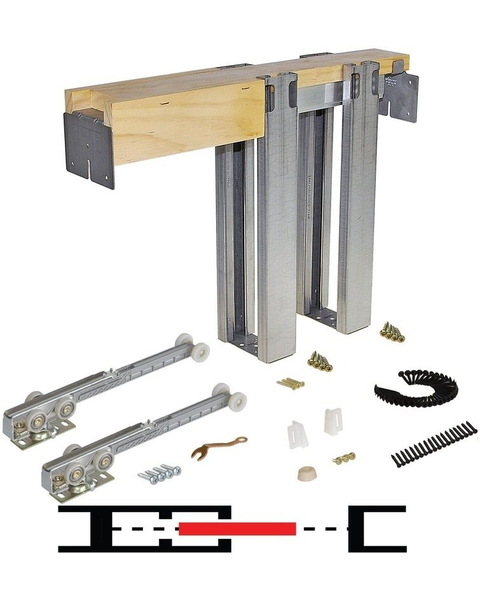

Loading from Primary Photo

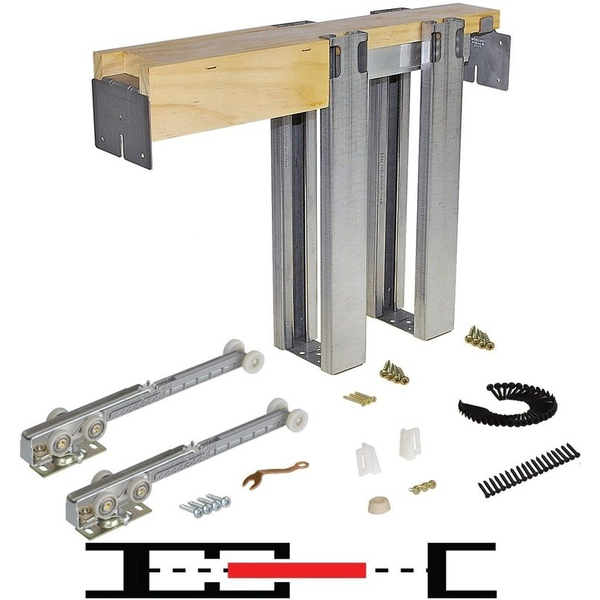

1500SC Series Soft-Close Wall Pocket Door Set for 36 Inch Width x 80 Inch Height Door, 2 x 4 Inch Framed Rough Opening 73 Inch Width x 84-1/2 Inch Height Required, 165 lbs Load Capacity

  Rating 4.8 | 227 Reviews in the past 24 months | Our Item Number JH-153068SC

The 1500SC Series Pocket Door Frame is designed to soft-open and soft-close heavy solid core doors weighing up to 165lbs. Smooth ball bearing hanger wheels combined with soft-closing door operation make the 1500SC one of the finest pocket door installations available. The 1500SC is designed to be quickly installed into prepared 2 x 4 timber frame stud walls or 4" steel framed stud walls when using the 1574PLBG 4" Steel Stud Adapter Kit. The 1500SC Frame Kit is packaged for easy transport and fast installation for either single or converging (2) door applications and all frame sizes can be cut down to accommodate custom size doors.

$
227 Each
$265.36
SAVE 14%
Ends Jun 30

Maximum Door Size:

Product Info Stud Wall Size: 2" x 4", Wheel Diameter: 1 Inch, Max Door Width: 3 Ft, Mount Type: Top-Mount, Track Finish: Aluminum, See more product details
Qty:       Each


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Max Door Height : 6 Ft 8 Inch
  • Door Thickness : 1 Inch - 1-3/4 Inch
  • Maximum Door Size : 36" x 80"
  • Stud Wall Size : 2" x 4"
  • Key Features : Prefabricated frame header assembly, ready to install in 2 Inch x 4 Inch wall opening
    Frames can be cut down to accommodate smaller door size
    Comes with (2) 1060 soft-close units for bidirectional soft-close
    Minimum Door width for bidirectional soft-close door operation is 28 Inch
    Order (1) Frame Kit per door
    How to order the right PD Frame Kit: 1) Determine your door size (width, height, thickness) 2) Select a frame part number that accommodates your door size
  • Wheel Diameter : 1 Inch

  • Other Important Info

  • Product Type : Pocket Door Frame
  • Max Door Width : 3 Ft
  • Mount Type : Top-Mount
  • Track Finish : Aluminum
  • Includes : (1) Header (Factory Assembled) (4) Split Stud Lengths (2) 512085 Split Stud Floor Brackets (2) 1060 Soft-Close Hangers (1) 1550 Pocket Door Guide (1) 1513 Door Bumper (1) 1712 Adjustment Wrench Hardware Mounting Screws
  • Closing Type : Soft-Close
  • Track Series : 100
  • Collection : 1500SC
  • Load Rating/Weight Capacity : 165 Lbs
  • Wheel Type : Nylon Encapsulated Sealed Ball Bearing
  • Steel Component Finish : 12-14 Guage
  • Split Stud Construction : 18 Gauge Cold Rolled Galvanized Steel
  • Country of Origin : USA

  • Manufacturer Resources
