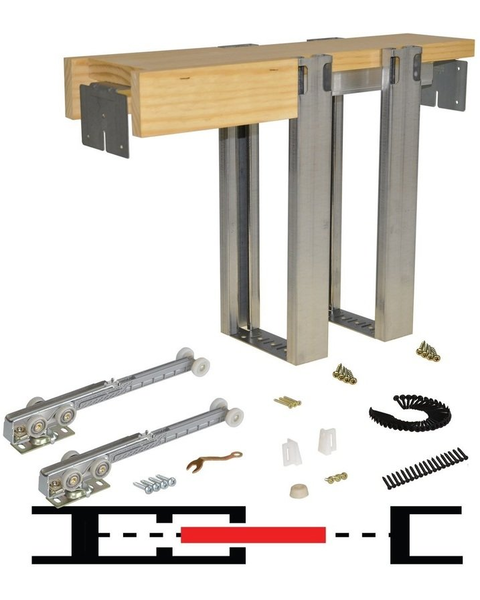

Loading from Primary Photo

JH1560 30 Inch Width x 80 Inch Height Soft-Close Wall Pocket Door Frame Set for 2 x 6 Inch Framed Openings, 1 to 3 Inch Door Thickness, 165 Lbs Load Bearing

  Rating 4.8 | 226 Reviews in the past 24 months | Our Item Number JH-1563068S

The 1562 Series Bypass Pocket Door Frame is designed to carry two 1-3/8" heavy solid core bypassing doors in a standard 2 x 6 timber or 6" steel framed stud walls when using the 1576PLBG 6" Steel Stud Adapter Kit. The 1562 allows architects and designers to specify large room dividing openings with minimum wall obstruction for "clean and open" living spaces. The 1562 Frame Kit is factory configured to accept most standard door sizes and packaged for easy transport and fast installation in either bypass pocket door or converging bypass pocket door applications.

$
272.85 Each
$330.88
SAVE 18%
Ends Jun 12

Maximum Door Size:

Product Info Stud Wall Size: 2" x 6", Wheel Diameter: 1 Inch, Max Door Width: 3 Ft, Mount Type: Top-Mount, Track Finish: Aluminum, See more product details
Qty:       Each


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Max Door Height : 6 Ft 8 Inch
  • Door Thickness : 1 Inch - 3 Inch
  • Maximum Door Size : 36" x 80"
  • Stud Wall Size : 2" x 6"
  • Key Features : Frames are single packed, knocked down, ready for installation into 2 x 6 framed wall openings
    Frames contain hardware for one bypass pocket door installation (door, jambs, drywall, door locks, door pulls NOT included)
    Frames can be cut down to accommodate smaller door size
    Comes with (2) 1060 soft-close units for bidirectional soft-close
    Minimum Door width for bidirectional soft-close door operation is 28 Inch
    How to order the right PD Frame Kit: 1) Determine your door size (width, height, thickness) 2) Select a frame part number that accommodates your door size
  • Wheel Diameter : 1 Inch

  • Other Important Info

  • Product Type : Pocket Door Frame
  • Max Door Width : 3 Ft
  • Mount Type : Top-Mount
  • Track Finish : Aluminum

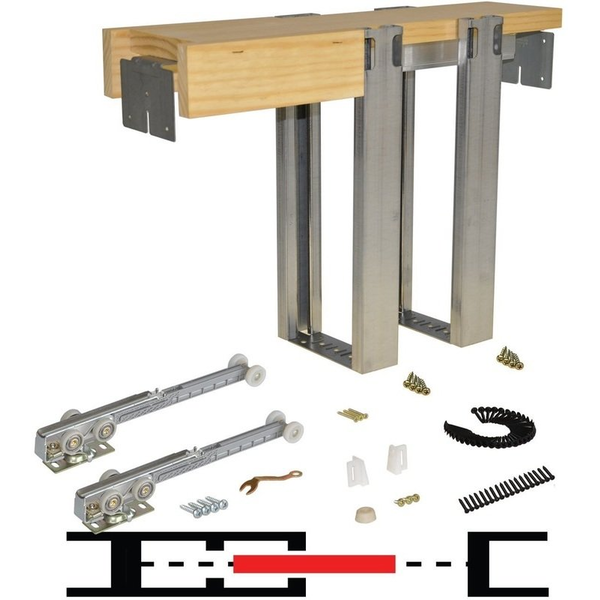

  • Includes : (1) Header (Factory Assembled) (4) Split Stud Lengths (2) 511595 Split Stud Floor Brackets (2) 1060 Soft-Close Hangers (1) 1550 Pocket Door Guide (1) 1513 Door Bumper (1) 1712 Adjustment Wrench (18) Selft-Tapping Drywall Screws (18) Self-Tapping Trim Hardware Mounting Screws
  • Closing Type : Soft-Close
  • Track Series : 100
  • Collection : 1560SC
  • Load Rating/Weight Capacity : 165 Lbs
  • Wheel Type : Nylon Encapsulated Sealed Ball Bearing
  • Steel Component Finish : 12-14 Guage
  • Split Stud Construction : 18 Gauge Cold Rolled Galvanized Steel
  • Country of Origin : USA
