JH1562 Wall Bypass Pocket Door Frame Set for 2 x 6 Inch Framed Opening, Door Size 30 Inch Width x 84 Inch Height x 1-3/8 Inch Required Door Thickness, 200 Lbs Load Bearing
Rating 4.8 | 227 Reviews | Our Item Number JH-15622670
The 1562 Series Bypass Pocket Door Frame is designed to carry two 1-3/8" heavy solid core bypassing doors in a standard 2 x 6 timber or 6" steel framed stud walls when using the 1576PLBG 6" Steel Stud Adapter Kit. The 1562 allows architects and designers to specify large room dividing openings with minimum wall obstruction for "clean and open" living spaces. The 1562 Frame Kit is factory configured to accept most standard door sizes and packaged for easy transport and fast installation in either bypass pocket door or converging bypass pocket door applications.
$
373.40 Each
$533.43
SAVE 30%
Ends Nov 03
Ends Nov 03
Maximum Door Size:
Closing Type:
Product Info Door Thickness: 1-3/8 Inch, Stud Wall Size: 2" x 6", Wheel Diameter: 1 Inch, Max Door Height: 7 Ft, Mount Type: Top-Mount, See more product details
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Max Door Width : 2 Ft 6 Inch
- Door Thickness : 1-3/8 Inch

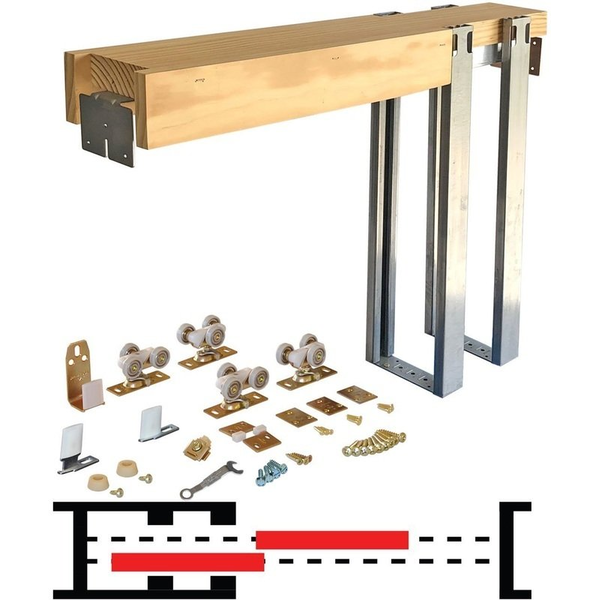

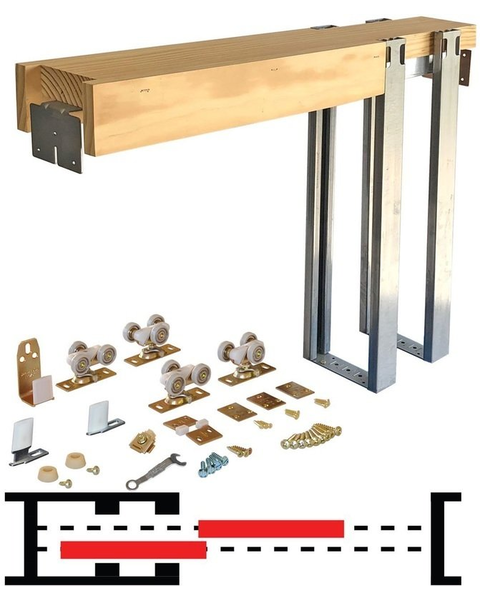

- Includes : (1) Header (Factory Assembled) (4) Steel Split Studs (4) 1125 Ball Bearing Wheel Door Hangers (2) 511595 Split Stud Floor Brackets (1) 1155 Track Stop (2) 1513 Door Bumper (1) 1712 Adjustment Wrench (1) 2032 1-3/8 InchSide Mount Door Guide (3) 2040 Door Guide Cover Plate (1) 2054 Multi-Door Catch Set (1) 2083 Finished Floor Door Guide (1) 2084 Sub Floor Door Guide
- Maximum Door Size : 30" x 84"
- Stud Wall Size : 2" x 6"
- Key Features : Shallow Pocket Wide Openings: Ideal for applications where wall structure or obstacles do not allow a deep pocket
Time Saver: The factory measured and fabricated 1562 installs quickly into standard 2 Inch x 6 Inch stud walls
Standard Door Sizes: The 1562 accepts standard 1-3/8 Inch (35mm) door sizes
Sequential Door Opening: Pull 1st door and the 2nd door follows
Self Adjusting Floor Brackets: Compensate for settling floors and walls - Wheel Diameter : 1 Inch
-
Manufacturer Info
- Manufacturer : Johnson Hardware
- Manufacturer Part # : 15622670
-
Other Important Info
- Product Type : Pocket Door Frame
- Max Door Height : 7 Ft
- Mount Type : Top-Mount
- Track Finish : Aluminum
- Closing Type : Standard Close
- Track Series : 100
- Collection : 1562
- Load Rating/Weight Capacity : 200 Lbs
- Wheel Type : Nylon Encapsulated Sealed Ball Bearing
- Steel Component Finish : 12-14 Guage
- Split Stud Construction : 18 Gauge Cold Rolled Galvanized Steel
- Country of Origin : USA
