JH1560 36 Inch x 84 Inch Soft-Close Wall Pocket Door Frame Set for 2 x 6 Inch Framed Openings, 1 to 3 Inch Door Thickness, 165 Lbs Load Bearing
Rating 4.8 | 227 Reviews | Our Item Number JH-1563070S
The 1562 Series Bypass Pocket Door Frame is designed to carry two 1-3/8" heavy solid core bypassing doors in a standard 2 x 6 timber or 6" steel framed stud walls when using the 1576PLBG 6" Steel Stud Adapter Kit. The 1562 allows architects and designers to specify large room dividing openings with minimum wall obstruction for "clean and open" living spaces. The 1562 Frame Kit is factory configured to accept most standard door sizes and packaged for easy transport and fast installation in either bypass pocket door or converging bypass pocket door applications.
$
294.24 Each
$361.42
SAVE 19%
Ends Jun 30
Ends Jun 30
Maximum Door Size:
Product Info Wheel Diameter: 1 Inch, Stud Wall Size: 2" x 6", Country of Origin: USA, Max Door Height: 7 Ft, Max Door Width: 3 Ft, See more product details
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Wheel Diameter : 1 Inch
- Door Thickness : 1 Inch - 3 Inch
- Maximum Door Size : 36" x 84"
- Stud Wall Size : 2" x 6"
- Key Features : Frames are single packed, knocked down, ready for installation into 2 x 6 framed wall openings
Frames contain hardware for one bypass pocket door installation (door, jambs, drywall, door locks, door pulls NOT included)
Frames can be cut down to accommodate smaller door size
Comes with (2) 1060 soft-close units for bidirectional soft-close
Minimum Door width for bidirectional soft-close door operation is 28 Inch
How to order the right PD Frame Kit: 1) Determine your door size (width, height, thickness) 2) Select a frame part number that accommodates your door size
-
Manufacturer Info
- Manufacturer : Johnson Hardware
- Manufacturer Part # : 1563070S
-
Other Important Info
- Wheel Type : Nylon Encapsulated Sealed Ball Bearing
- Steel Component Finish : 12-14 Guage
- Split Stud Construction : 18 Gauge Cold Rolled Galvanized Steel
- Country of Origin : USA
- Product Type : Pocket Door Frame
- Max Door Height : 7 Ft
- Max Door Width : 3 Ft
- Mount Type : Top-Mount
- Track Finish : Aluminum

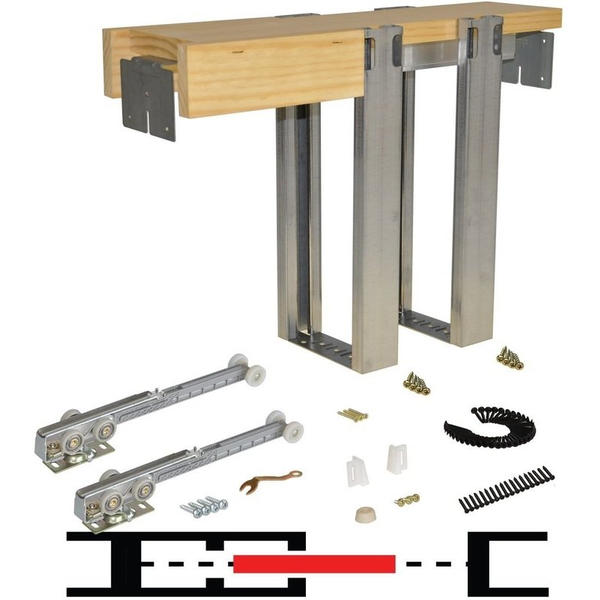

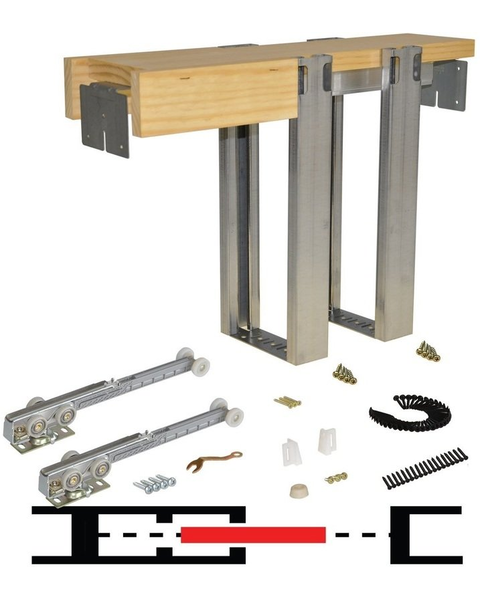

- Includes : (1) Header (Factory Assembled) (4) Split Stud Lengths (2) 511595 Split Stud Floor Brackets (2) 1060 Soft-Close Hangers (1) 1550 Pocket Door Guide (1) 1513 Door Bumper (1) 1712 Adjustment Wrench (18) Selft-Tapping Drywall Screws (18) Self-Tapping Trim Hardware Mounting Screws
- Closing Type : Soft-Close
- Track Series : 100
- Collection : 1560SC
- Load Rating/Weight Capacity : 165 Lbs
Manufacturer Resources
-
