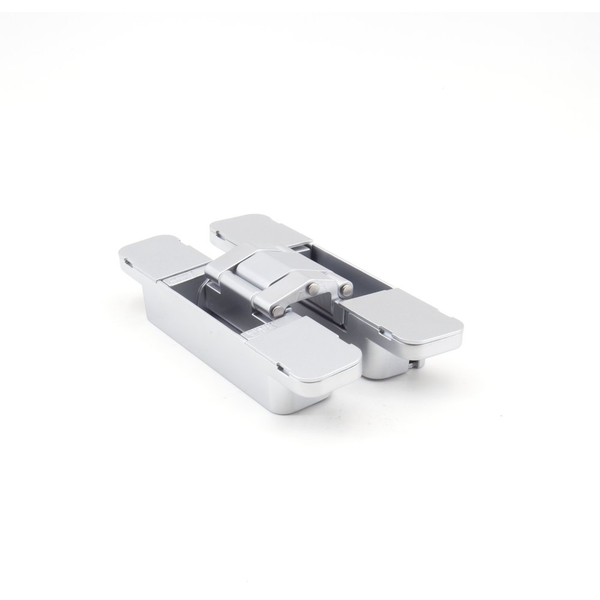

3 Way Adjustable Concealed Hinge for 1-1/8” (29mm) Minimum Door Thickness, Door Sizes up to 94-1/2”H x 35-7/16”W, Chrome
Our Item Number SUG-HES3D-120DC-RT
Since 1930, Sugatsune has been a trusted source worldwide for developing precision-engineered unique hardware solutions. They carry products to support commercial, marine, and residential applications, including door and industrial cabinet hardware and hinge hardware products.
$
76.50 Each
$90.00
SAVE 15%
Ends Jul 18
Ends Jul 18
Finish: Dull Chrome
Height:
Product Info Weight: 0.84 lbs, Material: Zinc Alloy, Product Finish: Chrome, See more product details
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Key Features : 3-WAY adjustment function allows vertical, horizontal, and depth adjustment after hinge installed.
Easy installation and adjustment.
Successfully passed 300,000 open/close private cycle tests.
Supplied with steel flat head screw.
Covers hide all screw heads for clean appearance.
Bracket for sheet metal available. - Maximum Door Width : 35-7/16 Inch (900 mm)
- Maximum Door Height : 94-1/2 Inch (2400 mm)
- Minimum Door Thickness : 1-1/8 Inch (29 mm()
- Height : 4-3/4 Inch (120 mm)
-
Manufacturer Info
- Manufacturer : Sugatsune
- Manufacturer Part # : HES3D-120DC
- Manufacturer Finish : Dull Chrome
-
Other Important Info
- Product Type : Invisible Hinge
- Weight : 0.84 lbs
- Material : Zinc Alloy
- Product Finish : Chrome
- Maximum Door Weight : 66 lbs (30 kg)/2 pcs, 88 lbs (40kg)/3 pcs
