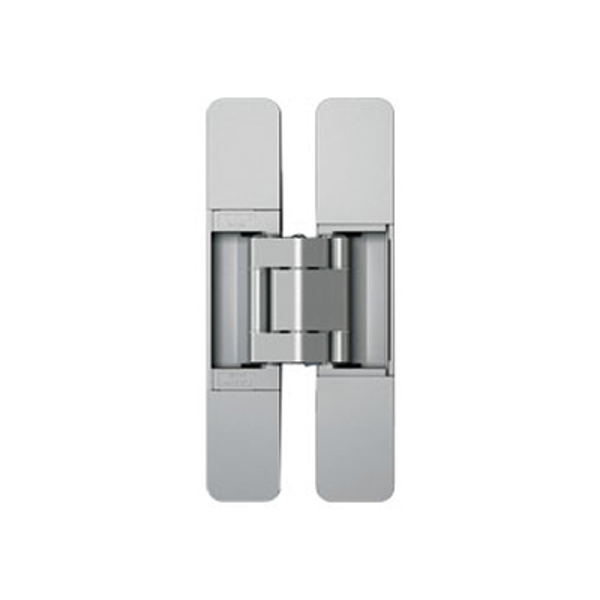

Sugatsune 3 Way Adjustable Hinge-Matte Silver
Product Discontinuation AlertThis item has left our catalog. It's either upgraded to a newer model, didn't meet our high customer satisfaction standards, or the manufacturer said goodbye. But don't worry, CabinetParts is always here with top-notch alternatives.All the product info you could ask for...
-
Size Info
- Minimum Door Thickness : 1-3/8"
- Key Features : 3 way adjustment allows vertical, horizontal & depth adjustment after installation
Easy installation & removal
Supplied with screws
Cover hides all screw heads for clean appearance
-
Manufacturer Info
- Manufacturer : Sugatsune
- Manufacturer Part # : HES3D-160SL
-
Other Important Info
- Includes : (1) Hinge
- Product Type : Invisible Hinge
- Product Finish : Matte Silver
- Weight Capacity : 88 lbs Per 2 Hinges
- Maximum Door Size : 78-47/64" H x 35-7/16" W
