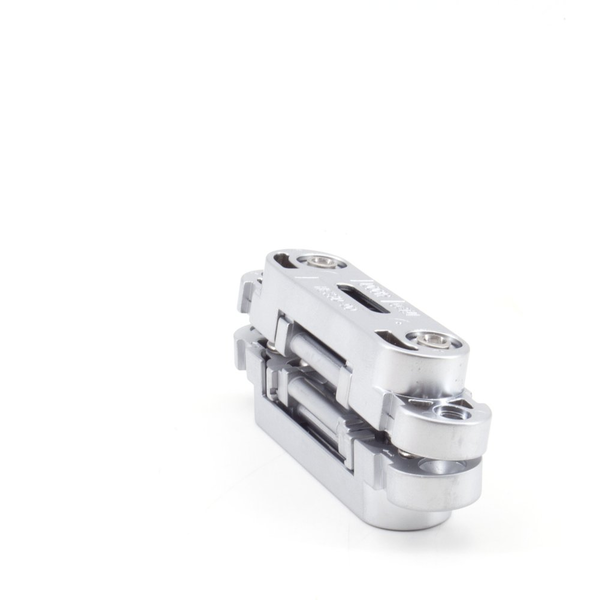

3 Way Adjustable Concealed Hinge, Minimum Door Thickness 15/16” (19mm), Door Sizes up to 59-1/16” H x 23-5/8” W, Hinge Leaves Separate for Easy Installation. Screw Head Covers, 3-17/32” (90mm) High,
Our Item Number SUG-HES3D-90DC-RT
Since 1930, Sugatsune has been a trusted source worldwide for developing precision-engineered unique hardware solutions. They carry products to support commercial, marine, and residential applications, including door and industrial cabinet hardware and hinge hardware products.
$
71.83 Each
$84.50
SAVE 15%
Ends Jul 18
Ends Jul 18
Finish: Dull Chrome
Height:
Product Info Weight: 0.44 lbs, Material: Zinc Alloy, Product Finish: Chrome, See more product details
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Key Features : 3-WAY adjustment function allows vertical, horizontal, and depth adjustment.
Covers hide all screw heads for clean appearance.
Hinge leaves separate for easy installation and adjustment.
Includes steel countersunk wood screws. - Maximum Door Width : 23-5/8 Inch (600 mm)
- Maximum Door Height : 59-1/16 Inch (1500 mm)
- Minimum Door Thickness : 15/16 Inch (23 mm)
- Height : 3-17/32 Inch (90 mm)
-
Manufacturer Info
- Manufacturer : Sugatsune
- Manufacturer Part # : HES3D-90DC
- Manufacturer Finish : Dull Chrome
-
Other Important Info
- Product Type : Invisible Hinge
- Weight : 0.44 lbs
- Material : Zinc Alloy
- Product Finish : Chrome
- Maximum Door Weight : 26 lbs (12 kg)/2 pcs, 35 lbs (16 kg)/3 pcs
