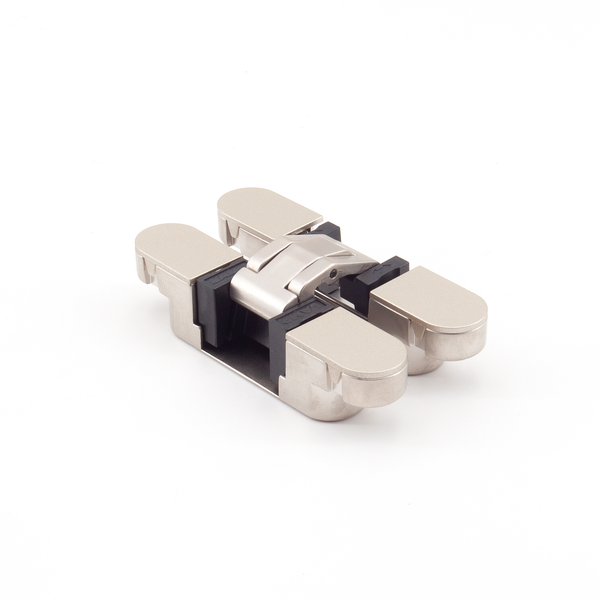

3 Way Adjustable Concealed Hinge, Minimum Door Thickness 3/4” (19mm), Door Sizes up to 47-1/4” H x 23-5/8” W, Hinge Leaves Separate for Easy Installation. Screw Head Covers, 2-3/4” H, Dull Nickel
Our Item Number SUG-HES3D-70DN-RT
Since 1930, Sugatsune has been a trusted source worldwide for developing precision-engineered unique hardware solutions. They carry products to support commercial, marine, and residential applications, including door and industrial cabinet hardware and hinge hardware products.
$
59.50 Each
$70.00
SAVE 15%
Ends Oct 07
Ends Oct 07
Finish: Dull Nickel
Height:
Product Info Height: 2-3/4 Inch (70 mm), Weight: 0.48 lbs, Material: Zinc Alloy, Product Finish: Nickel, See more product details
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Key Features : 3-WAY adjustment function allows vertical, horizontal and depth adjustment after installation.
Hinge leaves separate for easy installation.
Covers hide screw heads for clean appearance.
Includes steel countersunk wood screws.
Small size for min. 3/4" panel thickness. - Maximum Door Width : 23-5/8 Inch (600 mm)
- Maximum Door Height : 47-1/4 Inch (1200 mm)
- Minimum Door Thickness : 3/4 Inch (19 mm)
- Height : 2-3/4 Inch (70 mm)
-
Manufacturer Info
- Manufacturer Part # : HES3D-70DN
- Manufacturer Finish : Dull Nickel
- Manufacturer : Sugatsune
-
Other Important Info
- Product Type : Invisible Hinge
- Weight : 0.48 lbs
- Material : Zinc Alloy
- Product Finish : Nickel
- Maximum Door Weight : 19.8 lbs (9 kg)/2 pcs, 26.4 lbs (12 kg)/3 pcs
