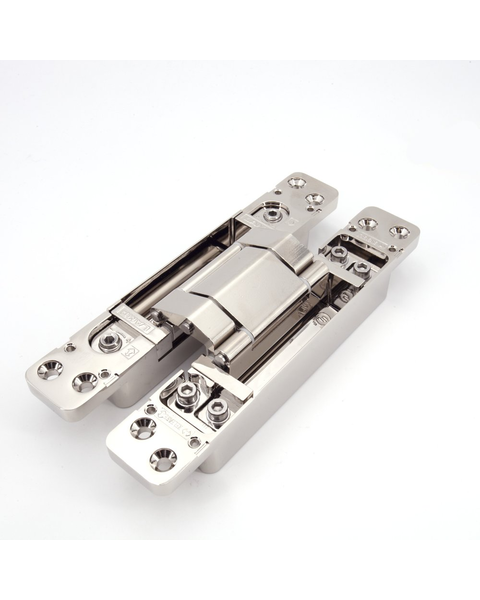

3 Way Adjustable Concealed Heavy Duty Door Hinge, Lift-Off Feature, Minimum Door Thickness 1-1/2” (38mm), Door Sizes up to 94-1/2” H x 35-7/16” W, Screw Head Covers, 5-15/32” Polished NIckel
Our Item Number SUG-HES3D-E190PN-UL
Since 1930, Sugatsune has been a trusted source worldwide for developing precision-engineered unique hardware solutions. They carry products to support commercial, marine, and residential applications, including door and industrial cabinet hardware and hinge hardware products.
$
160.65 Each
$189.00
SAVE 15%
Ends Jun 21
Ends Jun 21
Finish: Polished NIckel
Height:
Product Info Weight: 2.31 lbs, Material: Zinc Alloy, Product Finish: NIckel, See more product details
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Key Features : 3-WAY adjustment function allows vertical, horizontal, and depth adjustment after hinge installed.
Easy installation with LIFT-OFF FEATURE: can be split into two parts (one for the frame and one for the flap), can temporarily be hung and hold position without being affixed with screws.
Successfully passed 300,000 open/close private cycle tests.
Supplied with steel flat head screw.
Covers hide all screw heads for clean appearance.
Bracket for sheet metal doors and frames available (sold separately).
Metal cover plates available for Polished Nickel (PN) finish HES3D-E190PN-CM (sold seprately). - Maximum Door Width : 35-7/16 Inch (900 mm)
- Maximum Door Height : 94-1/2 Inch (2400 mm)
- Minimum Door Thickness : 1-1/2 Inch (38 mm)
- Height : 5-15/32 Inch (139 mm)
-
Manufacturer Info
- Manufacturer : Sugatsune
- Manufacturer Part # : HES3D-E190PN-UL
- Manufacturer Finish : Polished NIckel
-
Other Important Info
- Product Type : Invisible Hinge
- Weight : 2.31 lbs
- Material : Zinc Alloy
- Product Finish : NIckel
- Maximum Door Weight : 220 lbs (100 kg)/ pcs, 275 lbs (125 kg)/3 pcs
