JH1500HD for Door Size 30 Inch Width x 80 Inch Height x 1 to 1-3/4 Inch Door Thickness Standard Close Wall Pocket Door Frame Set for 2 x 4 Inch Framed Opening, 200 Lbs Load Bearing,

  Rating 4.8 | 226 Reviews in the past 24 months | Our Item Number JH-152668HD

The 1500HD Series Pocket Door Frame is designed to carry heavy solid core doors weighing up to 200lbs. Ball bearing hanger wheels provide feather-touch door operation making the 1500HD one of the smoothest rolling pocket door installations available. The 1500 is designed to be quickly installed into prepared 2 x 4 timber frame stud walls or 4" steel framed stud walls when using the 1574PLBG 4" Steel Stud Adapter Kit. The 1500 Frame Kit is packaged for easy transport and fast installation for either single or converging (2) door applications and all frame sizes can be cut down to accommodate custom size doors.

$
158.97 Each
$227.09
SAVE 30%
Ends Jun 21

Maximum Door Size:

Product Info Stud Wall Size: 2" x 4", Wheel Diameter: 1 Inch, Mount Type: Top-Mount, Track Finish: Aluminum, Closing Type: Soft-Close, See more product details
Qty:       Each


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Max Door Height : 6 Ft 8 Inch
  • Max Door Width : 2 Ft 6 Inch
  • Door Thickness : 1 Inch - 1-3/4 Inch
  • Rough Opening Required : 31 Inch Width x 84-1/2" Height
  • Maximum Door Size : 30" x 80"
  • Stud Wall Size : 2" x 4"
  • Rough Opening Required : 30 Inch Width x 84-1/2 height
  • Rough Opening Required : 31 Inch Width x 84-1/2 height
  • Key Features : Prefabricated frame header assembly, ready to install in 2 Inch x 4 Inch wall opening
    Frames can be cut down to accommodate smaller door size
    Comes with a heavy-duty 3-wheel door hanger (200 lbs per door)
    Order (1) Frame Kit per door
    How to order the right PD Frame Kit: 1) Determine your door size (width, height, thickness) 2) Select a frame part number that accommodates your door size
  • Wheel Diameter : 1 Inch

  • Other Important Info

  • Product Type : Pocket Door Frame
  • Mount Type : Top-Mount
  • Track Finish : Aluminum

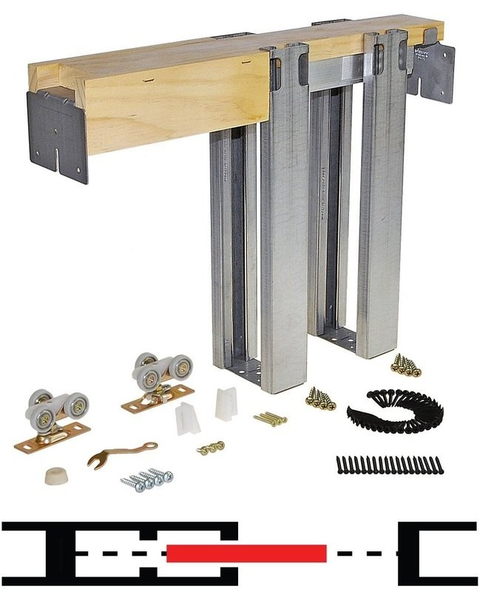

  • Includes : (1) Header (Factory Assembled) (4) All Steel Split Stud Lengths (2) 512085 Split Stud Floor Brackets (2) 1125 Ball Bearing Door Hangers (1) 1550 Pocket Door Guide (1) 1513 Door Bumper (1) 1712 Adjustment Wrench Hardware Mounting Screws
  • Closing Type : Soft-Close
  • Class : Heavy Duty
  • Track Series : 100
  • Collection : 1500HD
  • Load Rating/Weight Capacity : 200 Lbs
  • Wheel Type : Nylon Encapsulated Sealed Ball Bearing
  • Steel Component Finish : 12-14 Guage
  • Split Stud Construction : 18 Gauge Cold Rolled Galvanized Steel
  • Country of Origin : USA
