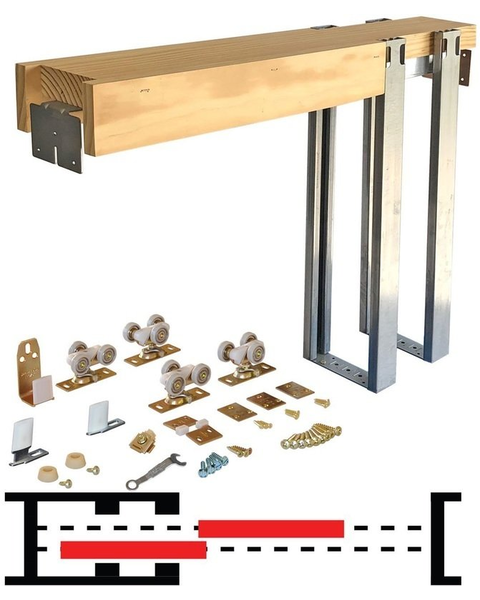

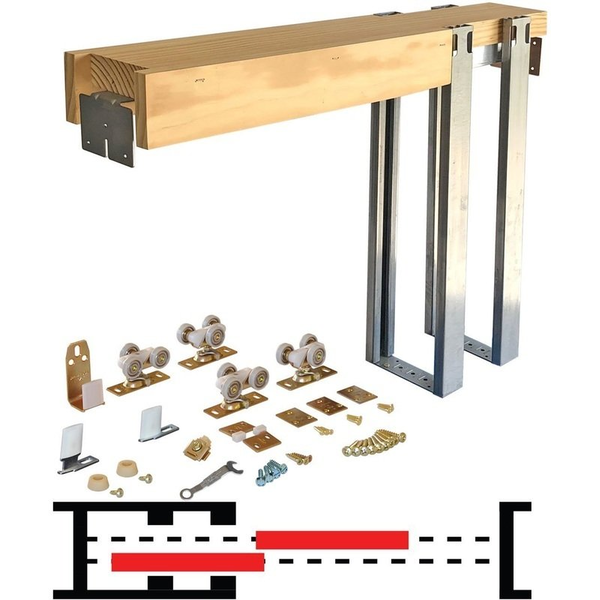

30 Inch x 80 Inch Maximum Door Size Soft-Close Bypass Pocket Door Frame Set, 1562SC Series, 200 Lbs Load Bearing

  Rating 4.8 | 226 Reviews in the past 24 months | Our Item Number JH-15622668SC

The 1562 Series Bypass Pocket Door Frame is designed to carry two 1-3/8" heavy solid core bypassing doors in a standard 2 x 6 timber or 6" steel framed stud walls when using the 1576PLBG 6" Steel Stud Adapter Kit. The 1562 allows architects and designers to specify large room dividing openings with minimum wall obstruction for "clean and open" living spaces. The 1562 Frame Kit is factory configured to accept most standard door sizes and packaged for easy transport and fast installation in either bypass pocket door or converging bypass pocket door applications.

$
525.21 Each
$750.30
SAVE 30%
Ends Jun 12

Maximum Door Size:

Closing Type:

Product Info Wheel Diameter: 1 Inch, Stud Wall Size: 2" x 6", Country of Origin: USA, Mount Type: Top-Mount, Track Finish: Aluminum, See more product details
Qty:       Each


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Wheel Diameter : 1 Inch
  • Max Door Height : 6 Ft 8 Inch
  • Max Door Width : 2 Ft 6 Inch
  • Door Thickness : 1 Inch - 3 Inch
  • Maximum Door Size : 30" x 80"
  • Stud Wall Size : 2" x 6"
  • Key Features : Shallow Pocket Wide Openings: Ideal for applications where wall structure or obstacles do not allow a deep pocket
    Time Saver: The factory measured and fabricated 1562 installs quickly into standard 2 Inch x 6 Inch stud walls
    Standard Door Sizes: The 1562 accepts standard 1-3/8 Inch (35mm) door sizes
    Sequential Door Opening: Pull 1st door and the 2nd door follows
    Self Adjusting Floor Brackets: Compensate for settling floors and walls

  • Other Important Info

  • Wheel Type : Nylon Encapsulated Sealed Ball Bearing
  • Steel Component Finish : 12-14 Guage
  • Split Stud Construction : 18 Gauge Cold Rolled Galvanized Steel
  • Country of Origin : USA
  • Product Type : Pocket Door Frame
  • Mount Type : Top-Mount
  • Track Finish : Aluminum
  • Includes : (4) 2066 Soft-Close KITs, allowing both doors to have bi-directional soft-close/open capabilities
  • Closing Type : Soft-Close
  • Track Series : 100
  • Collection : 1562SC
  • Load Rating/Weight Capacity : 200 Lbs
