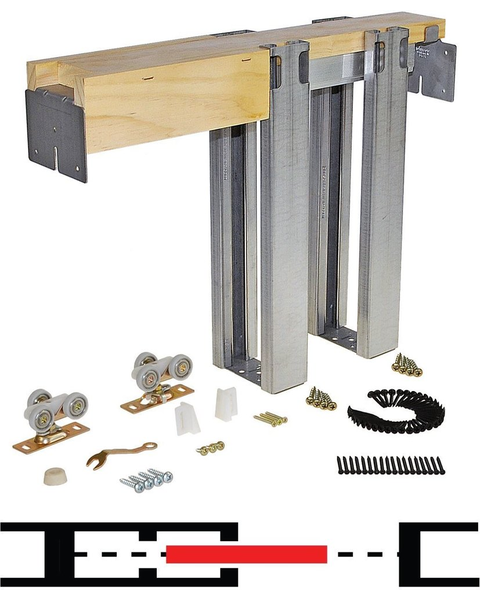

48 Inch x 84 Inch Maximum Door Size Pocket Door Frame Set, 1500 HD Series, 200 Lbs Load Bearing

  Rating 4.8 | 226 Reviews in the past 24 months | Our Item Number JH-154070HD

The 1500HD Series Pocket Door Frame is designed to soft-open and soft-close heavy solid core doors weighing up to 165lbs. Smooth ball bearing hanger wheels combined with soft-closing door operation make the 1500HD one of the finest pocket door installations available. The 1500HD is designed to be quickly installed into prepared 2 x 4 timber frame stud walls or 4" steel framed stud walls. The 1500HD Frame Kit is packaged for easy transport and fast installation for either single or converging (2) door applications and all frame sizes can be cut down to accommodate custom size doors.

$
231.36 Set
$300.77
SAVE 23%
Ends Jun 12
Product Info Stud Wall Size: 2" x 4", Wheel Diameter: 1 Inch, Maximum Door Height: 7 Ft, Maximum Door Width: 4 Ft, Mount Type: Top-Mount, See more product details
Qty:       Set


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Maximum Door Size : 48" x 84"
  • Stud Wall Size : 2" x 4"
  • Door Thickness : 1 Inch - 1-3/4 Inch
  • Wheel Diameter : 1 Inch
  • Key Features : Material: Aluminum, Steel, Wood
    Frame Header Material: Spruce, Pine or Fir
    Zinc Trivalent Plated
    For Commercial/Residential use
    Limited Lifetime Warranty

  • Other Important Info

  • Product Type : Pocket Door Frame & Hardware Kit
  • Maximum Door Height : 7 Ft
  • Maximum Door Width : 4 Ft
  • Track Finish : Mill Aluminum
  • Mount Type : Top-Mount
  • Class : Heavy Duty
  • Split Stud Construction : 18 Gauge Cold Rolled Galvanized Steel
  • Wheel Type : Nylon Encapsulated Sealed Ball Bearing
  • Collection : 1500 HD
  • Steel Component Finish : 12-14 Guage
  • Load Capacity : 200 Lbs
  • Country Of Origin : USA

  • Manufacturer Resources
