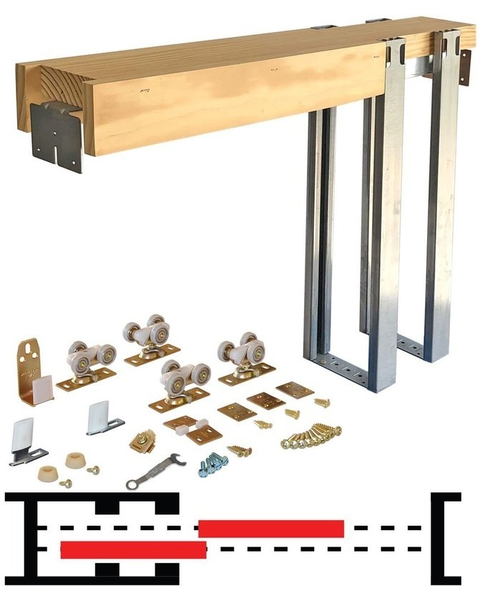

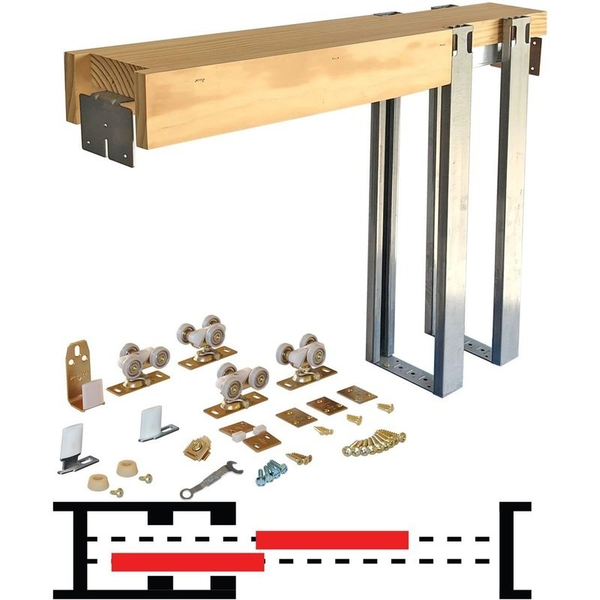

24 Inch x 96 Inch Maximum Door Size Soft-Close Bypass Pocket Door Frame Set, 1562SC Series, 200 Lbs Load Bearing
Product Discontinuation AlertThis item has left our catalog. It's either upgraded to a newer model, didn't meet our high customer satisfaction standards, or the manufacturer said goodbye. But don't worry, CabinetParts is always here with top-notch alternatives.All the product info you could ask for...
-
Size Info
- Door Thickness : 1 Inch - 3 Inch
- Maximum Door Size : 24" x 96"
- Stud Wall Size : 2" x 6"
- Key Features : Shallow Pocket Wide Openings: Ideal for applications where wall structure or obstacles do not allow a deep pocket
Time Saver: The factory measured and fabricated 1562 installs quickly into standard 2 Inch x 6 Inch stud walls
Standard Door Sizes: The 1562 accepts standard 1-3/8 Inch (35mm) door sizes
Sequential Door Opening: Pull 1st door and the 2nd door follows
Self Adjusting Floor Brackets: Compensate for settling floors and walls - Wheel Diameter : 1 Inch
-
Manufacturer Info
- Manufacturer : Johnson Hardware
- Manufacturer Part # : 15622080SC
-
Other Important Info
- Product Type : Pocket Door Frame
- Max Door Height : 8 Ft
- Max Door Width : 2 Ft
- Mount Type : Top-Mount
- Track Finish : Aluminum
- Includes : (4) 2066 Soft-Close KITs, allowing both doors to have bi-directional soft-close/open capabilities
- Closing Type : Soft-Close
- Track Series : 100
- Collection : 1562SC
- Load Rating/Weight Capacity : 200 Lbs
- Wheel Type : Nylon Encapsulated Sealed Ball Bearing
- Steel Component Finish : 12-14 Guage
- Split Stud Construction : 18 Gauge Cold Rolled Galvanized Steel
- Country of Origin : USA
