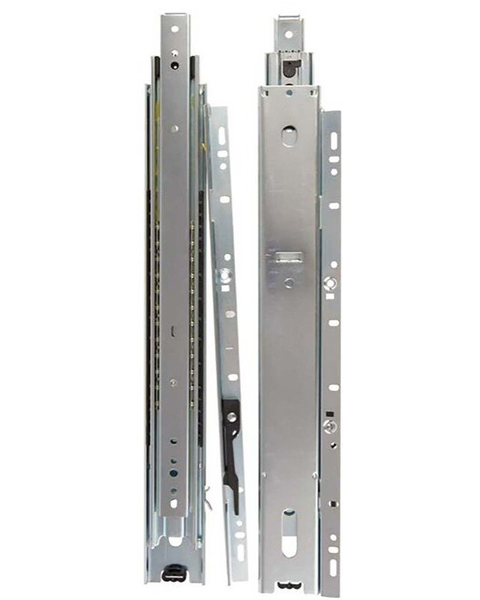

Loading from Primary Photo

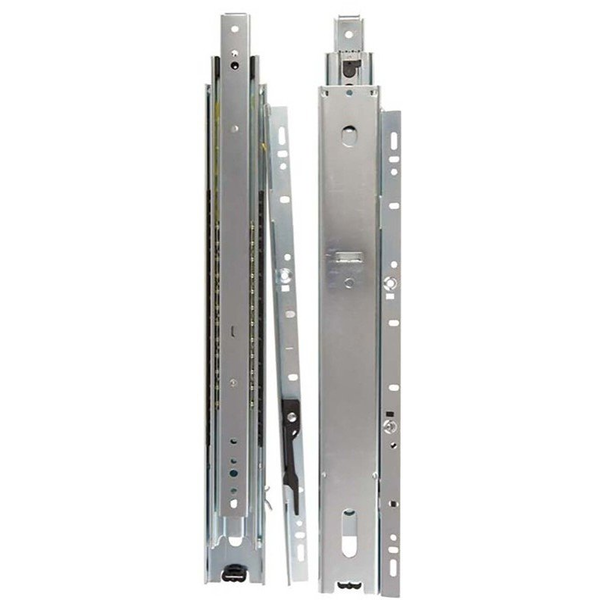

16 Inch Length Overtravel Side Mount Drawer Slide With 125 Lbs Capacity Bulk, Pair, Zinc

  Rating 4.5 | 658 Reviews in the past 24 months | Our Item Number KV-6505B-16

The 6505 Over Travel Drawer Slide with Quick Disconnect Rail is designed to acccommodate wider and heavier drawers for today's changing trends in the home and workplace. It features a 125 Lbs load capacity, supports box or file drawer applications where wider draweres and heavier weight loads are required. Features a rail disconnect for easy drawer removal and a closed position hold-in detent that holds teh drawer closed to avoid bounce back. Recommended for drawerse up to 30 Inch wide.

$
35.43 Pair
$50.62
SAVE 30%
Ends Jul 18

Length:

Need Help? Contact Us Now
Product Info Length: 16 Inch, Width: 1/2 Inch, Height: 1-15/16 Inch, Clearance: .50" +.03" - 0", Class: Heavy Duty, See more product details
Qty:       Pair


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Length : 16 Inch
  • Width : 1/2 Inch
  • Height : 1-15/16 Inch
  • Clearance : .50" +.03" - 0"

  • Manufacturer Info

  • Manufacturer Series Name : 6500
  • Manufacturer : Knape and Vogt
  • Manufacturer Part # : 6505B 16
  • Manufacturer Finish : Zinc

  • Other Important Info

  • Class : Heavy Duty
  • Includes : (1) Left + Right drawer slide
  • Required for Install : Installation screws
  • Closing Type : Overtravel
  • Disconnect Style : Lever
  • Load Rating/Weight Capacity : 125 Lbs
  • Key Features : 125 Lbs class full extension drawer slide supports box or file drawer applications where wider drawers and heavier weight loads are required
    Features an unhanded design, a lever disconnect for easy drawer removal and a closed position hold-in detent that holds the drawer closed to avoid bounce back
  • Product Type : Side Mount Slide
  • Mount Type : Sidemount
  • Product Finish : Zinc
  • Material : Steel
  • Push To Open : No
  • Cabinet Type : Frameless or Face Frame (FF requires brackets)

  • Manufacturer Resources
