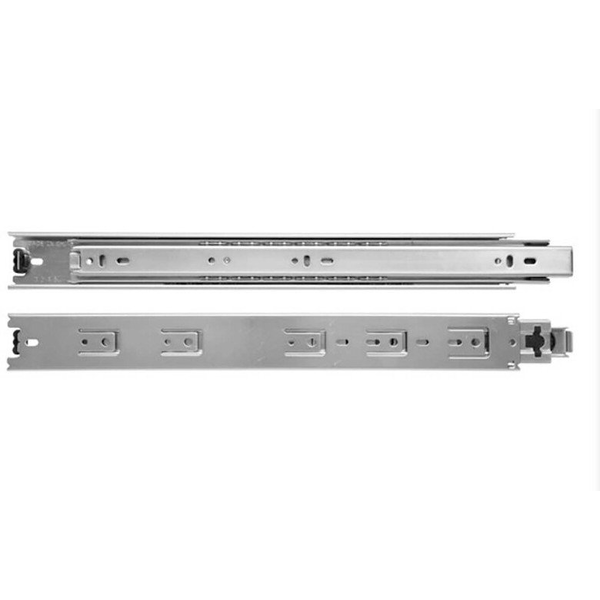

10 Inch Length TruTrac Full Extension Side Mount Drawer Slide With 100 Lbs Weight Capacity, Pair, Zinc

  Rating 4.5 | 659 Reviews in the past 24 months | Our Item Number KV-TT100B-250

The KV Tru-Trac TT100 Full Extension Drawer Slide is a 100 Lbs class medium duty side-mount unit that is ideal for face-frame or frameless construction. Features include 32mm and traditional hole patterns, lever disconnect, hold-in detent to prevent bounce back and non-handed design. It is available in zinc finish in lengths from 10 Inch to 28 Inch

$
8.45 Pair
$8.28/ea for 10
$12.07
SAVE 30%
Ends Oct 07

Drawer Length:

Need Help? Contact Us Now
Product Info Width: 1/2 Inch, Height: 1-13/16 Inch, Drawer Length: 10 Inch, Clearance: .50" +.03" - 0", Mount Type: Sidemount, See more product details
Qty:       Pair
  or
PRO Packs ™
Save more! Buy a Pro Pack.



Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Width : 1/2 Inch
  • Height : 1-13/16 Inch
  • Drawer Length : 10 Inch
  • Clearance : .50" +.03" - 0"
  • Key Features : Ideal for face-frame or frameless construction
    32mm and traditional hole pattern
    Features include 32mm and traditional hole patterns, lever disconnect, hold-in detent to prevent bounce back and non-handed design
    Lever disconnect for easy drawer removal
    Recommended maximum drawer width 24 Inch
    It is available in zinc finish in lengths from 10 Inch to 28 Inch

  • Manufacturer Info

  • Manufacturer : Knape and Vogt
  • Manufacturer Part # : TT100B 250
  • Manufacturer Finish : Zinc
  • Manufacturer Series Name : TT100

  • Other Important Info

  • Product Type : Drawer Slides
  • Mount Type : Sidemount
  • Product Finish : Zinc
  • Material : Steel
  • Push To Open : No
  • Cabinet Type : Frameless or Face Frame (FF requires brackets)
  • Includes : (1) Left + Right slide
  • Required for Install : Installation screws
  • Closing Type : Manual
  • Extension : Full
  • Disconnect Style : Lever Release
  • Class : Medium Duty
  • Load Rating/Weight Capacity : 100 Lbs

  • Manufacturer Resources

Back to Top
back to top

Our customers say Knape and Vogt products...

  4.5 out of 5
based on 659 ratings

"These reviews are from our customers who have purchased Knape and Vogt products."
  • 5 of 5 Worked perfectly. September 5th, 2025
    by Steven from Thibodaux, LA

    Very pleased with the operation of the draw slides. Do note, the draw slides do NOT come with screws.

    This review is about a different size/color of this item. (KV-TT100B-700)

    Was this review helpful? yes no

  • 5 of 5 Great Experience February 21st, 2025
    by Albert from Atlanta, GA

    I ordered the wrong item. They quickly helped me to send the wrong item back and get the right one ordered. I just easily finished installing the new one above. Great customer service.

    This review is about a different size/color of this item. (KV-TT100B-600)

    Was this review helpful? yes no

  • 4 of 5 4.5 September 26th, 2024
    by mike from Santa Clarita, CA

    Everything was great,no screws.

    This review is about a different size/color of this item. (KV-TT100B-300)

    Was this review helpful? yes no

  • 5 of 5 very sturdy August 3rd, 2026
    by Scott from Troutville, VA

    These slide Heavy Duty Slide mounts replaced the stock mounts on a cutlery drawer. They are very sturdy and smooth in operation.

    This review is about similar Knape and Vogt Drawer Slides. (KV-8600B-22)

    Was this review helpful? yes no

  • 1 of 1 people found the following review helpful
    1 of 5 NEVER RECIEVED May 4th, 2026
    by Eric from Troy, NY

    We ordered these sliders and the screws needed for installation. WE recieved the screws and told the sliders would be shipped shortly after that. Then recievied an email saying sliders will ship out the following week. Then recieved another email stating that they had to cancel our order.

    This review is about similar Knape and Vogt Drawer Slides. (KV-841712)

    Was this review helpful? yes no

See More Reviews

Reviews about us...

  • 5 of 5 | September 29th, 2026

    They had the replacement part and delivered it quickly. Very happy with Cabinet Parts.

  • 4 of 5 | September 28th, 2026

    I love the heft and look of the bronze plates. My only concern is with the mounting screws. For such a large plate and for security matters the screws are only 1/2 inch long. They would be easy to pry off. I have bought 1 inch screws, (the longest that wo

  • 4 of 5 | September 27th, 2026

    we had significant difficulty deciphering the measurements needed. Cabinet parts develop drawings to illustrate the needed dimensions.

  • 5 of 5 | September 27th, 2026

    And fast shipping . Thank you!

  • 5 of 5 | September 26th, 2026

    I’ve been looking for these parts and you delivered! Thanks

See More Reviews
