Drawer Slides (glides) Side Mount Drawer Slides Side Mount Drawer Slides by Knape and Vogt

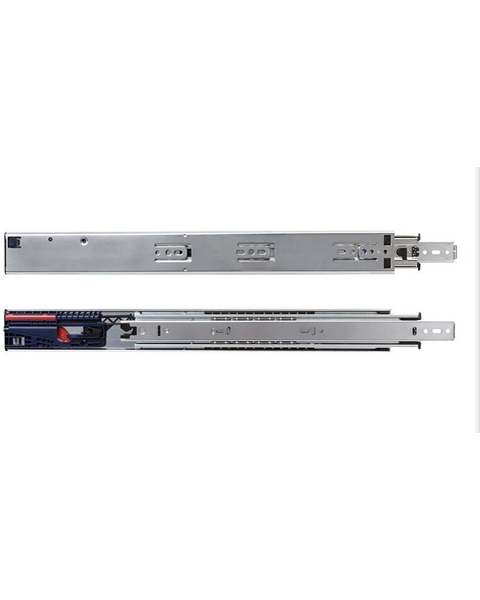

Loading from Primary Photo

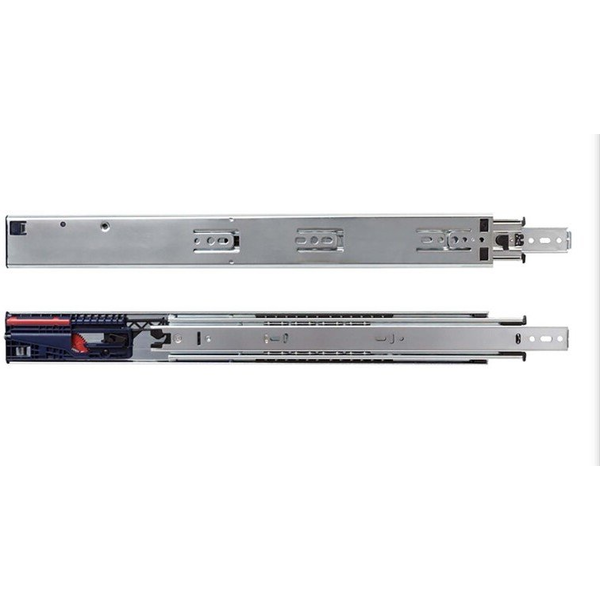

22 Inch Length Soft-Close Full Extension Side Mount Drawer Slide With 150 Lbs Weight Capacity, Pair, Zinc

  Rating 4.5 | 658 Reviews in the past 24 months | Our Item Number KV-8650FMB-22

The 8650FM Soft-Close Full Extension Drawer Slide is designed to accommodate wider and heavier drawers and has a shorter profile vs traditional lateral file slides and features a lever disconnect. This 150 Lbs class soft-close heavy-duty full extension drawer slide features an unhanded design that is ideal for wide drawers with heavy loads. A lever disconnect allows for easy drawer removal and a hold-in detent ensures effective closure without bounce back. Recommended for drawers up to 36 Inch wide.

$
58.99 Pair
$58.11/ea for 5 $57.52/ea for 10
$84.28
SAVE 30%
Ends Aug 05

Length:

Need Help? Contact Us Now
Product Info Width: 1/2 Inch, Height: 2 Inch, Length: 22 Inch, Clearance: .50" +.03" - 0", Closing Type: Soft Closing, See more product details
Qty:       Pair
  or
PRO Packs ™
Save more! Buy a Pro Pack.




Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Width : 1/2 Inch
  • Height : 2 Inch
  • Length : 22 Inch
  • Clearance : .50" +.03" - 0"

  • Manufacturer Info

  • Manufacturer : Knape and Vogt
  • Manufacturer Part # : 8650FMB 22
  • Manufacturer Finish : Zinc
  • Manufacturer Series Name : 8650FM

  • Other Important Info

  • Closing Type : Soft Closing
  • Extension : Full
  • Disconnect Style : Butterfly Lever
  • Class : Heavy Duty
  • Load Rating : 150 Lbs
  • Key Features : 150 Lbs class Soft-Close Heavy-Duty full extension drawer slide features an unhanded design that is ideal for wide drawers with heavy loads
    A lever disconnect allows for easy drawer removal and a hold-in detent ensures effective closure without bounce back
  • Product Type : Drawer Slides
  • Mount Type : Sidemount
  • Product Finish : Zinc
  • Material : Steel
  • Push To Open : No
  • Cabinet Type : Frameless or Face Frame (FF requires brackets)
  • Includes : (1) Left + Right slide
  • Required for Install : Installation screws

  • Manufacturer Resources
