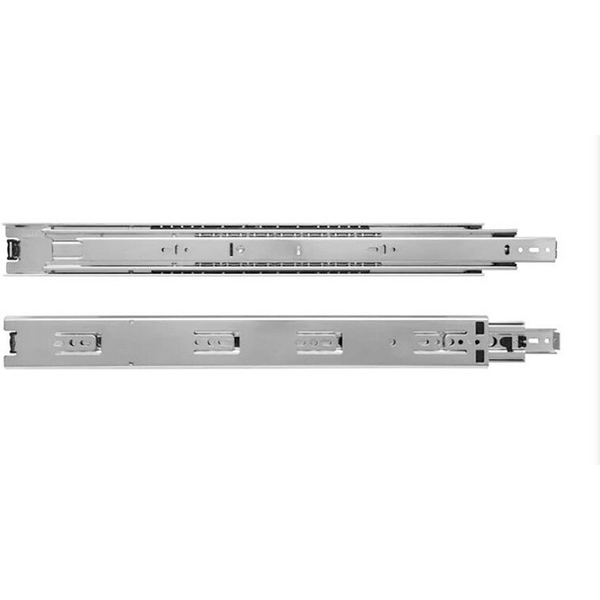

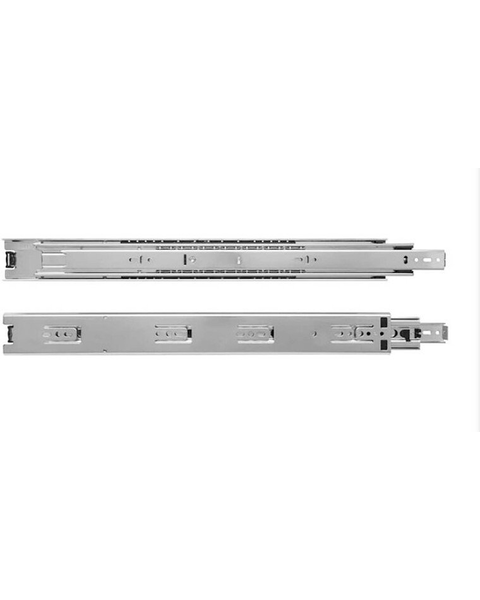

20 Inch Length Heavy Duty Full Extension Side Mount Drawer Slide With 150 Lbs Weight Capacity, Pair, Zinc

  Rating 4.5 | 660 Reviews in the past 24 months | Our Item Number KV-8600B-20

The 8600 Full Extension Drawer Slide is designed to accommodate wider and heavier drawers and has a shorter profile vs traditional lateral file slides and features a lever disconnect. This 150 Lbs class heavy-duty full extension drawer slide features an unhanded design that is ideal for wide drawers with heavy loads. A butterfly lever disconnect allows for easy drawer removal and a hold-in detent ensures effective closure without bounce back. Recommended for drawers up to 36 Inch wide.

$
40.53 Pair
$39.72/ea for 5
$57.90
SAVE 30%
Ends Nov 21

Drawer Length:

Need Help? Contact Us Now
Product Info Width: 1/2 Inch, Height: 2 Inch, Drawer Length: 20 Inch, Clearance: .50" +.03" - 0", Mount Type: Sidemount, See more product details
Qty:       Pair
  or
PRO Packs ™
Save more! Buy a Pro Pack.



Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart

All the product info you could ask for...

  • Size Info

  • Width : 1/2 Inch
  • Height : 2 Inch
  • Drawer Length : 20 Inch
  • Clearance : .50" +.03" - 0"
  • Manufacturer Info

  • Manufacturer : Knape and Vogt
  • Manufacturer Part # : 8600B 20
  • Manufacturer Finish : Zinc
  • Manufacturer Series Name : 8600
  • Other Important Info

  • Product Type : Drawer Slides
  • Mount Type : Sidemount
  • Product Finish : Zinc
  • Material : Steel
  • Push To Open : No
  • Cabinet Type : Frameless or Face Frame (FF requires brackets)
  • Includes : (1) Left + Right slide
  • Required for Install : Installation screws
  • Closing Type : Manual
  • Extension : Full
  • Disconnect Style : Butterfly Lever
  • Class : Heavy Duty
  • Load Rating/Weight Capacity : 150 Lbs
  • Key Features : 150 Lbs class Heavy-Duty full extension drawer slide features an unhanded design that is ideal for wide drawers with heavy loads
    A butterfly lever disconnect allows for easy drawer removal and a hold-in detent ensures effective closure without bounce back
  • Manufacturer Resources

Our customers say Knape and Vogt products...

  4.5 out of 5
based on 660 ratings

"These reviews are from our customers who have purchased Knape and Vogt products."
  • 5 of 5 very sturdy August 3rd, 2026
    by Scott from Troutville, VA

    These slide Heavy Duty Slide mounts replaced the stock mounts on a cutlery drawer. They are very sturdy and smooth in operation.

    This review is about a different size/color of this item. (KV-8600B-22)

    Was this review helpful? yes no

  • 2 of 2 people found the following review helpful
    4 of 5 Best Drawer Slides August 4th, 2025
    by Martin from Mount Carmel, TN

    These are Very Nice Slides And I Really Like Them BUT They Should Have Come With Mounting Screws or It Should Be Noted That NO Screws Are Included.

    This review is about a different size/color of this item. (KV-8600B-18)

    Was this review helpful? yes no

  • 1 of 1 people found the following review helpful
    3 of 5 Wrong part October 6th, 2026
    by Scott from Rockville, MD

    I worked with a specialist to order this part. However the correct part I should have been advised to order would include a "soft" closing capability. I'd like to return the part ordered and have Cabinetparts send me the soft closing version.

    This review is about similar Knape and Vogt Drawer Slides. (KV-840522)

    Was this review helpful? yes no

  • 5 of 5 Great Experience July 3rd, 2026
    by John from Burleson, TX

    I needed to replace the slides on my rubbish draw. Cabinet Parts had exactly what I needed. The website worked well and the order was shipped promptly. Inadvertently one of the slides broke during installation. I contacted customer service, sent them a photo of the defective part. They promptly shipped me a replacement slide. I will absolutely use them the next time.

    This review is about similar Knape and Vogt Drawer Slides. (KV-850522)

    Was this review helpful? yes no

  • 1 of 5 Never received June 12th, 2026
    by Jennifer from Springdale, AR

    Can’t give a good review on a product I haven’t received. Received an email asking to click a link if I received the order, which I haven’t. Have received 2 other emails pushing the ship date out ANOTHER 2 weeks from a different warehouse. My last order was missing an order of screws. I doubt I’ll be using this company again.

    This review is about similar Knape and Vogt Drawer Slides. (KV-840510)

    Was this review helpful? yes no
