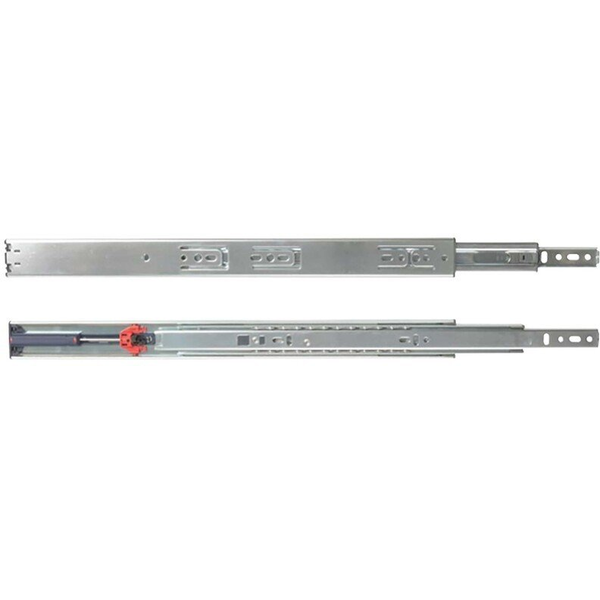

KV 4450 10 Inch Length Soft-Close Side Mount Drawer Slide With 65 Lbs Weight Capacity, Pair, Zinc
The 4450 Full Extension Soft-Close Low Profile Drawer Slide is a 65 Lbs load capacity medium-duty slide designed to accommodate ligher and shallower low height drawers for home and commercial applications. Its features a soft-close module that delivers a secure, dampened closure that eliminates drawer slamming. Features a lever release for easy removal of drawer from cabinet. Recommended for draweres up to 24 Inch wide.
Ends Nov 21
Drawer Length:
Save more! Buy a Pro Pack.
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Height : 1-7/16 Inch
- Drawer Length : 10 Inch
- Clearance : .50" +.03" - 0"
- Key Features : 65 Lbs class low profile Soft-Close full extension drawer slide features a Soft-Close module that delivers a secure, dampened closure that eliminates drawer slamming
Features a lever release for easy removal of drawer from cabinet - Width : 1/2 Inch
-
Manufacturer Info
- Manufacturer Finish : Zinc
- Manufacturer Series Name : 4450
- Manufacturer : Knape and Vogt
- Manufacturer Part # : 4450B 10
-
Other Important Info
- Mount Type : Sidemount
- Product Finish : Zinc
- Material : Steel
- Push To Open : No
- Cabinet Type : Frameless or Face Frame (FF requires brackets)
- Class : Light Duty
- Includes : (1) Left + Right drawer slide
- Required for Install : Installation screws
- Load Rating/Weight Capacity : 65 Lbs
- Product Type : Side Mount Slide
