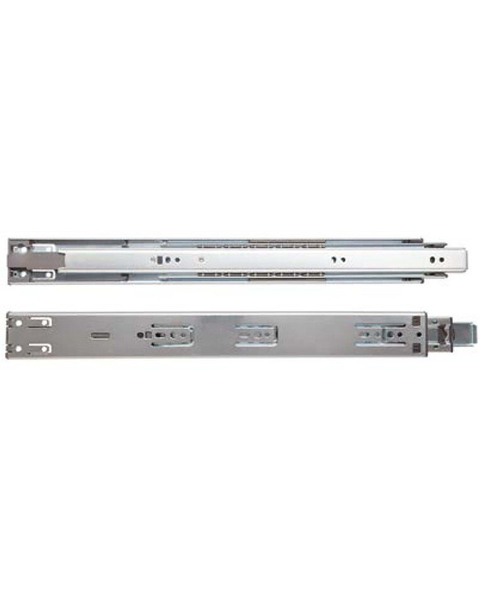

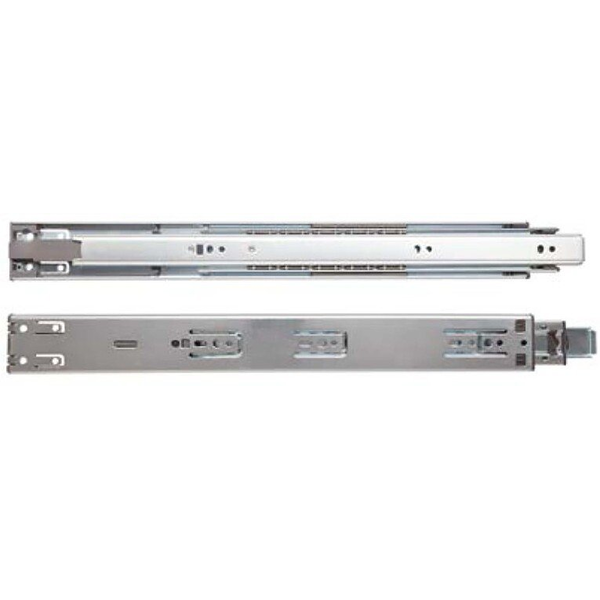

24 Inch Length G-Slide Soft-Close Full Extension Side Mount Drawer Slide With 100 Lbs Weight Capacity, Pair, Zinc

  Rating 4.5 | 658 Reviews in the past 24 months | Our Item Number KV-GS4270-24

The KV GSlide GS4200 Full Extension Drawer Slide is a 100-Lbs class medium duty side-mount unit with telescopic movement on ball bearings. It features 32mm and traditional hole patterns, lever disconnect and non-handed design. It is available in zinc or black finish in lengths from 10 Inch to 28 Inch.

$
24.60 Pair
$35.14
SAVE 30%
Ends Aug 14

Drawer Length:

Need Help? Contact Us Now
Product Info Width: 1/2 Inch, Height: 1-13/16 Inch, Drawer Length: 24 Inch, Clearance: .50" +.03" - 0", Mount Type: Sidemount, See more product details
Qty:       Pair


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Width : 1/2 Inch
  • Height : 1-13/16 Inch
  • Drawer Length : 24 Inch
  • Clearance : .50" +.03" - 0"
  • Key Features : Soft-Close module
    32mm hole pattern
    Lever disconnect for easy drawer removal
    Non-handed design

  • Manufacturer Info

  • Manufacturer : Knape and Vogt
  • Manufacturer Part # : GS4270 24
  • Manufacturer Finish : Zinc
  • Manufacturer Series Name : GS4200

  • Other Important Info

  • Product Type : Drawer Slides
  • Mount Type : Sidemount
  • Product Finish : Zinc
  • Material : Steel
  • Push To Open : No
  • Cabinet Type : Frameless or Face Frame (FF requires brackets)
  • Includes : (1) Left + Right slide
  • Required for Install : Installation screws
  • Closing Type : Self-Closing
  • Extension : Full
  • Disconnect Style : Lever Release
  • Class : Medium Duty
  • Load Rating/Weight Capacity : 100 Lbs

  • Manufacturer Resources
