Drawer Slides (glides) Side Mount Drawer Slides Side Mount Drawer Slides by Knape and Vogt
Loading from Primary Photo

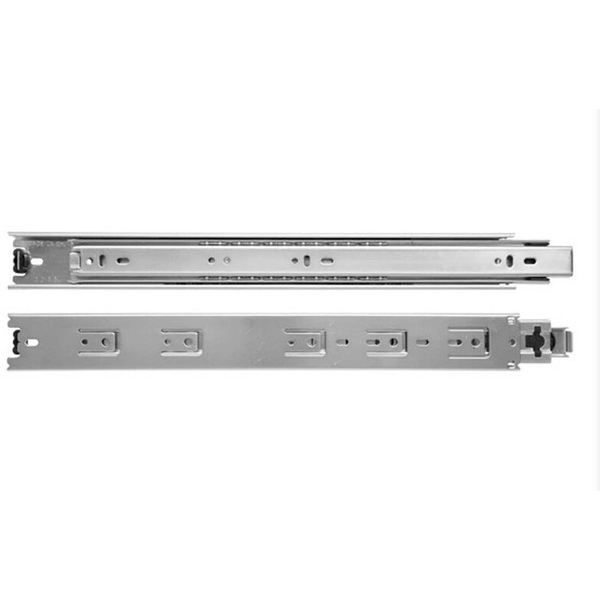

24 Inch Length TruTrac Full Extension Side Mount Drawer Slide With 100 Lbs Weight Capacity, Pair, Zinc

  Rating 4.5 | 657 Reviews in the past 24 months | Our Item Number KV-TT100B-600

The KV Tru-Trac TT100 Full Extension Drawer Slide is a 100 Lbs class medium duty side-mount unit that is ideal for face-frame or frameless construction. Features include 32mm and traditional hole patterns, lever disconnect, hold-in detent to prevent bounce back and non-handed design. It is available in zinc finish in lengths from 10 Inch to 28 Inch

$
14.48 Pair
$20.68
SAVE 30%
Ends Jun 30

Drawer Length:

Need Help? Contact Us Now
Product Info Width: 1/2 Inch, Height: 1-13/16 Inch, Drawer Length: 24 Inch, Clearance: .50" +.03" - 0", Mount Type: Sidemount, See more product details
Qty:       Pair


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Width : 1/2 Inch
  • Height : 1-13/16 Inch
  • Drawer Length : 24 Inch
  • Clearance : .50" +.03" - 0"
  • Key Features : Ideal for face-frame or frameless construction
    32mm and traditional hole pattern
    Features include 32mm and traditional hole patterns, lever disconnect, hold-in detent to prevent bounce back and non-handed design
    Lever disconnect for easy drawer removal
    Recommended maximum drawer width 24 Inch
    It is available in zinc finish in lengths from 10 Inch to 28 Inch

  • Manufacturer Info

  • Manufacturer Finish : Zinc
  • Manufacturer Series Name : TT100
  • Manufacturer : Knape and Vogt
  • Manufacturer Part # : TT100B 600

  • Other Important Info

  • Mount Type : Sidemount
  • Product Finish : Zinc
  • Material : Steel
  • Push To Open : No
  • Cabinet Type : Frameless or Face Frame (FF requires brackets)
  • Includes : (1) Left + Right slide
  • Required for Install : Installation screws
  • Closing Type : Manual
  • Extension : Full
  • Disconnect Style : Lever Release
  • Class : Medium Duty
  • Load Rating/Weight Capacity : 100 Lbs
  • Product Type : Drawer Slides

  • Manufacturer Resources
