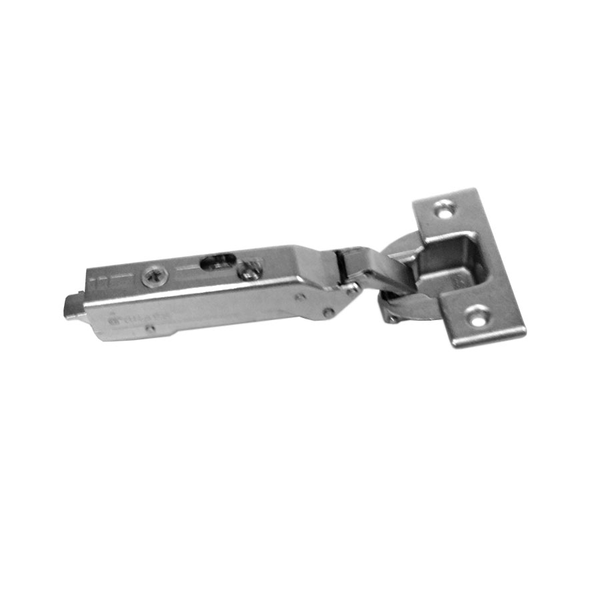

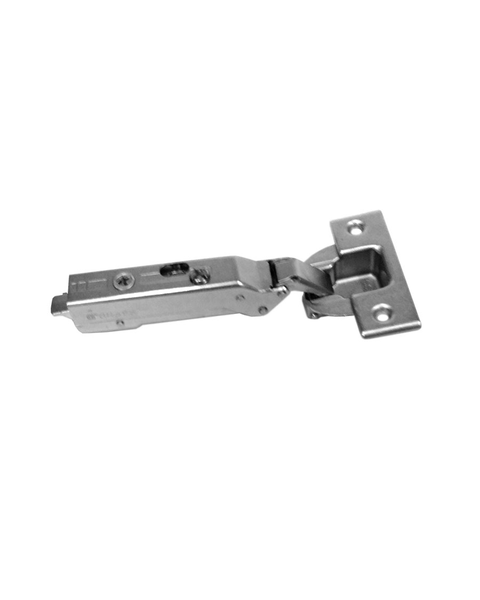

Grass Tiomos Full Overlay Hinge Soft Close Hinge, 120 Degree Opening Angle, Screw-on Mounting

  Rating 4.5 | 285 Reviews in the past 24 months | Our Item Number GHA28138547

Experience premium performance with Grass Tiomos 110° and 120° hinges, built for smooth, quiet motion and precision adjustment. Featuring a 1/2" (12.6mm) cup depth, these hinges accommodate a wide range of door thicknesses. Overlay is easily adjusted by selecting from a variety of mounting plate heights, ensuring a perfect fit for any cabinet configuration. For added control in tight spaces, optional angle restriction clips limit the door opening to prevent over-extension. Tiomos hinges are available in soft-close and self-closing versions, and combine flexibility and durability in one sleek solution.

$
7.99
$7.75/ea for 150
$11.41
SAVE 30%
Ends Nov 03

Degree of Opening / Overlay:

Mounting Type / Closing Type:

Product Info Bore Diameter: 35MM, Cup Depth: .50", Hinge Screw Spacing: 45MM, Overlay: Full Overlay, Degree of Opening: 120, See more product details
Helpful Tip TIP: HINGES ARE COMPLICATED: Use our FREE TOOL to buy the correct hinge and mounting plate. Start Now
Qty:
  or
PRO Packs ™
Save more! Buy a Pro Pack.



Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Bore Diameter : 35MM
  • Cup Depth : .50"
  • Hinge Screw Spacing : 45MM

  • Manufacturer Info

  • Manufacturer : Grass
  • Manufacturer Part # : F028138547228

  • Other Important Info

  • Degree of Opening / Overlay : 120 Degree / Full Overlay
  • Overlay : Full Overlay
  • Degree of Opening : 120
  • Product Type : Long Arm Hinge
  • Product Finish : Nickel Plated
  • Material : Steel
  • Mounting Type : Screw On
  • Cabinet Application : Frameless
  • Closing Type : Soft Closing
  • Note : Warning: Tiomos Series Mounting Plate Required for Installation
  • Includes : (1) Hinge
  • Mounting Type / Closing Type : Screw On / Soft Closing

  • Manufacturer Resources

Back to Top
back to top

Our customers say Grass products...

  4.5 out of 5
based on 285 ratings

"These reviews are from our customers who have purchased Grass products."
  • 3 of 5 Grass soft close hinges April 7th, 2019
    by Linda from Excelsior, MN

    (no comment given)

    Was this review helpful? yes no

  • 4 of 5 Good hinge August 28th, 2026
    by Joyce from Louisville, KY

    The hinge on our most used cabinet door finally wore out after twenty plus years. I found what I needed at Cabinet Parts and was able to replace it myself after watching a YouTube video.

    This review is about a different size/color of this item. (GHA28138548)

    Was this review helpful? yes no

  • 2 of 5 Close, but no cigar August 25th, 2026
    by James from Saugus, MA

    I purchased this item as a replacement for an older model. Alas, the mounting holes did not quite align with the older model. I will perform some minor metalwork and try to make do with it, because the hardware does do exactly what I want, but as a drop-in replacement for an older model, it's close, but no cigar.

    This review is about a different size/color of this item. (GHA45138457)

    Was this review helpful? yes no

  • 4 of 5 Better Than Expected June 24th, 2026
    by Robert from Williamsport, PA

    I was a bit concerned when I first started this project. Our existing cabinet hinges are over 25 years old, installed during our original kitchen remodel, and we had no original documentation for reference. The support team was excellent; they guided me through taking the necessary measurements and photos, and ultimately, they identified the perfect replacements. The hinges fit perfectly without the need for any additional drilling or adjustments. Thank you for the great support!

    This review is about a different size/color of this item. (GHA28138519)

    Was this review helpful? yes no

  • 3 of 5 Close but no cigar March 4th, 2026
    by Bernard from Yorktown Heights, New York

    The part itself is fine, but it is listed by the manufacturer as being a replacement for a discontinued older version, part #1006-30 manufactured by Grass. The new hinge in unfortunately too close to being a match, but not a match. The screw holes for mounting the part are half a screw width wider than those for the original part, so they cannot be used, and the overlap makes drilling new holes impossible. You would have to patch the prior mounting holes and then attempt to drill new ones half overlapping your fill. Like I said, close but no cigar, so I only recommend these hinges for new applications where they would be fine.

    This review is about a different size/color of this item. (GHA28138519)

    Was this review helpful? yes no
