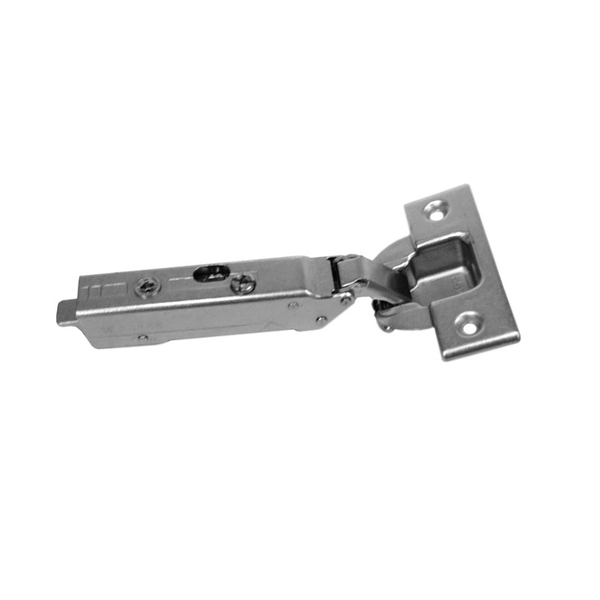

Grass Tiomos Standard Full Overlay Hinge Soft Close Hinge, 120 Degree Opening Angle, Screw-on Mounting (Replacement for 1006-30. 3803 ** See Details)
Experience premium performance with Grass Tiomos 110° and 120° hinges, built for smooth, quiet motion and precision adjustment. Featuring a 1/2" (12.6mm) cup depth, these hinges accommodate a wide range of door thicknesses. Overlay is easily adjusted by selecting from a variety of mounting plate heights, ensuring a perfect fit for any cabinet configuration. For added control in tight spaces, optional angle restriction clips limit the door opening to prevent over-extension. Tiomos hinges combine flexibility, durability, and soft-close comfort in one sleek solution.
Ends Sep 01
Degree of Opening / Overlay:
Mounting Type / Closing Type:
Save more! Buy a Pro Pack.
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Bore Diameter : 35MM
- Cup Depth : .50"
- Hinge Screw Spacing : 45MM
-
Manufacturer Info
- Manufacturer : Grass
- Manufacturer Part # : F028138548228
-
Other Important Info
- Overlay : Full Overlay
- Degree of Opening : 120
- Product Type : Long Arm Hinge
- Degree of Opening / Overlay : 120 Degree / Standard Overlay
- Mounting Type / Closing Type : Screw On / Soft Closing
- Product Finish : Nickel Plated
- Material : Steel
- Mounting Type : Screw On
- Cabinet Application : Frameless
- Closing Type : Soft Closing
- Replacement for : **1006-30, 3803. The two screw holes that fasten the hinge will not line up with your existing screw holes, and new holes will have to be drilled. The hinge and base plate (one piece now) will work fine.
- Note : Warning: Tiomos Series Mounting Plate Required for Installation
- Includes : (1) Hinge
Manufacturer Resources
If Measured Overlay is 16-17MM (5/8"-11/16") use these Mounting Plates for Frameless Applications
If Measured Overlay is 13MM (1/2") use these Mounting Plates for Frameless Applications
If Measured Overlay is 6-6.5MM (1/4") use these Mounting Plates for Frameless Applications
If door is flush with Cabinet Box or Frame use these Mounting Plates for Frameless Inset Applications
If Measured Overlay is 16MM (5/8") use these Mounting Plates for Face Frame Applications
If Measured Overlay is 13MM (1/2") use these Mounting Plates for Face Frame Applications
Installation Hardware
