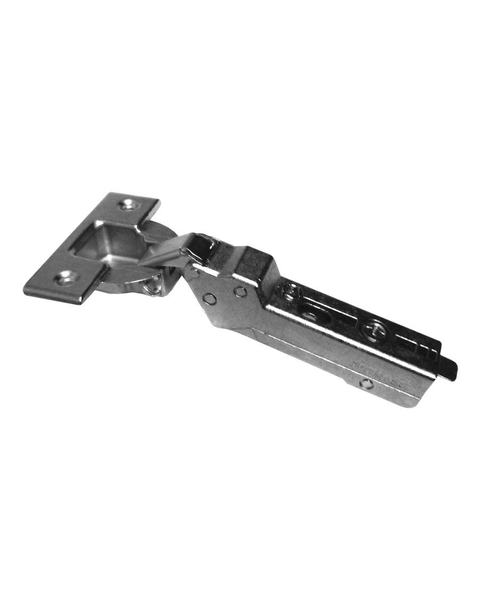

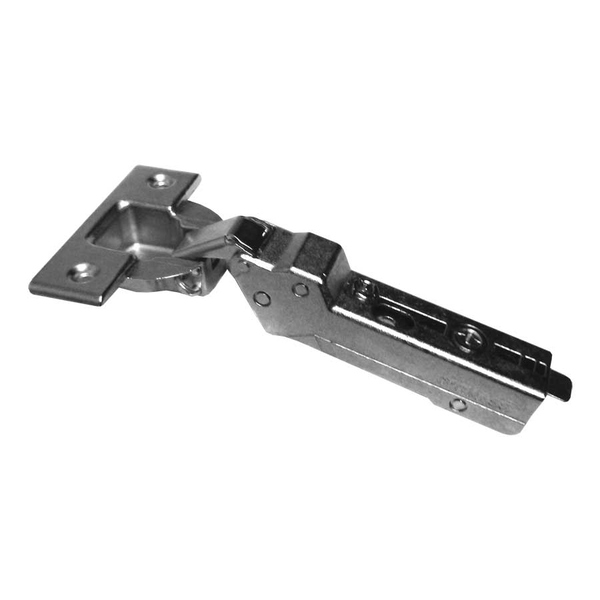

Grass Tiomos Partial Overlay Overlay Self-Close (Spring) Hinge, 120 Degree Opening Angle, Screw-on Mounting (Replacement for 3804 ** See Details)

  Rating 4.5 | 283 Reviews in the past 24 months | Our Item Number GHA45138487

Experience premium performance with Grass Tiomos 110° and 120° hinges, built for smooth, quiet motion and precision adjustment. Featuring a 1/2" (12.6mm) cup depth, these hinges accommodate a wide range of door thicknesses. Overlay is easily adjusted by selecting from a variety of mounting plate heights, ensuring a perfect fit for any cabinet configuration. For added control in tight spaces, optional angle restriction clips limit the door opening to prevent over-extension. Tiomos hinges are available in soft-close and self-closing versions, and combine flexibility and durability in one sleek solution.

$
4.49
$4.36/ea for 150
$6.41
SAVE 30%
Ends Jul 18

Degree of Opening / Overlay:

Mounting Type / Closing Type:

Product Info Bore Diameter: 35MM, Hinge Screw Spacing: 45MM, Cup Depth: .50", Overlay: Partial Overlay, Degree of Opening: 120, See more product details
Helpful Tip TIP: HINGES ARE COMPLICATED: Use our FREE TOOL to buy the correct hinge and mounting plate. Start Now
Order Qty:
  or
PRO Packs ™
Save more! Buy a Pro Pack.



Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Bore Diameter : 35MM
  • Hinge Screw Spacing : 45MM
  • Cup Depth : .50"

  • Manufacturer Info

  • Manufacturer : Grass
  • Manufacturer Part # : F045138487228

  • Other Important Info

  • Replacement for : **3804. The two screw holes that fasten the hinge will not line up with your existing screw holes, and new holes will have to be drilled. The hinge and base plate (one piece now) will work fine.
  • Cabinet Application : Frameless
  • Degree of Opening / Overlay : 120 Degree / Partial Overlay
  • Overlay : Partial Overlay
  • Degree of Opening : 120
  • Product Type : Long Arm Hinge
  • Mounting Type / Closing Type : Screw On / Self Closing
  • Material : Steel
  • Product Finish : Nickel Plated
  • Mounting Type : Screw On
  • Closing Type : Self Closing
  • Includes : (1) Hinge
  • Notes : Warning: Tiomos series baseplate required for use

  • Manufacturer Resources

Back to Top
back to top

Our customers say Grass products...

  4.5 out of 5
based on 283 ratings

"These reviews are from our customers who have purchased Grass products."
  • 5 of 5 Good product February 11th, 2017
    by Benjamin from Mobile, AL

    (no comment given)

    Was this review helpful? yes no

  • 4 of 5 easy to work with January 3rd, 2014
    by Jack from Paradise Valley, AZ

    These hinges are similar in appearance to other "Euro style" hinges however the means to clip the hinge to the base is easier on these than most other hinges I have used. The clasp is easy to find and release as well as easy to snap on with a positive "click" so you know it is in place.

    Was this review helpful? yes no

  • 4 of 5 Better Than Expected June 24th, 2026
    by Robert from Williamsport, PA

    I was a bit concerned when I first started this project. Our existing cabinet hinges are over 25 years old, installed during our original kitchen remodel, and we had no original documentation for reference. The support team was excellent; they guided me through taking the necessary measurements and photos, and ultimately, they identified the perfect replacements. The hinges fit perfectly without the need for any additional drilling or adjustments. Thank you for the great support!

    This review is about a different size/color of this item. (GHA28138519)

    Was this review helpful? yes no

  • 3 of 5 Close but no cigar March 4th, 2026
    by Bernard from Yorktown Heights, New York

    The part itself is fine, but it is listed by the manufacturer as being a replacement for a discontinued older version, part #1006-30 manufactured by Grass. The new hinge in unfortunately too close to being a match, but not a match. The screw holes for mounting the part are half a screw width wider than those for the original part, so they cannot be used, and the overlap makes drilling new holes impossible. You would have to patch the prior mounting holes and then attempt to drill new ones half overlapping your fill. Like I said, close but no cigar, so I only recommend these hinges for new applications where they would be fine.

    This review is about a different size/color of this item. (GHA28138519)

    Was this review helpful? yes no

  • 1 of 5 Not Good February 12th, 2026
    by John from Rowlett, TX

    (no comment given)

    This review is about a different size/color of this item. (GHA45138500)

    Was this review helpful? yes no
