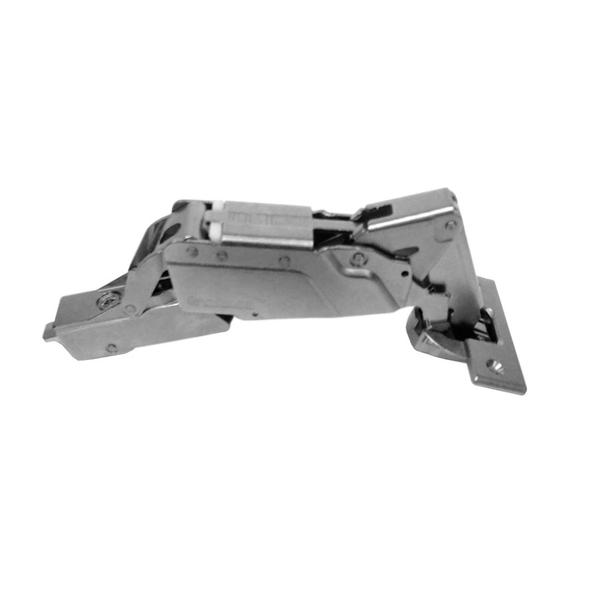

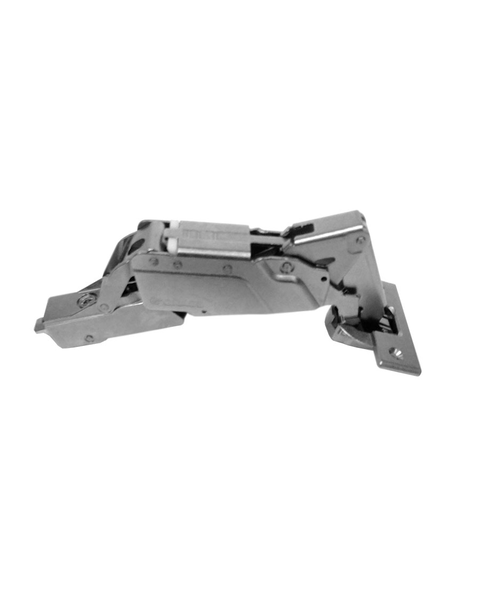

Grass Tiomos Standard Full Overlay Soft-Close (Damper)) Hinge, 160 Degree Opening Angle, Screw-on Mounting (Replacement for 1200, 1203, 3903 ** See Details)
Rating 4.5 | 283 Reviews | Our Item Number GHA28138562
Experience premium performance with Grass Tiomos 110° and 120° hinges, built for smooth, quiet motion and precision adjustment. Featuring a 1/2" (12.6mm) cup depth, these hinges accommodate a wide range of door thicknesses. Overlay is easily adjusted by selecting from a variety of mounting plate heights, ensuring a perfect fit for any cabinet configuration. For added control in tight spaces, optional angle restriction clips limit the door opening to prevent over-extension. Tiomos hinges are available in soft-close and self-closing versions, and combine flexibility and durability in one sleek solution.
$
12.64
$12.26/ea for 50
$18.06
SAVE 30%
Ends Sep 01
Ends Sep 01
Degree of Opening / Overlay:
Mounting Type / Closing Type:
Product Info Bore Diameter: 35MM, Cup Depth: .50", Hinge Screw Spacing: 45MM, Overlay: Full Overlay, Degree of Opening: 160, See more product details
or
Packs ™Save more! Buy a Pro Pack.
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Bore Diameter : 35MM
- Cup Depth : .50"
- Hinge Screw Spacing : 45MM
-
Manufacturer Info
- Manufacturer : Grass
- Manufacturer Part # : F028138562217
-
Other Important Info
- Degree of Opening / Overlay : 160 Degree / Standard Overlay
- Mounting Type / Closing Type : Screw On / Soft Closing
- Product Finish : Nickel Plated
- Overlay : Full Overlay
- Degree of Opening : 160
- Product Type : Long Arm Hinge
- Material : Steel
- Mounting Type : Screw On
- Cabinet Application : Frameless
- Closing Type : Soft Closing
- Note : Warning: Tiomos Series Mounting Plate Required for Installation
- Includes : (1) Hinge
- Replacement for : **1200, 1203, 3903. The two screw holes that fasten the hinge will not line up with your existing screw holes, and new holes will have to be drilled. The hinge and base plate (one piece now) will work fine.
Manufacturer Resources
If Measured Overlay is 16-17MM (5/8"-11/16") use these Mounting Plates for Frameless Applications
Tiomos Screw on Wing Frameless Mounting Plate 0MM Height If Measured Overlay is 13MM (1/2") use these Mounting Plates for Frameless Applications
Tiomos Screw on Wing Frameless Mounting Plate 3MM Height If Measured Overlay is 6-6.5MM (1/4") use these Mounting Plates for Frameless Applications
Tiomos Screw on Wing Frameless Mounting Plate 9.5MM Height If door is flush with Cabinet Box or Frame use these Mounting Plates for Frameless Inset Applications
Tiomos Screw on Wing Frameless Mounting Plate 19MM Height If Measured Overlay is 16MM (5/8") use these Mounting Plates for Face Frame Applications
Tiomos Face Frame Adapter Plate 1.5MM Height If Measured Overlay is 13MM (1/2") use these Mounting Plates for Face Frame Applications
Tiomos Face Frame Adapter Plate 3.5MM Height
Tiomos Face Frame Adapter Plate 3.5MM Height with Lip Installation Hardware
#6 x 5/8 inch Flat Head Hinge Screws (25 Pack)
Professional Self-Centering Vix Bit, Essential Drill Bit for Hinge Installation
#10 x 5/8 inch Pan Head Screws (25 Pack)
35MM Boring Bit Right Hand
Blum #2 Pozi Screwdriver for Hinge Adjustment and Installation Screws Other - 160 Degree European Cabinet Hinges
