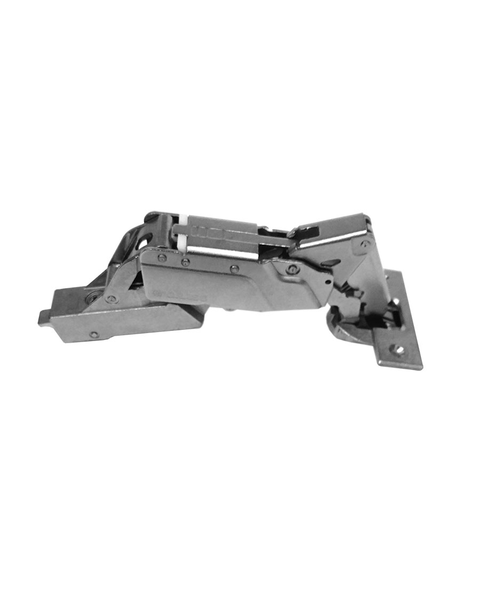

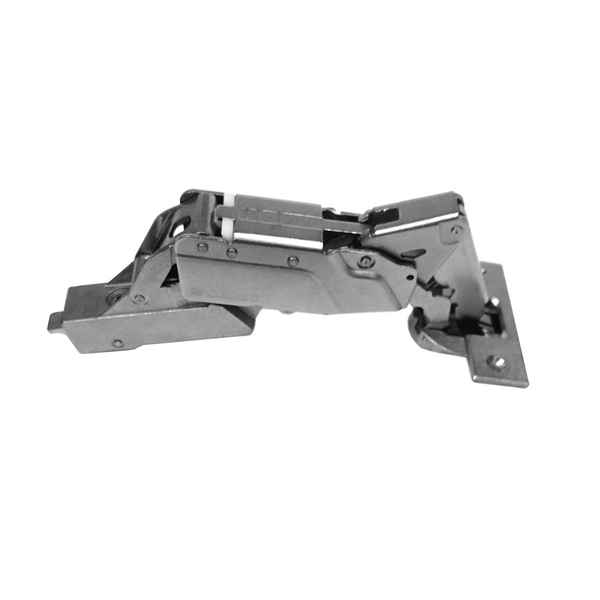

Grass Tiomos Partial Overlay Soft-Close (Damper)) Hinge, 160 Degree Opening Angle, Screw-on Mounting
Rating 4.5 | 282 Reviews | Our Item Number GHA28138563
Experience premium performance with Grass Tiomos 110° and 120° hinges, built for smooth, quiet motion and precision adjustment. Featuring a 1/2" (12.6mm) cup depth, these hinges accommodate a wide range of door thicknesses. Overlay is easily adjusted by selecting from a variety of mounting plate heights, ensuring a perfect fit for any cabinet configuration. For added control in tight spaces, optional angle restriction clips limit the door opening to prevent over-extension. Tiomos hinges are available in soft-close and self-closing versions, and combine flexibility and durability in one sleek solution.
$
13.81
$13.40/ea for 50
$19.73
SAVE 30%
Ends Jun 30
Ends Jun 30
Degree of Opening / Overlay:
Mounting Type / Closing Type:
Product Info Bore Diameter: 35MM, Cup Depth: .50", Hinge Screw Spacing: 45MM, Closing Type: Soft Closing, Includes: (1) Hinge, See more product details
or
Packs ™Save more! Buy a Pro Pack.
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Bore Diameter : 35MM
- Cup Depth : .50"
- Hinge Screw Spacing : 45MM
-
Manufacturer Info
- Manufacturer : Grass
- Manufacturer Part # : F028138563217
-
Other Important Info
- Closing Type : Soft Closing
- Note : Warning: Tiomos Series Mounting Plate Required for Installation
- Includes : (1) Hinge
- Degree of Opening / Overlay : 160 Degree / Partial Overlay
- Mounting Type / Closing Type : Screw On / Soft Closing
- Overlay : Partial Overlay
- Degree of Opening : 160
- Product Type : Long Arm Hinge
- Product Finish : Nickel Plated
- Material : Steel
- Mounting Type : Screw On
- Cabinet Application : Frameless
Manufacturer Resources
If Measured Overlay is 6-6.5MM (1/4") use these Mounting Plates for Frameless Applications
Tiomos Screw on Wing Frameless Mounting Plate 0MM Height If Measured Overlay is 3-3.5MM (1/8") use these Mounting Plates for Frameless Applications
Tiomos Screw on Wing Frameless Mounting Plate 3MM Height If door is flush with Cabinet Box or Frame use these Mounting Plates for Frameless Inset Applications
Tiomos Screw on Wing Frameless Mounting Plate 9.5MM Height If door is flush with Cabinet Box or Frame use these Mounting Plates for Face Frame Inset Applications
Tiomos Face Frame Inset Mounting Plate for Wood Screws, Full-Inset Door when used with Tiomos Partial Overlay Hinge , Nickel If Measured Overlay is 16MM (5/8") use these Mounting Plates for Face Frame Applications
Tiomos Face Frame Adapter Plate 1.5MM Height If Measured Overlay is 13MM (1/2") use these Mounting Plates for Face Frame Applications
Tiomos Face Frame Adapter Plate 3.5MM Height
Tiomos Face Frame Adapter Plate 3.5MM Height with Lip If Measured Overlay is 3-3.5MM (1/8") use these Mounting Plates for Face Frame Applications
Installation Hardware
#6 x 5/8 inch Flat Head Hinge Screws (25 Pack)
Professional Self-Centering Vix Bit, Essential Drill Bit for Hinge Installation
#10 x 5/8 inch Pan Head Screws (25 Pack)
35MM Boring Bit Right Hand
Blum #2 Pozi Screwdriver for Hinge Adjustment and Installation Screws If Measured Overlay is 10MM (3/8") use these Mounting Plates for Frameless Applications
Other - 160 Degree European Cabinet Hinges
Grass Tiomos Standard Full Overlay Self-Close (Spring) Hinge, 160 Degree Opening Angle, Screw-on Mounting (Replacement for 1200, 1203, 3903 ** See Details)
Grass Tiomos Standard Full Overlay Soft-Close (Damper)) Hinge, 160 Degree Opening Angle, Screw-on Mounting (Replacement for 1200, 1203, 3903 ** See Details)
Grass Tiomos Full Overlay Soft-Close (Damper)) Hinge, 160 Degree Opening Angle, Screw-on Mounting
Grass Tiomos Partial Overlay Soft-Close (Damper)) Hinge, 160 Degree Opening Angle, Screw-on Mounting
Grass Tiomos Full Overlay Self-Close (Spring) Hinge, 160 Degree Opening Angle, Screw-on Mounting
Heavy Duty, 160-Degree Opening, Full 15/16” (25mm) Overlay for Large Doors 11/16 to 1-7/16” (18-36mm) Thick, Soft Close, Nickel
Tiomos Impresso 160 Degree Overlay Hinge, Soft Close
Tiomos 160 Degree Screw On Half Overlay Hinge with Dowel, Self Close
Heavy Duty, 160-Degree Opening, Full 15/16” (25mm) Overlay for Large Doors 11/16 to 1-7/16” (18-36mm) Thick, Soft Close, Brown
Tiomos Impresso 160 degree Half Overlay Hinge, Soft Close
Tiomos 160 Degree Screw On Half Overlay Hinge, Self Close
Our customers say Grass products...
4.5 out of 5
based on 282 ratings
based on 282 ratings
"These reviews are from our customers who have purchased Grass products."
- 4 of 5 Nice Hinges March 2nd, 2021
by Travis from Gardner, KSThe hinges themselves are great. I got 10 of them, but one of the ten that was sent wasn't the correct hinge and didn't allow my door to properly close. I'll have to order another of the correct hinge.
- 3 of 5 Close but no cigar March 4th, 2026
by Bernard from Yorktown Heights, New YorkThe part itself is fine, but it is listed by the manufacturer as being a replacement for a discontinued older version, part #1006-30 manufactured by Grass. The new hinge in unfortunately too close to being a match, but not a match. The screw holes for mounting the part are half a screw width wider than those for the original part, so they cannot be used, and the overlap makes drilling new holes impossible. You would have to patch the prior mounting holes and then attempt to drill new ones half overlapping your fill. Like I said, close but no cigar, so I only recommend these hinges for new applications where they would be fine.
This review is about a different size/color of this item. (GHA28138519)
- 1 of 5 Not Good February 12th, 2026
by John from Rowlett, TX(no comment given)
This review is about a different size/color of this item. (GHA45138500)
- 5 of 5 Wood-Mode replacement January 12th, 2026
by Thomas from Endicott, NY, NYI bought these to replace broken MEPLA 652.320.55.00 hinges on my 35 year old Wood-Mode cabinets.
This review is about a different size/color of this item. (GHA28138519)
- 4 of 5 happy November 30th, 2025
by David from Santa Fe, NMThe ordering was easy and shippment came on time
This review is about a different size/color of this item. (GHA28138519)
