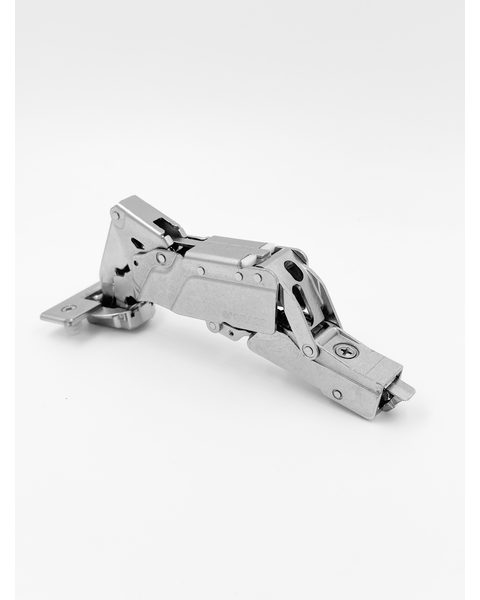

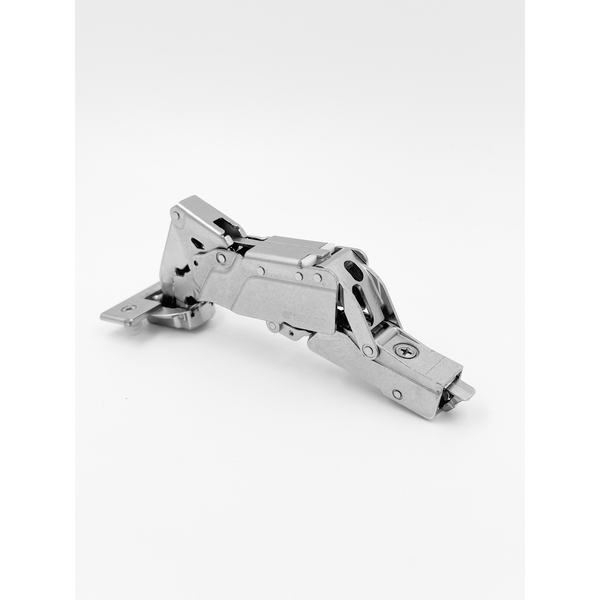

Tiomos 160 Degree Screw On Half Overlay Hinge with Dowel, Self Close

  Rating 4.6 | 1,029 Reviews in the past 24 months | Our Item Number GHA-F045138504217

$
17.49 Each
$17.40/ea for 50
$24.99
SAVE 30%
Ends Sep 19
Product Info Bore Diameter: 35 MM, Hinge Screw Spacing: 45 MM, Max Overlay: 15.5 mm, Max Door Thickness: 32 mm, Cup Depth: 10 mm, See more product details
Helpful Tip TIP: HINGES ARE COMPLICATED: Use our FREE TOOL to buy the correct hinge and mounting plate. Start Now
Qty:       Each
  or
PRO Packs ™
Save more! Buy a Pro Pack.



Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Bore Diameter : 35 MM
  • Hinge Screw Spacing : 45 MM
  • Max Overlay : 15.5 mm
  • Max Door Thickness : 32 mm
  • Cup Depth : 10 mm

  • Manufacturer Info

  • Manufacturer : Grass
  • Manufacturer Part # : F045138504217

  • Other Important Info

  • Product Type : Long Arm Hinge
  • Finish : Nickel
  • Weight : 0.58 lbs
  • Overlay : Half Overlay
  • Closing Type : Self-Closing
  • Collection : Tiomos
  • Mounting Type : Screw On
  • Degree of Opening : 160 Degrees
  • Arm Style : Half Crank
  • Hinge Cup Mounting : Dowels: press-in
  • Note : Warning: Tiomos series baseplate required for use
  • Cabinet Application : Frameless
  • Installation Note : Includes dowels for 3-hole pre-bore; remove for screw-on. #6 × 5/8" flat-head screws required.
