PMI Multi-Purpose Delta Hinge for Lift-Up, Drop-Down, and Lid Applications
Rating 4.6 | 7 Reviews | Our Item Number PMI-810.100.060

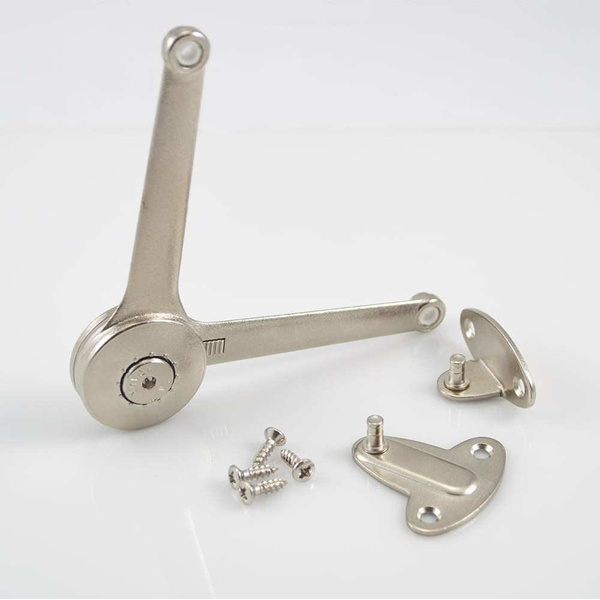

This Unique Flap and Lid Stay from PMI can be used for Lift-Up and Drop-Down Doors and Lids. Used with Standard Cabinet hinges, the uniquely designed Delta Hinge features reliable and adjustable hold positions for both vertical and horizontal applications. The Delta hinge is supplied with the required brackets, screws, and hex key, and is sold individually packaged.
$
16.99 Each
$16.14/ea for 50
$24.27
SAVE 30%
Ends Oct 07
Ends Oct 07
Product Info Material: Nickel, See more product details
or
Packs ™Save more! Buy a Pro Pack.
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Manufacturer Info
- Manufacturer : Peter Meier
- Manufacturer Part # : 810.100.060
-
Other Important Info
- Product Type : Delta Hinge
- Key Features : Delta Hinge
Lift-up or drop-down hinged doors and lids
Adjustable hold positions
Unique design offers stylish lines and reliability
Includes: hinge, brackets, screws and hex key - Material : Nickel
- Includes : Hinge, brackets, screws,and hex key
