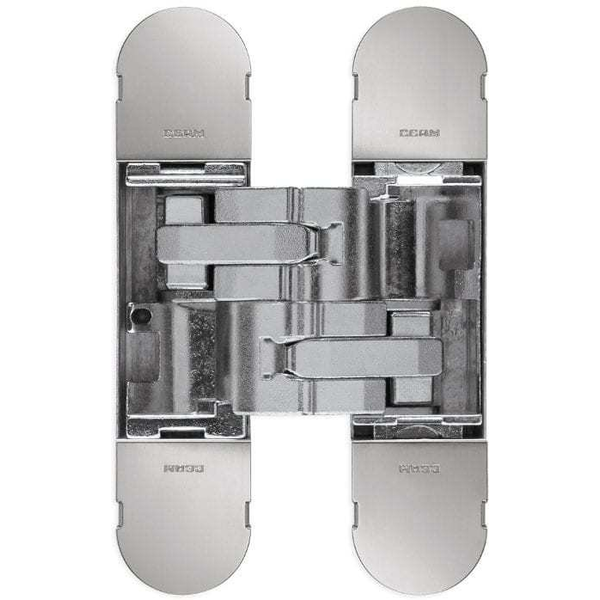

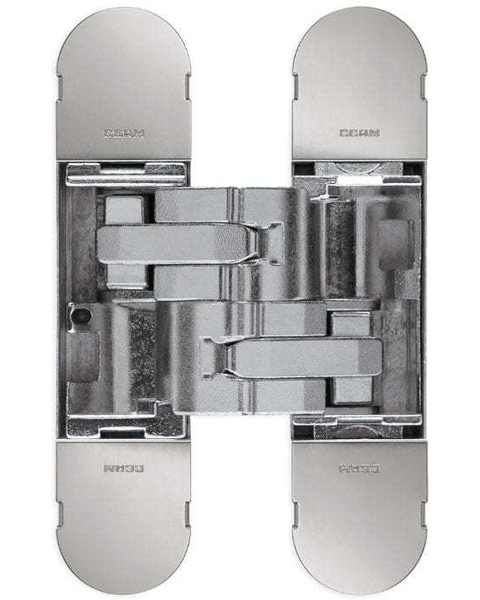

PMI 3-Way Adjustable Invisible Hinge, Door Thickness 1-7/16” (35mm) to 1-13/16” (45mm), Screw Covers Included, 1-3/16” (30mm) W x 5-1/8”(128mm) L x 13/16” (21mm) D, Nickel Plated
Rating 4.6 | 7 Reviews | Our Item Number PMI-HI-C1230NK
The PMI 3D hinges come in a variety of finishes to complement any door. The perfect symmetry between the 2 sides of the hinge allows for a complete reversibility. 5 different models are available for you to choose from and are compatible with wooden, aluminum, and steel
$
38.99
$37.04/ea for 3
$55.70
SAVE 30%
Ends Jun 30
Ends Jun 30
Finish: Nickel Plated
Product Info Country of Origin: Italy, Collection: 1230, Fireproof: 30 Minutes, Series: 1230, Material: Zinc, See more product details
or
Packs ™Save more! Buy a Pro Pack.
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Key Features : Fluid opening 180 Degrees
Easy adjustable in 3 Dimensional or Fixed
Complete reversibility due to perfect symmetry between the 2 sides of the hinge
Usable for wooden, aluminum, and steel doors. Hinge is able to clear baseboards from cladding up to 15.5 mm (5/8 Inch)
Elegant minimalist design with various finishes and no visible screws Tested for a minimum of 200,000 opening cycles Hinges are sold individually (Per Hinge) - Size : 5-1/8 x 1-3/16 x 13/16 Inch (130 x 30 x 21mm)
- Minimum Door Thickness : 1-3/8 Inch (35 mm)
- Range of Reversibility : 1-3/8 - 1-3/4 Inch (35 - 45 mm)
-
Manufacturer Info
- Manufacturer Finish : Nickel Plated
- Manufacturer : Peter Meier
- Manufacturer Part # : C1230NK
-
Other Important Info
- Product Type : 3D Invisible Hinge
- Country of Origin : Italy
- Collection : 1230
- Technology : 3D Concealed Hinge
- Fireproof : 30 Minutes
- Series : 1230
- Material : Zinc
- Product Finish : Nickel
- Load Rating : 110 lbs (2 hinge), 154 lbs (3 hinge)
Manufacturer Resources
