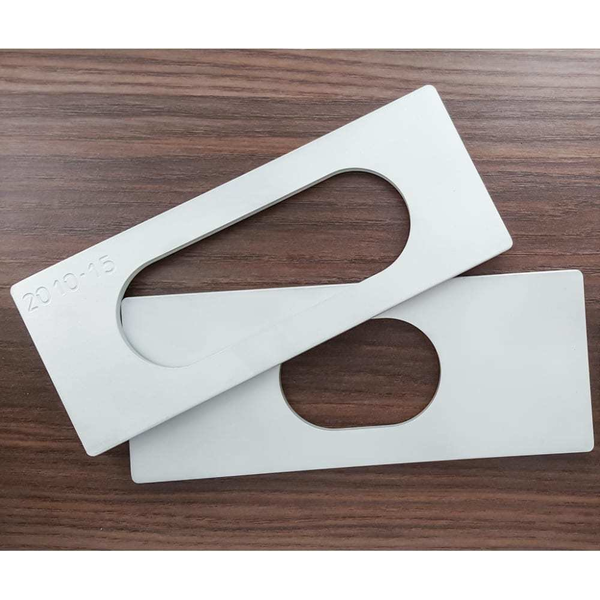

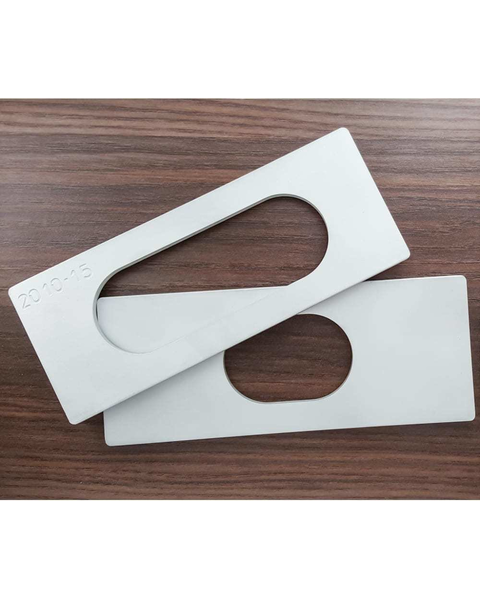

1131 Hinge Template Insert
Rating 4.6 | 7 Reviews | Our Item Number PMI-HI-C1131TEMP
Routing templates are specifically designed for manual pantographs,to easily create the slots for any invisible hinge model, using different inserts.All manual pantographs are made to fit 10mm diameter cutters and 5/8” (16mm) external collet.
$
31.96
$28.76/ea for 3
$51.74
SAVE 38%
Ends Oct 07
Ends Oct 07
Used with Series:
Product Info Material Thickness: 5 mm, Collection: 1131, Series: 1131, Product Finish: Aluminum, See more product details
or
Packs ™Save more! Buy a Pro Pack.
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Material Thickness : 5 mm
- Height : 5-7/8 Inch (149 mm)
- Width : 2-3/8 Inch (60.5 mm)
-
Manufacturer Info
- Manufacturer Finish : Aluminum
- Manufacturer : Peter Meier
- Manufacturer Part # : C1131TEMP
-
Other Important Info
- Product Type : Hinge Template Insert
- Collection : 1131
- Series : 1131
- Product Finish : Aluminum
