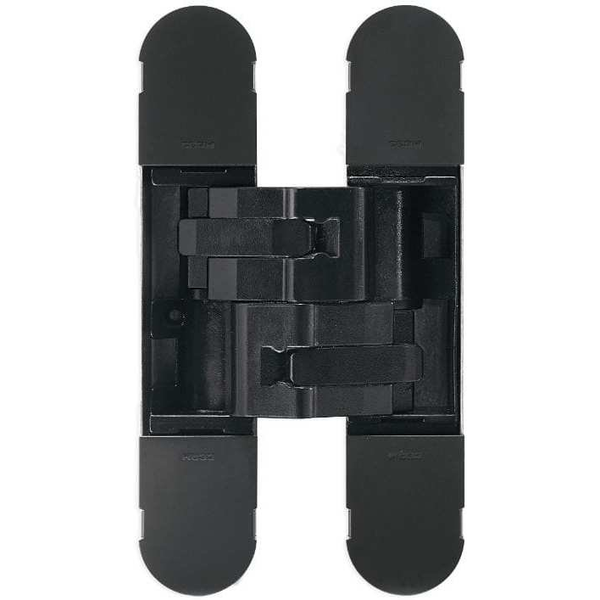

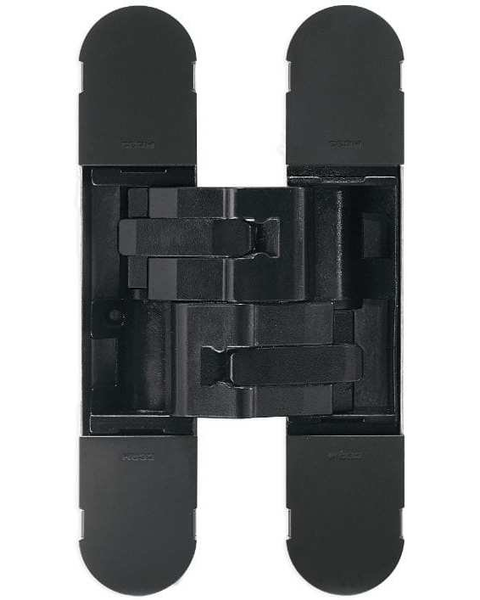

PMI 3-Way Adjustable Invisible Hinge, Door Thickness 1-1/2 Inch to 1-13/16 Inch, Screw Covers Included, 1-1/4 Inch Width x 6-5/16 Inch Length x 1-3/16 Inch Depth, Matte Black
Rating 4.6 | 7 Reviews | Our Item Number PMI-HI-C1131BLK
The PMI 3D hinges come in a variety of finishes to complement any door. The perfect symmetry between the 2 sides of the hinge allows for a complete reversibility. 5 different models are available for you to choose from and are compatible with wooden, aluminum, and steel
$
96.99
$92.14/ea for 3
$138.56
SAVE 30%
Ends Jun 30
Ends Jun 30
Finish: Matte Black
Product Info Country of Origin: Italy, Collection: 1131, Series: 1131, Material: Zinc, Product Finish: Black, See more product details
or
Packs ™Save more! Buy a Pro Pack.
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Key Features : Fluid opening 180 Degrees
Easy adjustable in 3 Dimensional or Fixed
Complete reversibility due to perfect symmetry between the 2 sides of the hinge
Usable for wooden, aluminum, and steel doors. Hinge is able to clear baseboards from cladding up to 15.5 mm (5/8 Inch)
Elegant minimalist design with various finishes and no visible screws Tested for a minimum of 200,000 opening cycles Hinges are sold individually (Per Hinge) - Size : 6-5/16 x 1-1/4 x 3/4 Inch (160 x 32 x 29 mm)
- Minimum Door Thickness : 1-1/2 Inch (38 mm)
- Range of Reversibility : 1-1/2 - 1-13/16 Inch (38 - 46 mm)
-
Manufacturer Info
- Manufacturer : Peter Meier
- Manufacturer Part # : C1131BLK
- Manufacturer Finish : Matte Black
-
Other Important Info
- Product Type : 3D Invisible Hinge
- Country of Origin : Italy
- Collection : 1131
- Technology : 3D Concealed Hinge
- Series : 1131
- Material : Zinc
- Product Finish : Black
- Load Rating : 177 lbs (2 hinge), 265 lbs (3 hinge)
Manufacturer Resources
Hinge Template Insert (Required for Installation)
1131 Hinge Template Insert Hinge Drilling Fixture & Door Wedge (Optional)
1131 / 1230 Hinge Drilling Fixture
Door Wedge for Adjusting Height Other - Invisible Hinges by Peter Meier
-
