1130 / 2010 / 2015 / 1030 Hinge Drilling Fixture
Rating 4.6 | 7 Reviews | Our Item Number PMI-HI-C1130FIX

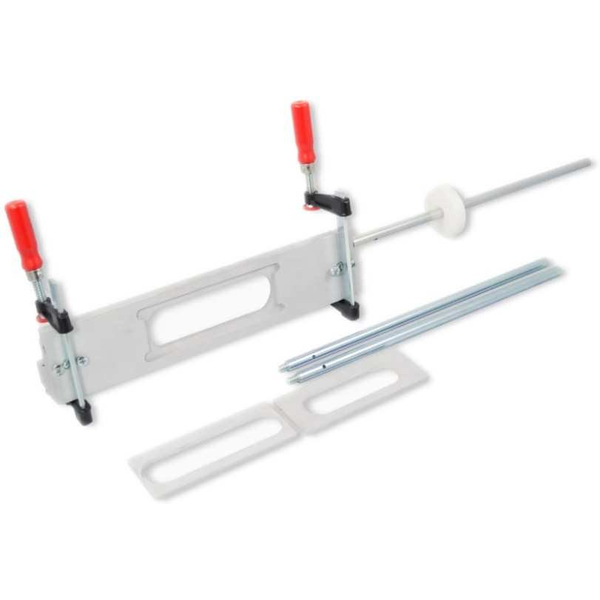

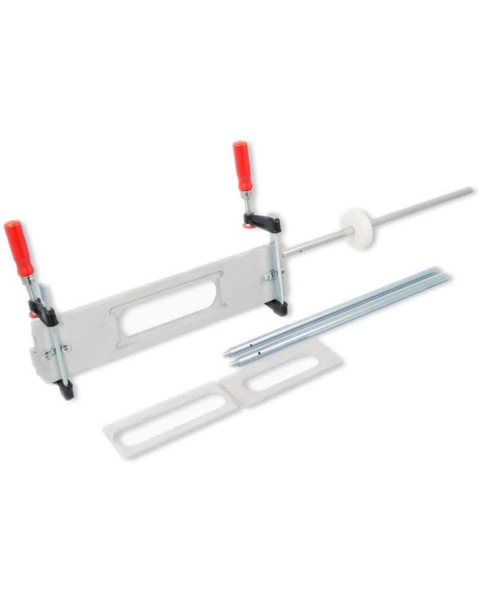

The drilling template, which comprises a frame and 2 insertions,enables the implementation of 2 slots for the invisible hinges and is made of 5 mm thick aluminum plates.The strength of the materials guarantees precise execution of the slots with a manual pantograph.All manual pantographs are made to fit 10mm diameter cutters and 5/8” (16mm) external collet.
$
397.96
$358.16/ea for 3
$644.31
SAVE 38%
Ends Jun 30
Ends Jun 30
Used with Series:
Product Info Size: 349 x 79 mm, Height: 2-3/8 Inch (60 mm), Width: 3-1/8 Inch (79 mm), Collection: 1130, Series: 1130, See more product details
or
Packs ™Save more! Buy a Pro Pack.
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Size : 349 x 79 mm
- Height : 2-3/8 Inch (60 mm)
- Width : 3-1/8 Inch (79 mm)
- Depth : 13-3/4 Inch (349 mm)
-
Manufacturer Info
- Manufacturer : Peter Meier
- Manufacturer Part # : C1130FIX
- Manufacturer Finish : Aluminum
-
Other Important Info
- Product Type : Hinge Routing Fixture
- Collection : 1130
- Series : 1130
- Material : Steel/Aluminum/Plastic
- Product Finish : Aluminum
