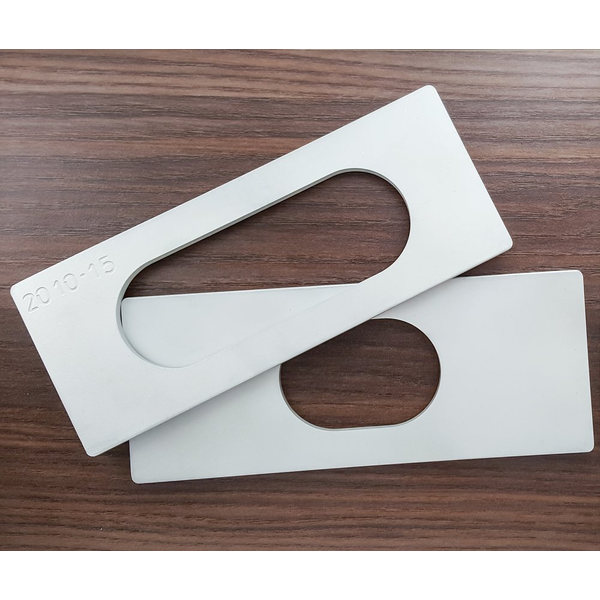

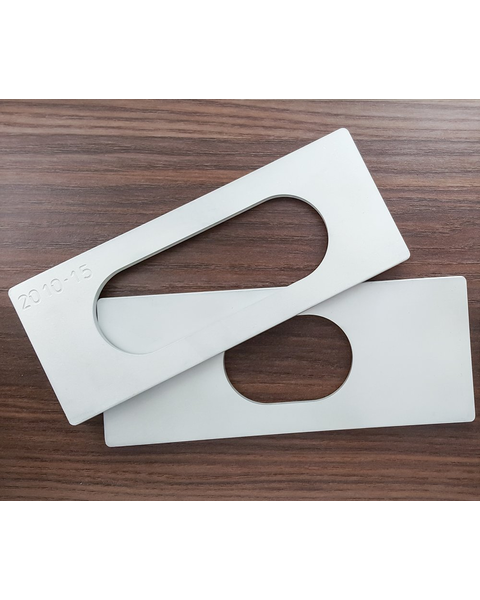

1430 Hinge Template Insert
Rating 4.6 | 7 Reviews | Our Item Number PMI-C1430TEMP
$
37.49 Each
$35.62/ea for 3
$53.56
SAVE 30%
Ends Sep 01
Ends Sep 01
Used with Series:
Product Info Depth: 3/16 Inch (5 mm), Thickness: 5 mm, Model Number: 1430, Product Finish: Aluminum, Weight: 0.35 lbs, See more product details
or
Packs ™Save more! Buy a Pro Pack.
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Width : 2-3/8 Inch (60.5 mm)
- Depth : 3/16 Inch (5 mm)
- Height : 7-1/8 Inch (181 mm)
- Thickness : 5 mm
- Routing Bushing Size : 5/8" Routing bushing with 10mm router bit or optional 51/64" router bushing with 9/16" router bit
-
Manufacturer Info
- Manufacturer : Peter Meier
- Manufacturer Part # : C1430TEMP
- Manufacturer Finish : Aluminum
-
Other Important Info
- Product Type : Hinge Template Insert
- Model Number : 1430
- Product Finish : Aluminum
- Configuration : for 1430 Hinge
- Weight : 0.35 lbs
- Compatible with : 1430 Invisible hinge and C1130FIX Routing Fixture
- Series : 1430
