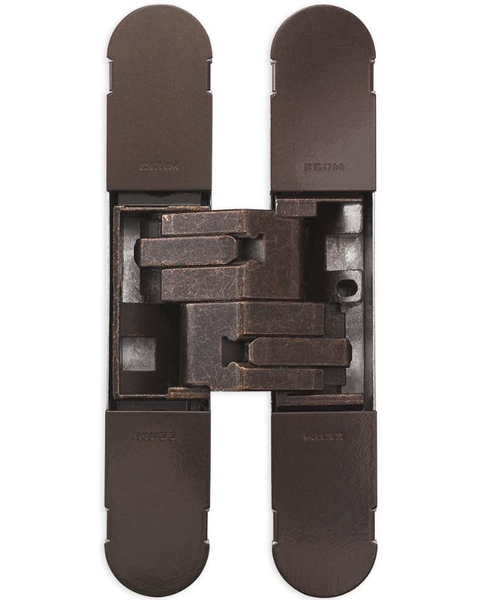

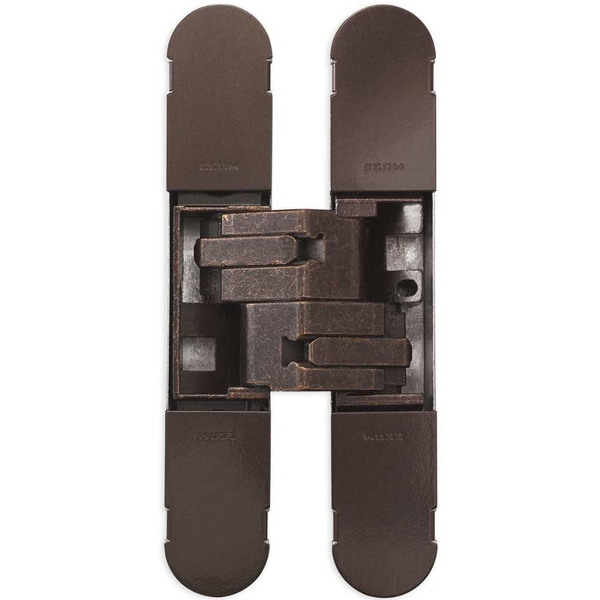

1130 Series 3D 5-1/4 x 15/16 x 13/16 Inch Invisible Hinge, Brushed Bronze
Product Discontinuation AlertThis item has left our catalog. It's either upgraded to a newer model, didn't meet our high customer satisfaction standards, or the manufacturer said goodbye. But don't worry, CabinetParts is always here with top-notch alternatives.See Newer Models
All the product info you could ask for...
-
Size Info
- Key Features : Fluid opening 180 Degrees
Easy adjustable in 3 Dimensional or Fixed
Complete reversibility due to perfect symmetry between the 2 sides of the hinge
Usable for wooden, aluminum and steel doors.
Elegant minimalist design with various finishes and no visible screws
Tested for a minimum of 200,000 opening cycles
Hinges are sold individually (Per Hinge) - Size : 5-1/4 x 15/16 x 13/16 Inch (134 x 24 x 21 mm)
- Minimum Door Thickness : 1-3/16 Inch (30 mm)\
- Range of Reversibility : 1-3/16 - 1-5/16 Inch
-
Manufacturer Info
- Manufacturer : Peter Meier
- Manufacturer Part # : C1130BBR
- Manufacturer Finish : Brushed Bronze
-
Other Important Info
- Product Type : 3D Invisible Hinge
- Country of Origin : Italy
- Collection : 1130
- Technology : 3D Concealed Hinge
- Fireproof : 30 Minutes
- Series : 1130
- Material : Stainless Steel
- Product Finish : Bronze
- Load Rating : 95 lbs (2 hinge), 143 lbs (3 hinge)
